Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

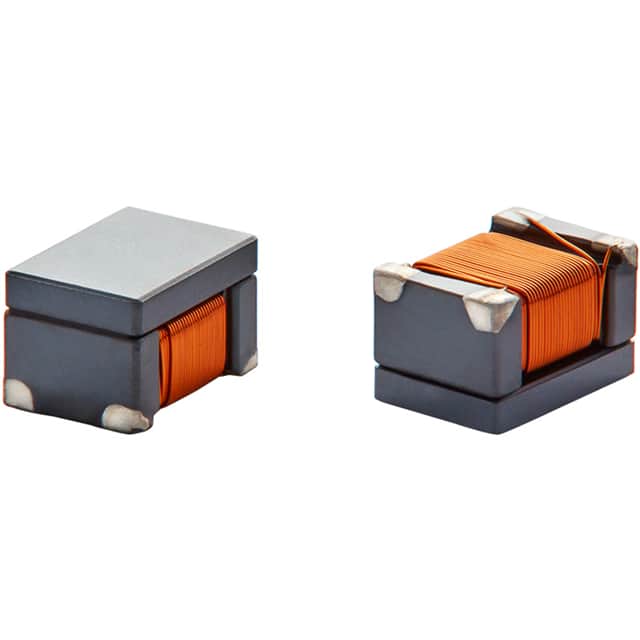

SPDL3225-101-2P-TCMC 100UH 150MA 2LN 5.1KOHM SMD |
940 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 5.1 kOhms @ 10 MHz | 100 µH @ 100 kHz | 150mA | 1.5Ohm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
SU7VC-07006CMC 600UH 700MA 2LN TH |
1,066 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 600 µH @ 1 kHz | 700mA | 360mOhm | - | 125V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SU7VC-08004CMC 350UH 800MA 2LN TH |
506 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 350 µH @ 1 kHz | 800mA | 220mOhm | - | 125V | -25°C ~ 120°C | - | - | - | - | - |
|
B82730G3102A020CMC 1.8MH 1A 2LN TH |
1,393 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.8 mH @ 10 kHz | 1A | 340mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
SSR10H-04910CMC 91MH 400MA 2LN TH |
315 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 91 mH @ 10 kHz | 400mA | 2.8Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSR10VS-08180CMC 18MH 800MA 2LN TH |
300 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 18 mH @ 10 kHz | 800mA | 600mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR10VS-07265CMC 26.5MH 700MA 2LN TH |
296 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 26.5 mH @ 10 kHz | 700mA | 850mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSR10H-05595CMC 59.5MH 500MA 2LN TH |
291 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 59.5 mH @ 10 kHz | 500mA | 1.7Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR10VS-22026CMC 2.6MH 2.2A 2LN TH |
277 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 2.6 mH @ 10 kHz | 2.2A | 100mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SPDL4532-510-2P-TCMC 51UH 230MA 2LN 2.8KOHM SMD |
105 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 2.8 kOhms @ 10 MHz | 51 µH @ 100 kHz | 230mA | 1Ohm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
SPDL4532-220-2P-TCMC 22UH 310MA 2LN 1.2KOHM SMD |
213 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1.2 kOhms @ 10 MHz | 22 µH @ 100 kHz | 310mA | 1Ohm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
SPDL4532-110-2P-TCMC 11UH 360MA 2LN 600OHM SMD |
169 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 600 Ohms @ 10 MHz | 11 µH @ 100 kHz | 360mA | 600mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
SPDL4532-101-2P-TCMC 100UH 200MA 2LN 5.8KOHM SMD |
125 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 5.8 kOhms @ 10 MHz | 100 µH @ 100 kHz | 200mA | 2Ohm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
B82730G3601A020CMC 4.7MH 600MA 2LN TH |
1,408 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 4.7 mH @ 10 kHz | 600mA | 920mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
SSHB10H-R04760CMC 76MH 400MA 2LN TH |
295 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 76 mH @ 10 kHz | 400mA | 2.7Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSHB10H-R30017CMC 1.7MH 3A 2LN TH |
120 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 1.7 mH @ 10 kHz | 3A | 70mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSHB10HS-R08160CMC 16MH 800MA 2LN TH |
119 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 16 mH @ 10 kHz | 800mA | 580mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSHB10H-R08194CMC 19.4MH 800MA 2LN TH |
110 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 19.4 mH @ 10 kHz | 800mA | 640mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSHB10H-R13088CMC 8.8MH 1.3A 2LN TH |
107 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 8.8 mH @ 10 kHz | 1.3A | 280mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
DR331-474AECMC 470UH 500MA 2LN SMD |
3,641 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | - | 470 µH @ 100 kHz | 500mA | 280mOhm | 80V | 42V | -40°C ~ 135°C | - | - | - | - | - |
