Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
784231061CMC 400MA 2LN 67OHM SMD AEC-Q200 |
1,947 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 67 Ohms @ 100 MHz | - | 400mA | 250mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
784231181CMC 330MA 2LN 180OHM SMD AECQ200 |
1,519 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 180 Ohms @ 100 MHz | - | 330mA | 350mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
784231261CMC 300MA 2LN 260OHM SMD AECQ200 |
1,080 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 260 Ohms @ 100 MHz | - | 300mA | 400mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
FB20021-4B-RCCMC 2LN 460 OHM TH |
1,828 |
|
Datasheet |
Axial - 4 Leads | - | 2 | 460 Ohms @ 100 MHz | - | - | - | - | - | - | - | - | - | - | - |
|
2744065446CMC 2LN 255 OHM SMD |
4,639 |
|
Datasheet |
- | Signal Line | 2 | 255 Ohms @ 100 MHz | - | - | - | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
UU9LFNP-B682CMC 6.8MH 250MA 2LN TH |
2,840 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 1 kHz | 250mA | 2.5Ohm | - | - | - | - | - | - | - | - |
|
LCF201204A101TGCMC 100MA 4LN 100 OHM SMD |
2,619 |
|
Datasheet |
0805 (2012 Metric), 8 Lead | Signal Line | 4 | 100 Ohms @ 100 MHz | - | 100mA | 4Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
CM1812B513R-1ACMC 51UH 230MA 2LN 2.8KOHM SMD |
9,847 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 2.8 kOhms @ 10 MHz | 51 µH @ 100 kHz | 230mA | 1Ohm | 50V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
PCMF3HDMI2BA-CZCMC 2LN SMD ESD |
3,503 |
|
Datasheet |
15-UFBGA, WLCSP | Signal Line | 2 | - | - | - | 2.2Ohm (Typ) | - | - | -40°C ~ 125°C | - | - | TVS Diode ESD Protection | - | - |
|

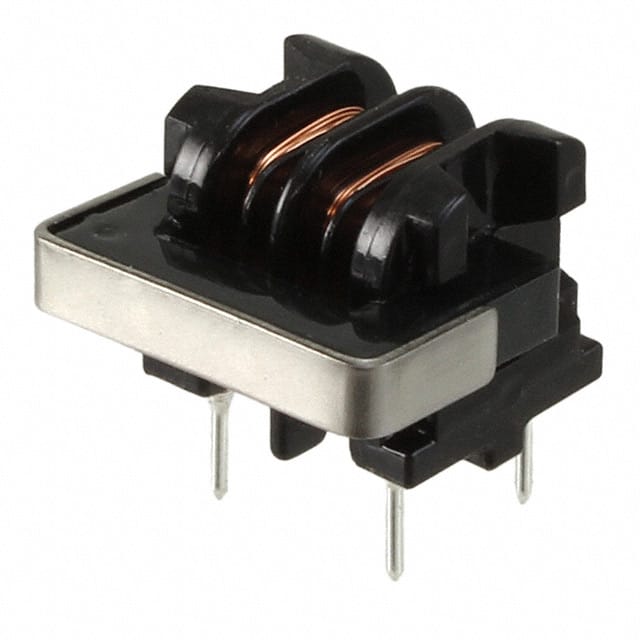

SU9HF-01250CMC 25MH 100MA 2LN TH |
270 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 25 mH @ 1 kHz | 100mA | 9Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
ACMS-Q3225C-101-TCMC 100UH 150MA 2LN 4KOHM SMD |
3,980 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 4 kOhms @ 10 MHz | 100 µH @ 100 kHz | 150mA | 2.2Ohm | 80V | - | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
ACMS-Q4523E-201-TCMC 200UH 110MA 2LN SMD AEC-Q200 |
3,950 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 200 µH @ 100 kHz | 110mA | 4.5Ohm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
ACMS-Q4523F-101-TCMC 100UH 200MA 2LN SMD AEC-Q200 |
3,934 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 100 µH @ 100 kHz | 200mA | 2Ohm | 50V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SU9HF-07015CMC 1.5MH 700MA 2LN TH |
775 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 1 kHz | 700mA | 440mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SU9HD-40008CMC 7.98UH 4A 2LN TH |
843 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 7.98 µH @ 1 kHz | 4A | 31.25mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SHO-102CMC 4A 2LN TH |
219 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 0.6 µH @ 100 kHz | 4A | 10mOhm | 50V | - | -25°C ~ 70°C | - | - | - | - | - |
|
AWCU00453226513TT2CMC 51UH 200MA 2LN SMD AEC-Q200 |
12,425 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 2.8 kOhms @ 10 MHz | 51 µH @ 100 kHz | 200mA | 1Ohm | 50V | - | -50°C ~ 150°C | - | - | - | Automotive | AEC-Q200 |
|
|
ACMS-Q3225E-201-TCMC 200UH 70MA 2LN SMD AEC-Q200 |
3,580 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 200 µH @ 100 kHz | 70mA | 4Ohm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
AWCU00453226113TT2CMC 11UH 250MA 2LN SMD AEC-Q200 |
3,315 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 600 Ohms @ 10 MHz | 11 µH @ 100 kHz | 250mA | 600mOhm | 50V | - | -50°C ~ 150°C | - | - | - | Automotive | AEC-Q200 |
|
|
AWCU00453226513TM2CMC 51UH 230MA 2LN SMD AEC-Q200 |
2,108 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 51 µH @ 1 MHz | 230mA | 1Ohm | 50V | - | -50°C ~ 150°C | - | - | - | Automotive | AEC-Q200 |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
