Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCT19XV-300-1R9A003JVCMC 33UH 30A 2LN TH AEC-Q200 |
392 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 33 µH @ 100 kHz | 30A | 0.747mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCT19XV-300-1R9A003JHCMC 33UH 30A 2LN TH AEC-Q200 |
150 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 33 µH @ 100 kHz | 30A | 0.767mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCF12-025-1100JCMC 11.9MH 2.5A 2LN TH |
1,080 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 11.9 mH @ 10 kHz | 2.5A | 82.6mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SCF19XV-150-1R3A006JHCMC 440UH 15A 2LN TH AEC-Q200 |
144 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 440 µH @ 100 kHz | 15A | 3.01mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF19XV-220-1R6A004JHCMC 200UH 22A 2LN TH AEC-Q200 |
119 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 200 µH @ 100 kHz | 22A | 1.43mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

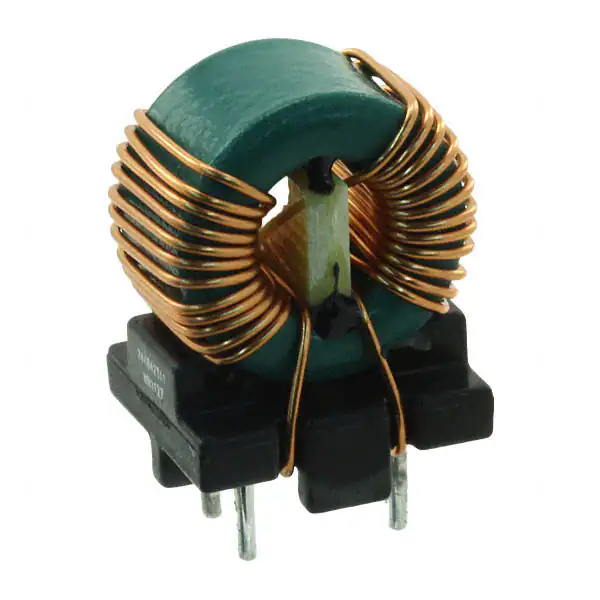

744842311CMC 110UH 3A 2LN TH |
960 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 110 µH @ 100 kHz | 3A | 34.1mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
CMX1211Z601B-10CMC 620UH 20A 2LN SMD |
528 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 620 µH @ 100 kHz | 20A | 3.5mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
8115-RCCMC 1.2MH 16A 2LN TH |
1,032 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 1.2 mH @ 1 kHz | 16A | 6mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

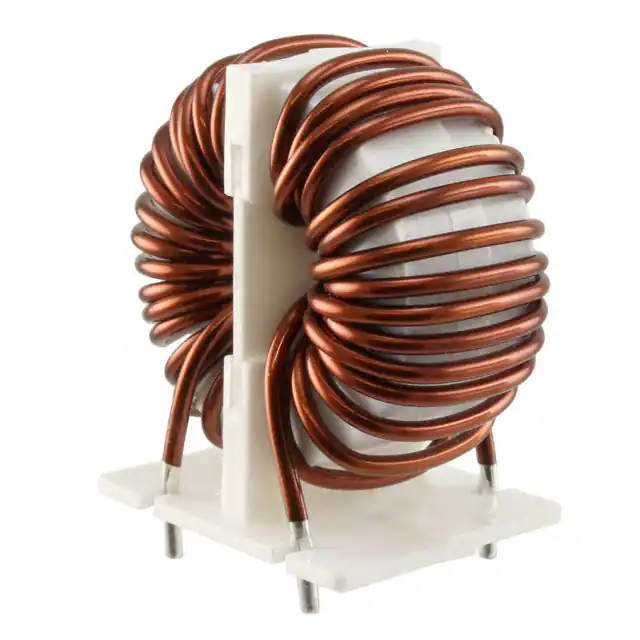

SC-15-10JCMC 1MH 15A 2LN TH |
394 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 15A | 12mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
T60405R6126X216CMC 1.28MH 16A 2LN 1.3K OHM TH |
2,456 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | 1.3 kOhms @ 100 kHz | 1.28 mH @ 100 kHz | 16A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
|

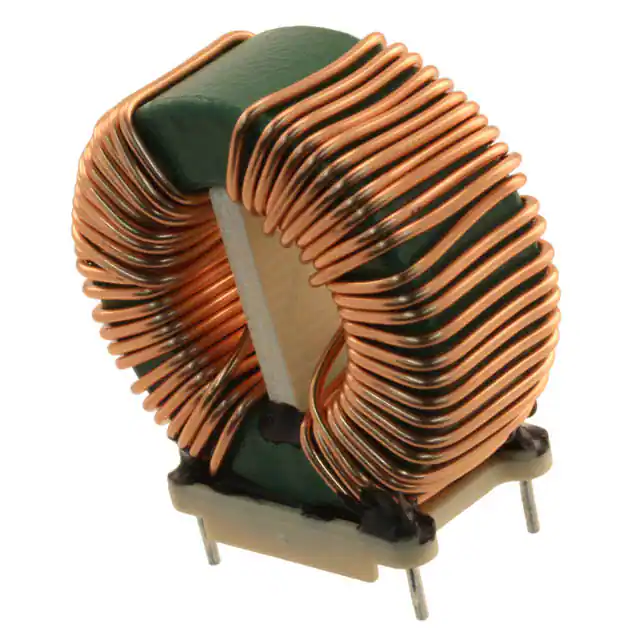

CMT-8118CMC 7.3MH 9.3A 2LN TH ESD |
1,776 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 7.3 mH @ 1 kHz | 9.3A | 32mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|
CMT908-H3CMC 8MH 3.2A 2LN TH ESD |
411 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 8 mH @ 10 kHz | 3.2A | 120mOhm | - | 250V | -40°C ~ 125°C | - | CSA, IEC, UL, VDE | - | - | - |
|
PL8209NLCMC 1.63A 2LN SMD |
170 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 1.63A | 110mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
7448011008CMC 8MH 1A 2LN TH |
224 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 8 mH @ 10 kHz | 1A | 330mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7448010911CMC 11MH 900MA 2LN TH |
138 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 11 mH @ 10 kHz | 900mA | 430mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
PH9408.644NLTCMC 19A 2LN 2.5K OHM SMD |
585 |
|
Datasheet |
Nonstandard | - | 2 | 2.5 kOhms @ 1.2 MHz | - | 19A | 5.6mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PH9408.164NLTCMC 36A 2LN 400 OHM SMD |
427 |
|
Datasheet |
Nonstandard | - | 2 | 400 Ohms @ 1.76 MHz | - | 36A | 1.3mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
CMC-08CMC 5.2A 2LN TH |
736 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 5.2A | 31mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
|
B82726E6263A040CMC 600UH 26A 2LN TH |
1,148 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 600 µH @ 100 kHz | 26A | 1.7mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | UR | - | - | - |
|
SCF19XV-080-1R0A011JVCMC 1.5MH 8A 2LN TH AEC-Q200 |
609 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 100 kHz | 8A | 8.7mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
