Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC-02-20GJCMC 2MH 2A 2LN TH |
895 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 2A | 80mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
B82724J8252N040CMC 22MH 2.5A 2LN TH |
108 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 22 mH @ 10 kHz | 2.5A | 135mOhm (Typ) | 800V | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
PE-67540NLTCMC 4LN SMD |
1,288 |
|
Datasheet |
Vertical, 8 Gull Wing | Signal Line | 4 | - | - | - | 600mOhm | - | - | - | - | - | - | - | - |
|
RN142-2-02-6M8CMC 6.8MH 2A 2LN TH |
164 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 2A | 192mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
PA5140.105NLTCMC 21A 2LN 820 OHM SMD |
910 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 820 Ohms @ 3.3 MHz | - | 21A | 2.2mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
SC-05-1100CMC 11MH 5A 2LN TH |
105 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 11 mH @ 10 kHz | 5A | 55mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
7108-RCCMC 1.7MH 2A 2LN TH |
489 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | - | 2 | - | 1.7 mH @ 1 kHz | 2A | 60mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
B82724J8482N040CMC 4.7MH 4.8A 2LN TH |
480 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4.7 mH @ 10 kHz | 4.8A | 32mOhm (Typ) | 800V | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

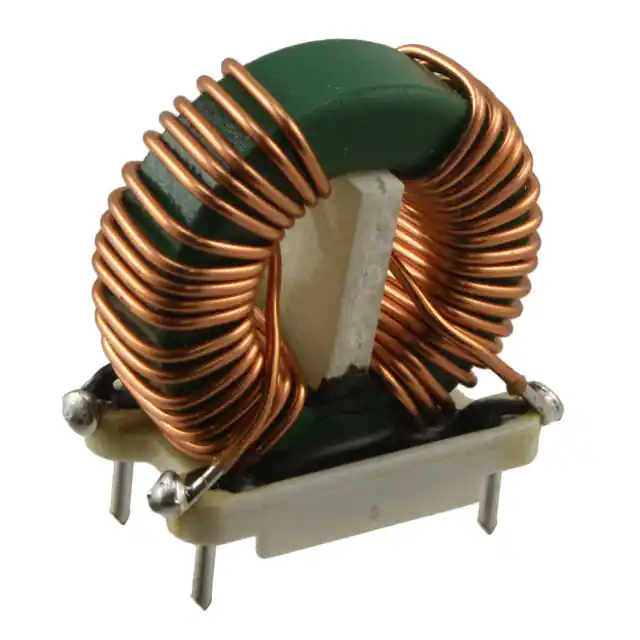

CMT-8107CMC 2MH 6.6A 2LN TH ESD |
1,406 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 1 kHz | 6.6A | 22mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|
|
B82724J8612N040CMC 1.5MH 6.1A 2LN TH |
240 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 10 kHz | 6.1A | 14mOhm (Typ) | 800V | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
RN143-1-02-47MCMC 47MH 1A 2LN TH |
119 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 47 mH @ 10 kHz | 1A | 890mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|

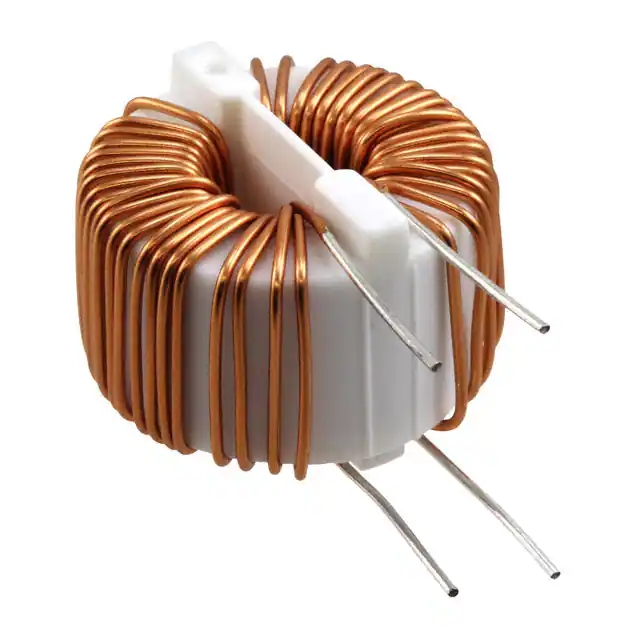

SC-05-200CMC 2MH 5A 2LN TH |
187 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 5A | 70mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SC-20-05J-PCMC 487.5UH 20A 2LN TH |
156 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 487.5 µH @ 100 kHz | 20A | 3.6mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
ST-104A4CMC 500MA 4LN 3K OHM TH |
236 |
|
Datasheet |
Horizontal, 8 PC Pin | - | 4 | 3 kOhms @ 500 kHz | - | 500mA | 360mOhm | 50V | - | -20°C ~ 75°C | - | - | - | - | - |
|
PLT-01CMC 7.5UH 300MA 2LN TH |
929 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 7.5 µH @ 100 kHz | 300mA | 55mOhm | - | 264V | -25°C ~ 100°C | - | UL | - | - | - |
|

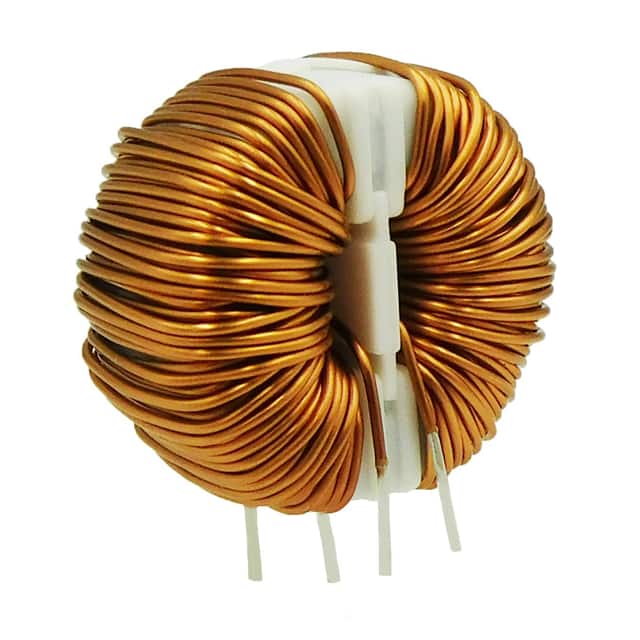

LPTC-V-25.5-4-130CMC 25.5MH 4A 2LN TH |
452 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 25.5 mH @ 1 kHz | 4A | 130mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
B82724J8532N040CMC 3.3MH 2LN TH |
2,308 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | - | 26mOhm (Typ) | 800V | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
M-538CTCMC 100MA 3LN 800 OHM SMD |
2,272 |
|
Datasheet |
Vertical, 6 Gull Wing | Signal Line | 3 | 800 Ohms @ 100 MHz | - | 100mA | 220mOhm | 50V | - | -25°C ~ 70°C | - | - | - | - | - |
|

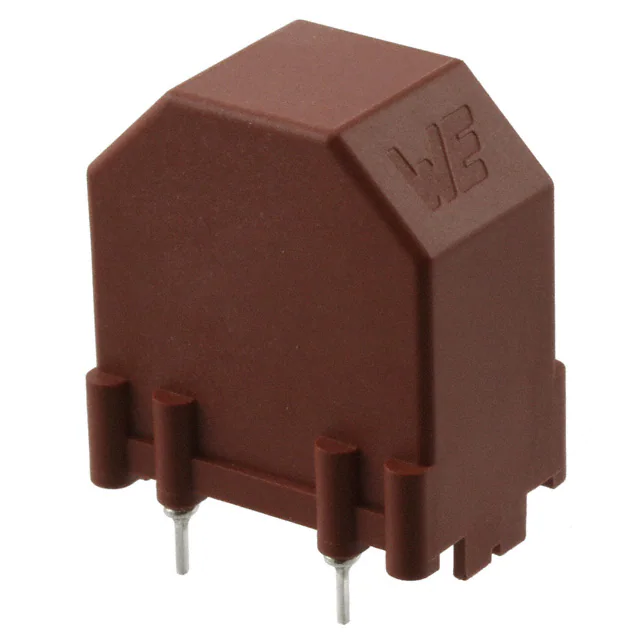

7446321027CMC 27MH 1A 2LN TH |
132 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 1A | 640mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

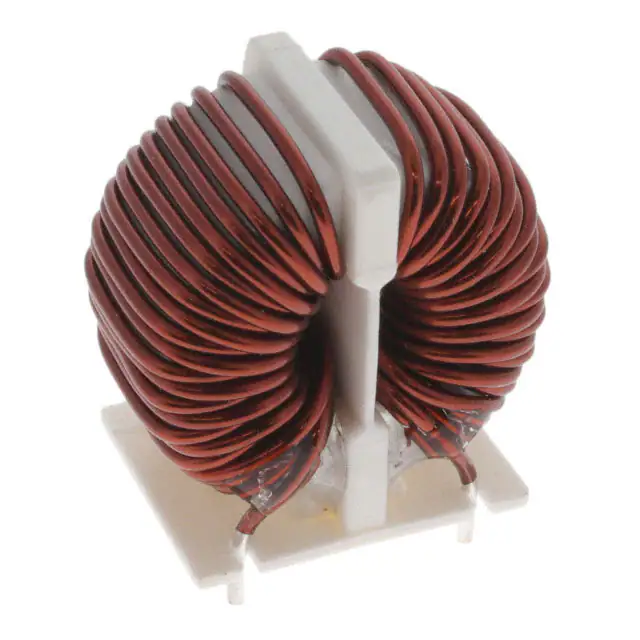

SC-08-44JCMC 4.4MH 8A 2LN TH |
174 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4.4 mH @ 100 kHz | 8A | 25mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
