Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCF19XV-150-1R3A006JVCMC 440UH 15A 2LN TH AEC-Q200 |
214 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 440 µH @ 100 kHz | 15A | 2.91mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

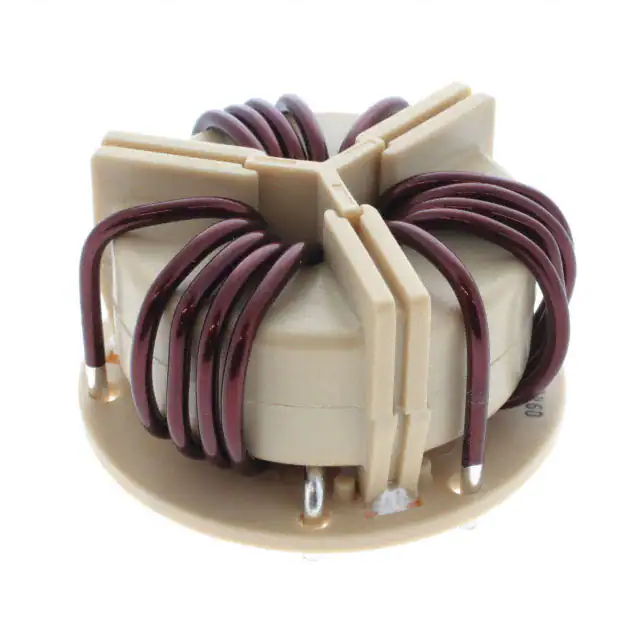

SC-07-S045JHCMC 441UH 7A 3LN TH |
211 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 441 µH @ 10 kHz | 7A | 13mOhm | 500V | 500V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-15-20JHCMC 2MH 15A 2LN TH |
195 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 15A | 12mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
IHCM2321AAEG481N10CMC 480UH 8A 2LN 1.2K OHM SMD |
990 |
|
Datasheet |
Horizontal, 4 Flat Lead | Power Line | 2 | 1.2 kOhms @ 10 MHz | 480 µH @ 100 kHz | 8A | 12.5mOhm | - | - | -40°C ~ 155°C | - | - | - | - | - |
|

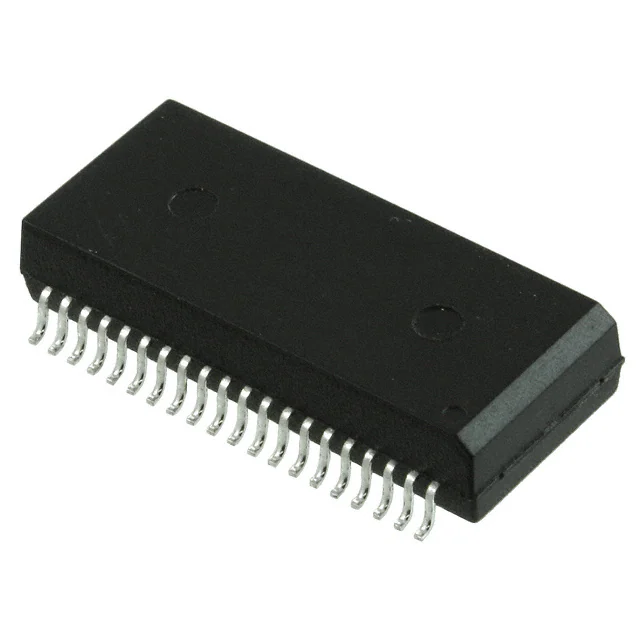

T8008NLCMC 16LN SMD |
130 |
|
Datasheet |
- | Signal Line | 16 | - | - | - | 400mOhm | - | - | - | - | - | - | - | - |
|
B82726S2203A020CMC 1.6MH 20A 2LN TH |
285 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.6 mH @ 10 kHz | 20A | 4.5mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
CMT908-H1CMC 2MH 7.5A 2LN TH ESD |
209 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2 mH @ 10 kHz | 7.5A | 20mOhm | - | 250V | - | - | - | - | - | - |
|
RT8122-6-10M0CMC 10MH 6A 2LN TH |
168 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 100 kHz | 6A | 33mOhm (Typ) | 425V | 300V | -40°C ~ 100°C | - | - | - | - | - |
|
SCR38-350-1R8B008JHCMC 850UH 35A 2LN TH |
457 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 850 µH @ 10 kHz | 35A | 2.5mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

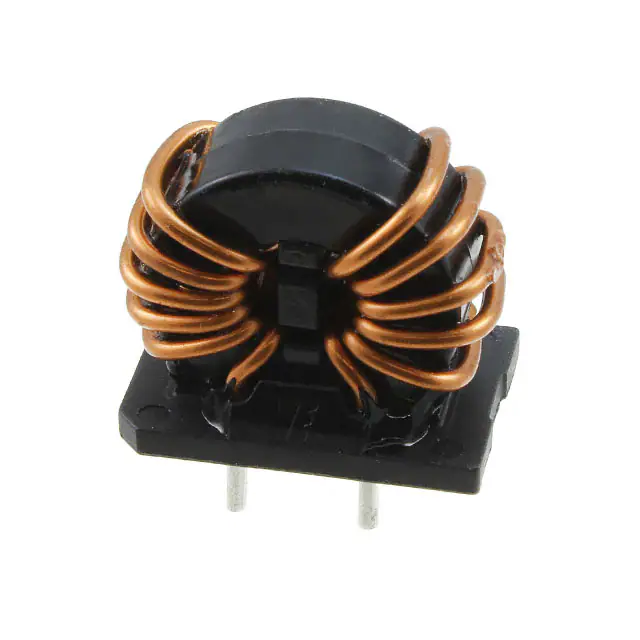

7448041801CMC 1.5MH 18A 2LN TH |
228 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 10 kHz | 18A | 3.2mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

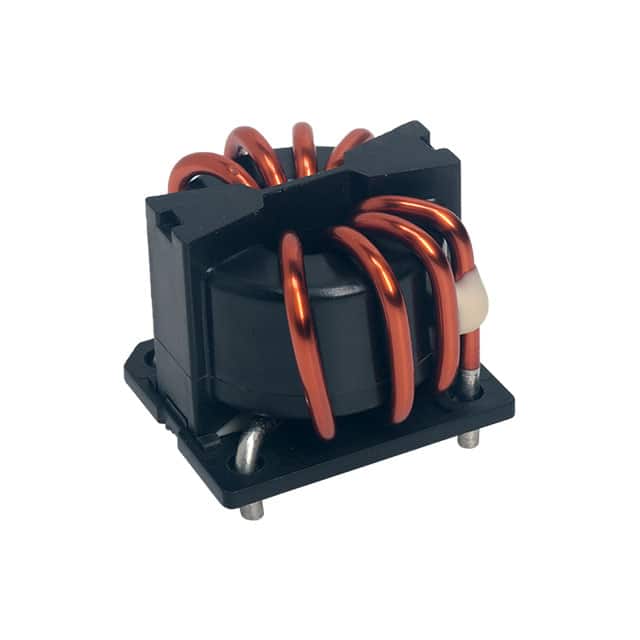

SCR25XV-170-1R7A009JHCMC 1MH 17A 2LN TH AEC-Q200 |
152 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 17A | 3.83mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|

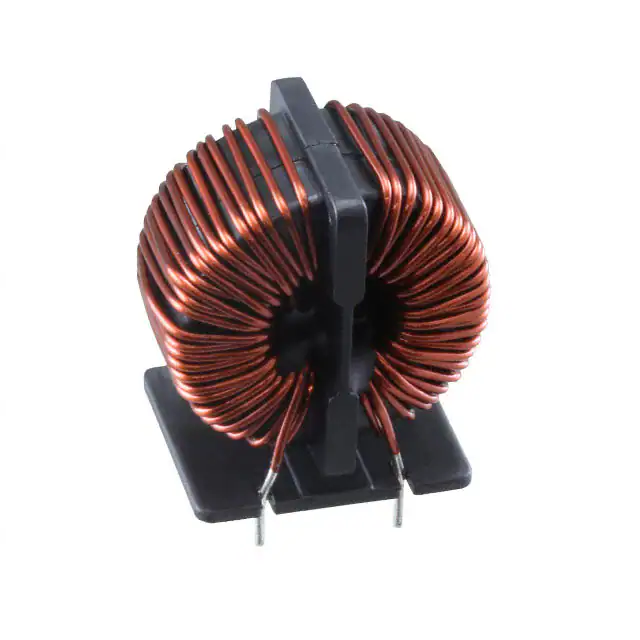

RT8522-12-5M0CMC 5MH 12A 2LN TH |
322 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 100 kHz | 12A | 14mOhm (Typ) | 425V | 300V | -40°C ~ 100°C | - | - | - | - | - |
|

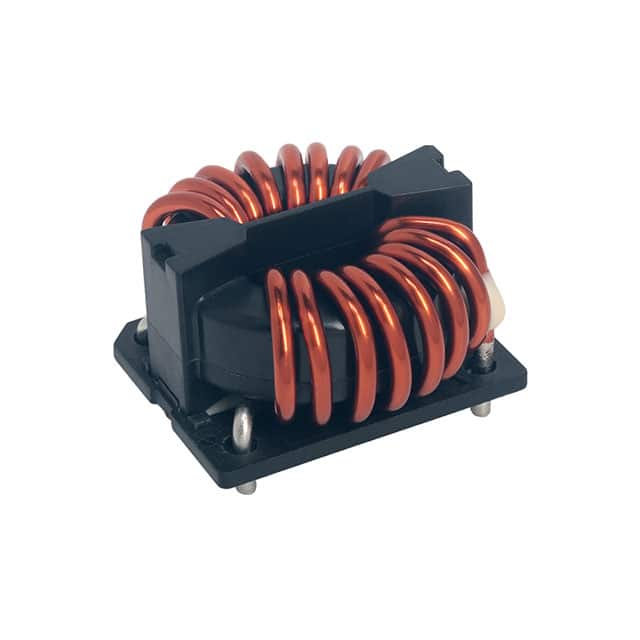

SCR29XV-200-2R0A011JHCMC 740UH 20A 2LN TH AEC-Q200 |
230 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 740 µH @ 100 kHz | 20A | 2.84mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|

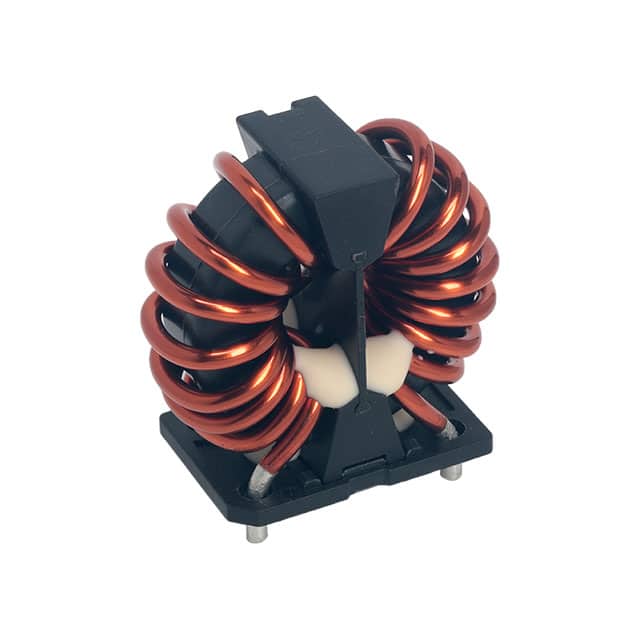

SCR29XV-050-1R0A044JVCMC 11.8MH 5A 2LN TH AEC-Q200 |
101 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 11.8 mH @ 100 kHz | 5A | 40.3mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR29XV-070-1R2A030JVCMC 5.5MH 7A 2LN TH AEC-Q200 |
115 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5.5 mH @ 100 kHz | 7A | 19.2mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
CM6296R-503CMC 50UH 10A 2LN SMD |
304 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 50 µH @ 1 kHz | 10A | 14mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
SC-30-100CMC 1MH 30A 2LN TH |
677 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 30A | 6mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SCF25XV-310-2R3A004JVCMC 400UH 31A 2LN TH AEC-Q200 |
306 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 400 µH @ 100 kHz | 31A | 0.95mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF25XV-070-1R1A022JVCMC 11.8MH 7A 2LN TH AEC-Q200 |
130 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 11.8 mH @ 100 kHz | 7A | 20.83mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

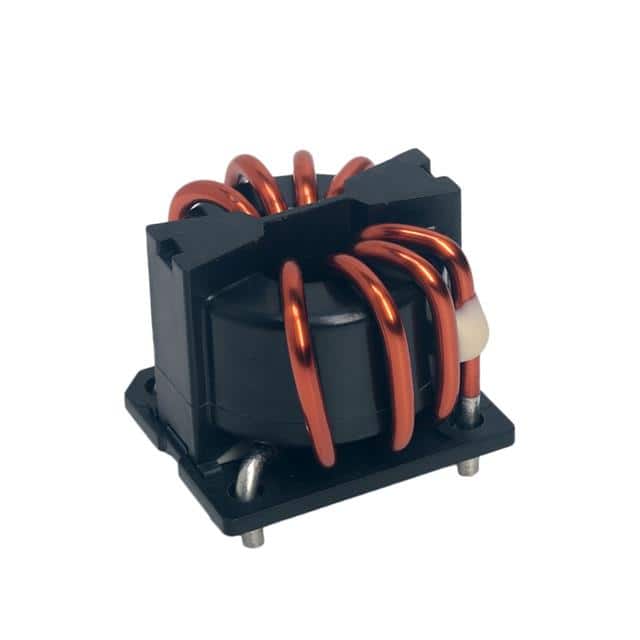

SCF25XV-220-1R9A007JHCMC 1.2MH 22A 2LN TH AEC-Q200 |
125 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.2 mH @ 100 kHz | 22A | 2.45mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
