Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCF25XV-100-1R3A016JVCMC 6.3MH 10A 2LN TH AEC-Q200 |
103 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6.3 mH @ 100 kHz | 10A | 10.91mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCF25XV-240-2R0A006JHCMC 900UH 24A 2LN TH AEC-Q200 |
120 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 900 µH @ 100 kHz | 24A | 1.92mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
B82726E6283B040CMC 1MH 28A 2LN TH |
140 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 28A | 2.1mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | UR | - | - | - |
|

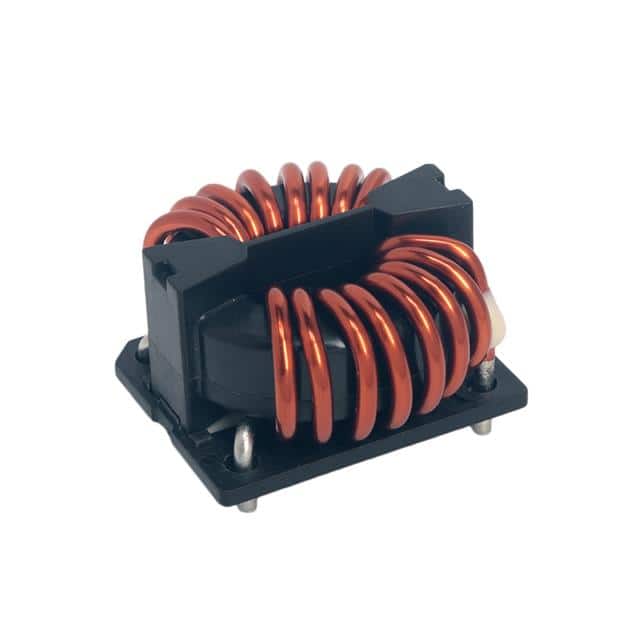

SCF29XV-250-2R2A008JHCMC 700UH 25A 2LN TH AEC-Q200 |
239 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 700 µH @ 100 kHz | 25A | 1.68mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF29XV-050-1R0A044JHCMC 21.2MH 5A 2LN TH AEC-Q200 |
223 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 21.2 mH @ 100 kHz | 5A | 39.9mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF29XV-300-2R4A005JHCMC 270UH 30A 2LN TH AEC-Q200 |
143 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 270 µH @ 100 kHz | 30A | 0.92mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCF29XV-050-1R0A044JVCMC 21.2MH 5A 2LN TH AEC-Q200 |
104 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 21.2 mH @ 100 kHz | 5A | 40.3mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
B82747E6353A040CMC 570UH 35A 3LN TH |
270 |
|
Datasheet |
Vertical, 6 PC Pin | Power Line | 3 | - | 570 µH @ 100 kHz | 35A | 1.4mOhm (Typ) | - | 440/250V | -40°C ~ 125°C | - | UR | - | - | - |
|
B82747S4303A041CMC 820UH 35A 3LN TH |
112 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 820 µH @ 100 kHz | 35A | 1.4mOhm (Typ) | - | 440/250V | -40°C ~ 125°C | - | UR | - | - | - |
|
|
B82726E6203B041CMC 2.7MH 20A 2LN TH |
336 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.7 mH @ 10 kHz | 20A | 4.4mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | UR | - | - | - |
|
CM6350R-335CMC 3.3MH 400MA 2LN SMD |
790 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 3.3 mH @ 10 kHz | 400mA | 550mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

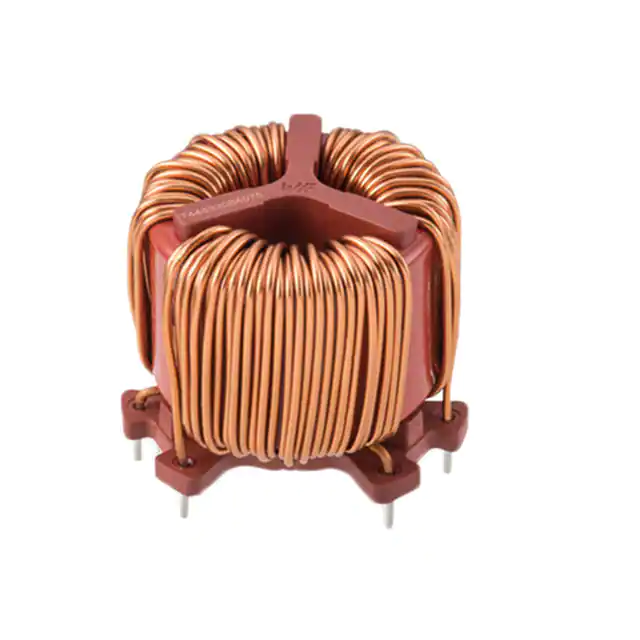

744833011180CMC 1.1MH 18A 3LN TH |
135 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 3 | - | 1.1 mH @ 10 kHz | 18A | 7mOhm | - | 500V | -40°C ~ 125°C | - | - | - | - | - |
|
SC-20-400CMC 4MH 20A 2LN TH |
132 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 4 mH @ 1 kHz | 20A | 13mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
CM6460R-505CMC 5MH 700MA 2LN SMD |
162 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 5 mH @ 10 kHz | 700mA | 320mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
CM6560R-184CMC 180UH 7A 2LN SMD |
8,878 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 180 µH @ 10 kHz | 7A | 7mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
CM6560R-754CMC 750UH 3A 2LN SMD |
253 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 750 µH @ 10 kHz | 3A | 34mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

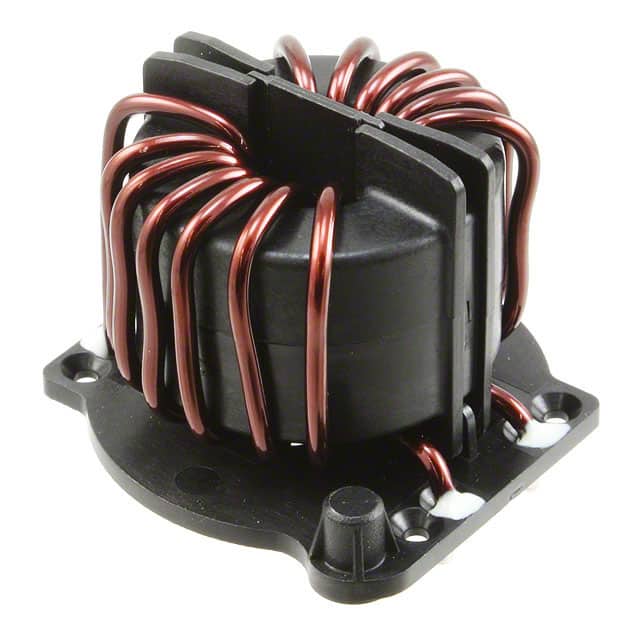

RB6122-16-1M0CMC 1MH 16A 2LN TH |
173 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 400 Hz | 16A | 4.8mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | - | - |
|
RD5132-10-3M0CMC 3MH 10A 3LN TH |
709 |
|
Datasheet |
- | Power Line | 3 | - | 3 mH @ 400 Hz | 10A (Typ) | 17.6mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
|
CM6460-504CMC 500UH 3.3A 2LN SMD |
1,804 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 500 µH @ 10 kHz | 3.3A | 24mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
SCF27-15-700CMC 7MH 15A 2LN TH |
197 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 7 mH @ 100 kHz | 15A | 5mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
