Common Mode Chokes

Mfr. Part #	Availability	Quantity	Datasheet	Package/Case	Filter Type	Number of Lines	Impedance @ Frequency	Current Rating (Max)	DC Resistance (DCR) (Max)	Voltage Rating - DC	Voltage Rating - AC	Operating Temperature	Ratings	Approval Agency	Features	Mounting Type	Size / Dimension	Height (Max)
SC-08-100 CMC 3MH 8A 2LN TH KEMET	165	RFQ	Datasheet	Horizontal, No Base, 4 PC Pin	Power Line	2	-	3 mH @ 100 kHz	8A	25mOhm	250V	250V	-40°C ~ 105°C	-	-	-	-	-
SCR-150-1R4A006J-P CMC 600UH 15A 2LN TH KEMET	238	RFQ	Datasheet	Vertical, 4 PC Pin	Power Line	2	-	600 µH @ 10 kHz	15A	5.3mOhm	250V	250V	25°C ~ 120°C	-	-	-	-	-
CMS3-5-R CMC 146UH 3.1A 2LN SMD Eaton - Electronics Division	1,883	RFQ	Datasheet	Horizontal, 4 PC Pad	Power Line	2	-	146 µH @ 100 kHz	3.1A	17mOhm (Typ)	-	-	-40°C ~ 160°C	-	-	-	-	-
CMS3-1-R CMC 28UH 5.7A 2LN SMD Eaton - Electronics Division	786	RFQ	Datasheet	Horizontal, 4 PC Pad	Power Line	2	-	28 µH @ 100 kHz	5.7A	5mOhm (Typ)	-	-	-40°C ~ 160°C	-	-	-	-	-

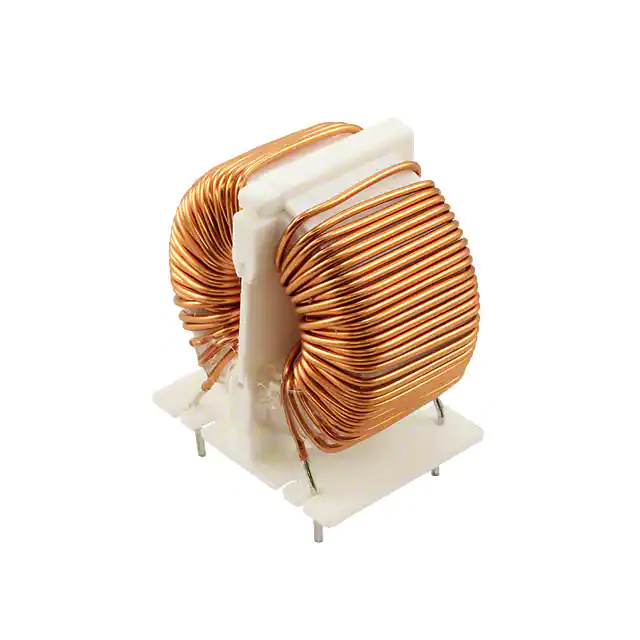

SC-05-30J CMC 3MH 5A 2LN TH KEMET	200	RFQ	Datasheet	Vertical, 4 PC Pin	Power Line	2	-	3 mH @ 100 kHz	5A	70mOhm	250V	250V	-40°C ~ 120°C	-	-	-	-	-
CMS3-3-R CMC 64UH 4.75A 2LN SMD Eaton - Electronics Division	1,272	RFQ	Datasheet	Horizontal, 4 PC Pad	Power Line	2	-	64 µH @ 100 kHz	4.75A	7mOhm (Typ)	-	-	-40°C ~ 160°C	-	-	-	-	-
8106-RC CMC 5MH 3.7A 2LN TH Bourns Inc.	583	RFQ	Datasheet	Vertical, 4 PC Pin	-	2	-	5 mH @ 1 kHz	3.7A	70mOhm	-	-	-55°C ~ 105°C	-	-	-	-	-
8101-RC CMC 4MH 1.7A 2LN TH Bourns Inc.	325	RFQ	Datasheet	Vertical, 4 PC Pin	-	2	-	4 mH @ 1 kHz	1.7A	173mOhm	-	-	-55°C ~ 105°C	-	-	-	-	-
8102-RC CMC 2.5MH 2.4A 2LN TH Bourns Inc.	233	RFQ	Datasheet	Vertical, 4 PC Pin	-	2	-	2.5 mH @ 1 kHz	2.4A	90mOhm	-	-	-55°C ~ 105°C	-	-	-	-	-
PH9408.494NLT CMC 21A 2LN 2K OHM SMD Pulse Electronics	252	RFQ	Datasheet	Nonstandard	-	2	2 kOhms @ 1.3 MHz	-	21A	4mOhm	-	-	-40°C ~ 125°C	-	-	-	-	-
CMS3-2-R CMC 45UH 5.1A 2LN SMD Eaton - Electronics Division	154	RFQ	Datasheet	Horizontal, 4 PC Pad	Power Line	2	-	45 µH @ 100 kHz	5.1A	6mOhm (Typ)	-	-	-40°C ~ 160°C	-	-	-	-	-
7448228002 CMC 175UH 10A 2LN TH Würth Elektronik	299	RFQ	Datasheet	Vertical, 4 PC Pin	Power Line	2	-	175 µH @ 100 kHz	10A	4mOhm	-	250V	-40°C ~ 125°C	-	-	-	-	-
CMS3-10-R CMC 518UH 1.45A 2LN SMD Eaton - Electronics Division	1,341	RFQ	Datasheet	Horizontal, 4 PC Pad	Power Line	2	-	518 µH @ 100 kHz	1.45A	76mOhm (Typ)	-	-	-40°C ~ 160°C	-	-	-	-	-
CMS3-14-R CMC 1.31MH 750MA 2LN SMD Eaton - Electronics Division	540	RFQ	Datasheet	Horizontal, 4 PC Pad	Power Line	2	-	1.31 mH @ 100 kHz	750mA	300mOhm (Typ)	-	-	-40°C ~ 160°C	-	-	-	-	-
CMS3-12-R CMC 790UH 1.05A 2LN SMD Eaton - Electronics Division	1,610	RFQ	Datasheet	Horizontal, 4 PC Pad	Power Line	2	-	790 µH @ 100 kHz	1.05A	145mOhm (Typ)	-	-	-40°C ~ 160°C	-	-	-	-	-
SC-14-12J CMC 1.2MH 14A 2LN TH KEMET	145	RFQ	Datasheet	Vertical, 4 PC Pin	Power Line	2	-	1.2 mH @ 10 kHz	14A	12.2mOhm	250V	250V	-40°C ~ 120°C	-	-	-	-	-
B82724V2203U040 CMC 1MH 17A 2LN TH EPCOS - TDK Electronics	849	RFQ	Datasheet	Vertical, 4 PC Pin	Power Line	2	-	1 mH @ 10 kHz	17A	3.2mOhm	-	250V	-40°C ~ 125°C	-	-	-	-	-
SC-06-60J CMC 6MH 6A 2LN TH KEMET	221	RFQ	Datasheet	Vertical, 4 PC Pin	Power Line	2	-	6 mH @ 10 kHz	6A	60mOhm	250V	250V	-40°C ~ 120°C	-	-	-	-	-
CMS3-4-R CMC 88UH 3.95A 2LN SMD Eaton - Electronics Division	1,521	RFQ	Datasheet	Horizontal, 4 PC Pad	Power Line	2	-	88 µH @ 100 kHz	3.95A	10mOhm (Typ)	-	-	-40°C ~ 160°C	-	-	-	-	-
SC-10-D050 CMC 50UH 10A 2LN TH KEMET	580	RFQ	Datasheet	Horizontal, No Base, 4 PC Pin	Power Line	2	-	50 µH @ 100 kHz	10A	16mOhm	250V	250V	-40°C ~ 105°C	-	-	-	-	-

Total 8814 Record«Prev 1... 68 69 70 717273 74 75...441 Next»

Common Mode Chokes Electronic Components

Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
