Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RN232-1.6-02-10MCMC 10MH 1.6A 2LN TH |
200 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 1.6A | 170mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
EV28-1.0-02-36MCMC 36MH 1A 2LN TH |
761 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 36 mH @ 400 Hz | 1A | 591mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
EV28-1.5-02-20MCMC 20MH 1.5A 2LN TH |
500 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 20 mH @ 400 Hz | 1.5A | 282mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
CAV-1.2-10CMC 10MH 1.2A 2LN TH |
364 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | - | 10 mH @ 10 kHz | 1.2A | 285mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

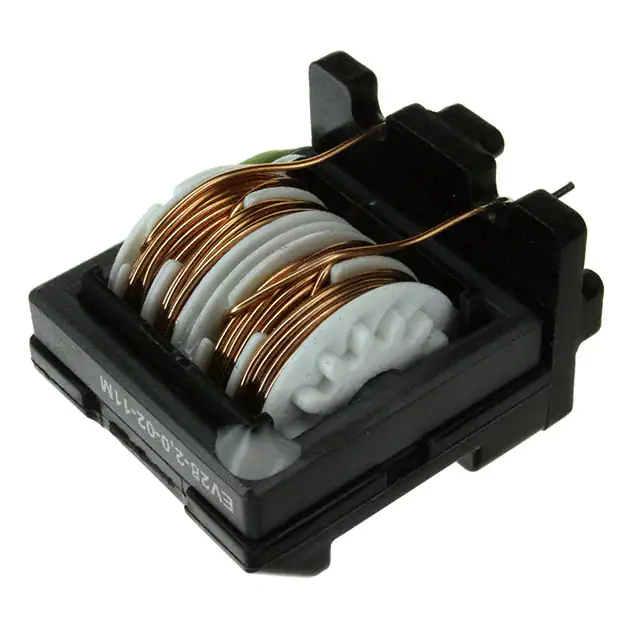

EV28-2.0-02-11MCMC 11MH 2A 2LN TH |
491 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 11 mH @ 400 Hz | 2A | 162mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
RN242-1-02-33MCMC 33MH 1A 2LN TH |
300 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 33 mH @ 10 kHz | 1A | 810mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
PA5140.205NLTCMC 20A 2LN 1.09K OHM SMD |
290 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1.09 kOhms @ 3.66 MHz | - | 20A | 2.6mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

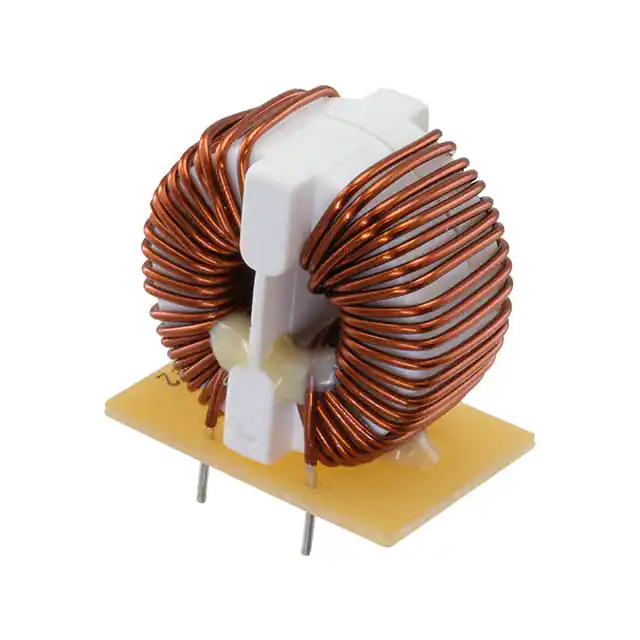

SC22-05-30JCMC 3MH 5A 2LN TH |
198 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3 mH @ 10 kHz | 5A | 50mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
|
RN242-2-02-6M8CMC 6.8MH 2A 2LN TH |
389 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 2A | 192mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
CM2824E352R-10CMC 800MA 2LN 3.5KOHM SMD |
14,880 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | 3.5 kOhms @ 100 MHz | - | 800mA | 300mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
SC-20-03JCMC 300UH 20A 2LN TH |
176 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 300 µH @ 1 kHz | 20A | 4mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

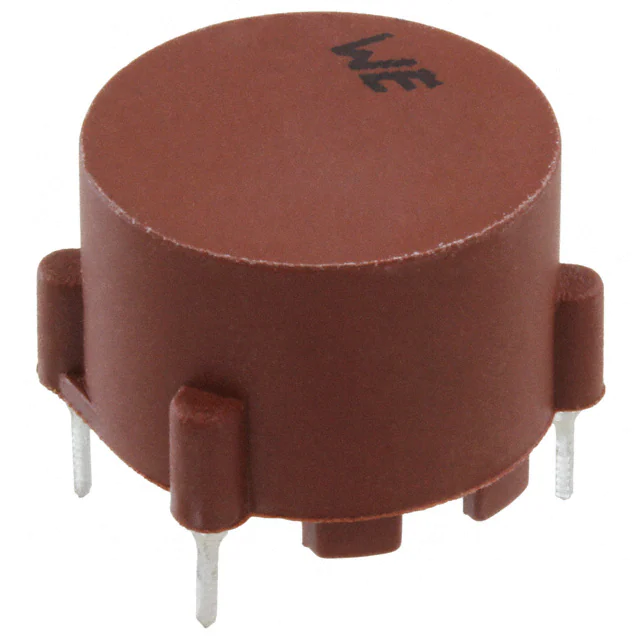

7446622002CMC 2.2MH 2A 2LN TH |
522 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 10 kHz | 2A | 100mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

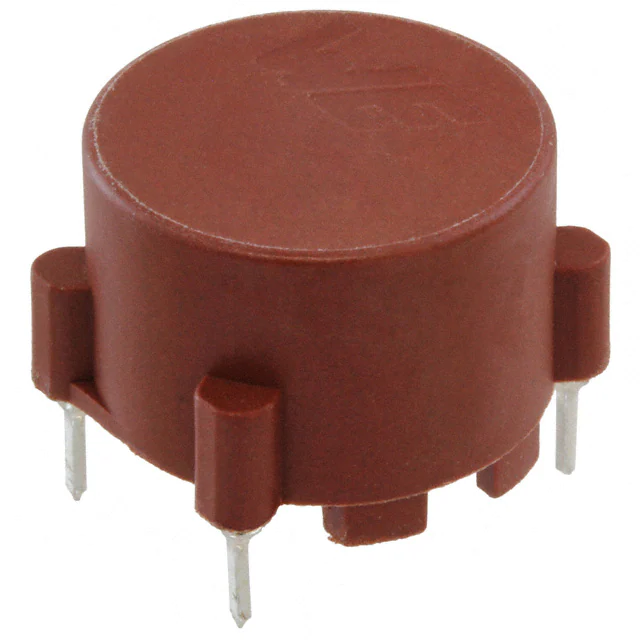

7446622001CMC 1MH 2A 2LN TH |
387 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 2A | 60mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7446621007CMC 6.8MH 1A 2LN TH |
363 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 1A | 300mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7446223001CMC 1MH 3A 2LN TH |
177 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 3A | 40mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
74462250007CMC 700UH 4.7A 2LN TH |
110 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 700 µH @ 10 kHz | 4.7A | 20mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
B82721S0272T040CMC 3MH 2.7A 2LN SMD |
214 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 3 mH @ 10 kHz | 2.7A | 65mOhm | 80V | 48V | - | - | - | - | - | - |
|
SC-02-100JCMC 10MH 2A 2LN TH |
178 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 100 kHz | 2A | 220mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
B82792C0506N365CMC 50MH 100MA 2LN SMD |
500 |
|
Datasheet |
Horizontal, 8 Gull Wing | Signal Line | 2 | - | 50 mH @ 10 kHz | 100mA | 2.6Ohm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
RN142-1-02-33MCMC 33MH 1A 2LN TH |
114 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 33 mH @ 10 kHz | 1A | 810mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
