Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMS2-7-RCMC 270UH 1.6A 2LN SMD |
1,560 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 270 µH @ 100 kHz | 1.6A | 60mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|

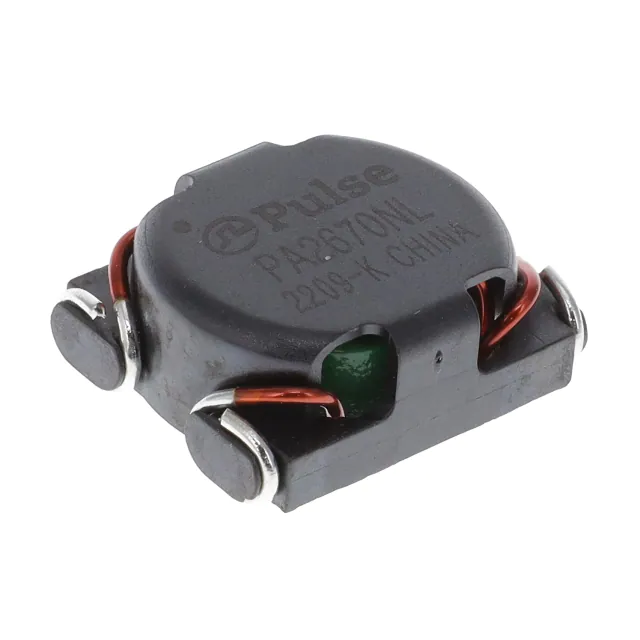

PA2670NLCMC 16A 2LN SMD |
1,304 |
|
Datasheet |
Vertical, 4 PC Pad | - | 2 | - | - | 16A | 4.25mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
DKFP-6248-D504CMC 500MA 2LN TH |
624 |
|
Datasheet |
Nonstandard | - | 2 | - | - | 500mA | 500mOhm | - | 250V | -40°C ~ 125°C | - | UR | - | - | - |
|
DKFP-6248-0102CMC 900MA 2LN TH |
164 |
|
Datasheet |
Nonstandard | - | 2 | - | - | 900mA | 240mOhm | - | 250V | -40°C ~ 125°C | - | UR | - | - | - |
|
|
CMS2-3-RCMC 57UH 3.6A 2LN SMD |
1,607 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 57 µH @ 100 kHz | 3.6A | 12mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|

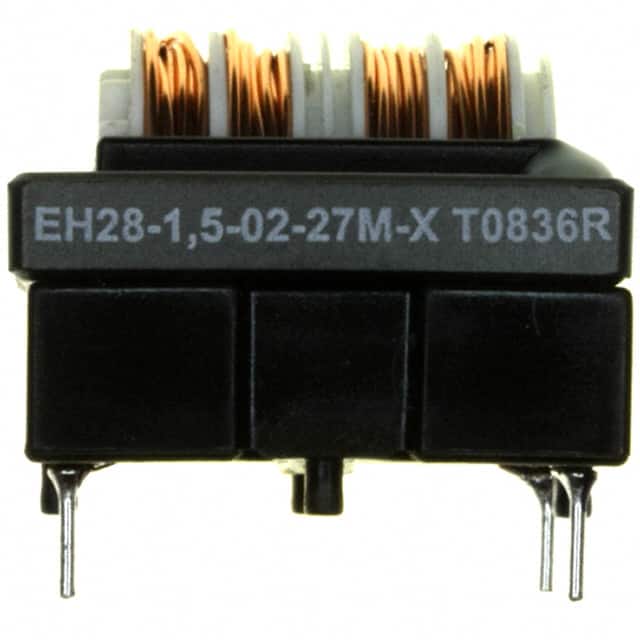

EH28-1.5-02-20MCMC 20MH 1.5A 2LN TH |
358 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 20 mH @ 400 Hz | 1.5A | 282mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
SC-01-20GSCMC 2MH 1A 2LN TH |
505 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 1A | 180mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|

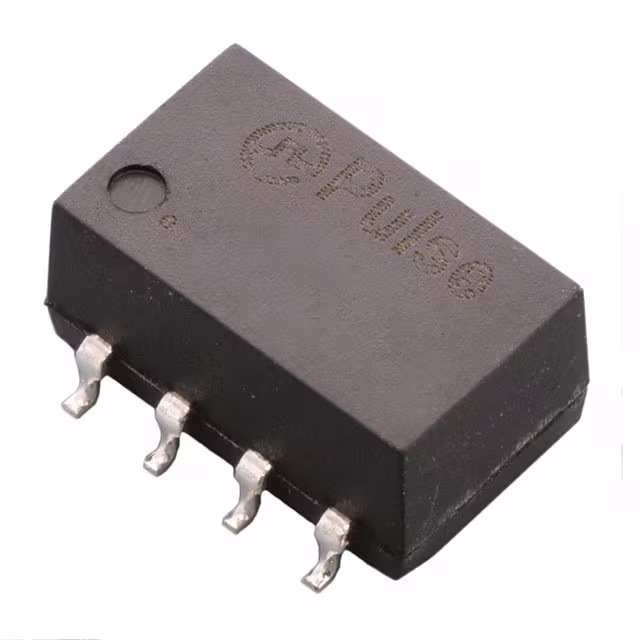

T8003NLTCMC 4LN SMD |
4,497 |
|
Datasheet |
Vertical, 8 Gull Wing | Signal Line | 4 | - | - | - | 200mOhm | - | - | - | - | - | - | - | - |
|
PE-65857NLCMC 4LN SMD |
607 |
|
Datasheet |
Vertical, 8 Gull Wing | Signal Line | 4 | - | - | - | 220mOhm | - | - | 0°C ~ 70°C | - | - | - | - | - |
|
744212820CMC 82UH 300MA 2LN 440 OHM SMD |
1,711 |
|
Datasheet |
Horizontal, 4 J-Lead | Power, Signal Line | 2 | 440 Ohms @ 180 MHz | 82 µH @ 100 kHz | 300mA | 200mOhm | 80V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
744212101CMC 100UH 300MA 2LN 500 OHM SMD |
886 |
|
Datasheet |
Horizontal, 4 J-Lead | Power, Signal Line | 2 | 500 Ohms @ 60 MHz | 100 µH @ 100 kHz | 300mA | 220mOhm | 80V | - | -40°C ~ 105°C | - | - | - | - | - |
|
SC-06-10JSCMC 1MH 6A 2LN TH |
862 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 6A | - | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
744822233CMC 3.3MH 1.5A 2LN TH |
134 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 1.5A | 120mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
744822120CMC 20MH 500MA 2LN TH |
115 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 20 mH @ 10 kHz | 500mA | 540mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
SC-10-D020HCMC 20UH 10A 2LN TH |
352 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 20 µH @ 100 kHz | 10A | 6.5mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
744290473CMC 47MH 250MA 2LN SMD |
574 |
|
Datasheet |
Horizontal, 4 Flat Lead | Power, Signal Line | 2 | - | 47 mH @ 10 kHz | 250mA | 4Ohm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744290103CMC 10MH 500MA 2LN SMD |
505 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | - | 10 mH @ 10 kHz | 500mA | 920mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
SC-07-100CMC 650UH 7A 2LN TH |
235 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 650 µH @ 100 kHz | 7A | 14mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
B2013FNLTCMC 9MH 100MA 2LN SMD |
1,000 |
|
Datasheet |
Vertical, 8 Gull Wing | Signal Line | 2 | - | 9 mH @ 100 kHz | 100mA | 1Ohm | - | - | 0°C ~ 70°C | - | - | - | - | - |
|
B82721S0562A030CMC 768UH 5.6A 2LN SMD |
172 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 768 µH @ 100 kHz | 5.6A | 18mOhm | 80V | 48V | - | - | - | - | - | - |
