Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DR331-513BECMC 51UH 500MA 2LN SMD |
7,532 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | - | 51 µH @ 100 kHz | 500mA | 300mOhm | 80V | 42V | -40°C ~ 135°C | - | - | - | - | - |
|
2744065447CMC 5A 2LN 255 OHM SMD |
2,318 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 255 Ohms @ 100 MHz | - | 5A | 4.1mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
ACT1210-101-2P-TL00CMC 100UH 150MA 2LN 5.1KOHM SMD |
45,605 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 5.1 kOhms @ 10 MHz | 100 µH @ 100 kHz | 150mA | 1.5Ohm | 80V | - | -55°C ~ 150°C | - | - | - | - | - |
|
ACM70V-701-2PL-TL00CMC 4A 2LN 700 OHM SMD AEC-Q200 |
29,502 |
|
Datasheet |
Horizontal, 4 J-Lead | Power Line | 2 | 700 Ohms @ 100 MHz | - | 4A | 15mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SPDL485025-1000-2P-TCMC 2A 2LN 1K OHM SMD |
4,445 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 1 kOhms @ 100 MHz | - | 2A | 24mOhm (Typ) | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SPDL485025-100-2P-TCMC 6.5A 2LN 100 OHM SMD |
2,709 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 100 Ohms @ 100 MHz | - | 6.5A | 9mOhm (Typ) | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|

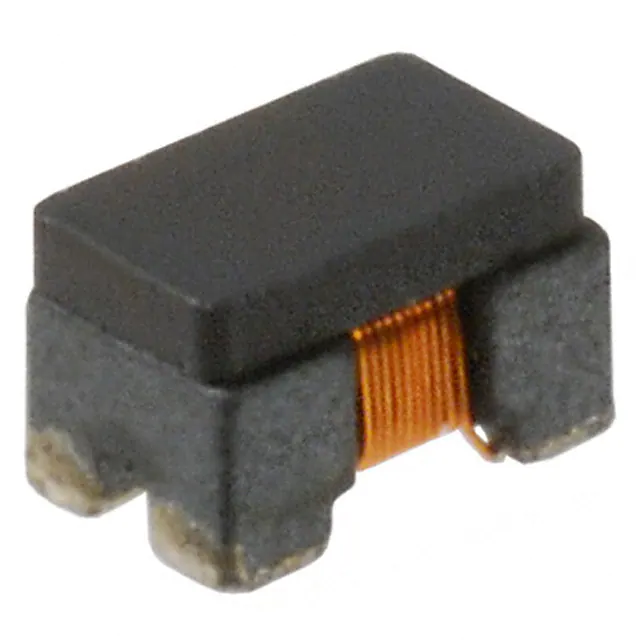

CM0805D900R-10CMC 400MA 2LN 90 OHM SMD |
40,145 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 400mA | 300mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
7442335900CMC 500MA 2LN 90OHM SMD AEC-Q200 |
5,720 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 500mA | 270mOhm | 20V | - | -40°C ~ 105°C | AEC-Q200 | - | - | - | - |
|
|
7442335600CMC 600MA 2LN 60OHM SMD AEC-Q200 |
3,429 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 60 Ohms @ 100 MHz | - | 600mA | 220mOhm | 20V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
SPDL485025-1400-2P-TCMC 1.5A 2LN 1.4K OHM SMD |
2,237 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 1.4 kOhms @ 100 MHz | - | 1.5A | 40mOhm (Typ) | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
B82789C0104N002CMC 100UH 150MA 2LN SMD AEC-Q200 |
14,086 |
|
Datasheet |
Horizontal, 4 L-Lead | Signal Line | 2 | - | 100 µH @ 100 kHz | 150mA | 1.5Ohm | 80V | 42V | -55°C ~ 125°C | - | - | - | - | - |
|
|
B82789C0513N002CMC 51UH 250MA 2LN SMD AEC-Q200 |
13,659 |
|
Datasheet |
Horizontal, 4 L-Lead | Signal Line | 2 | - | 51 µH @ 100 kHz | 250mA | 550mOhm | 80V | 42V | -55°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
B82789C0513H002CMC 51UH 250MA 2LN SMD AEC-Q200 |
22,811 |
|
Datasheet |
Horizontal, 4 L-Lead | Signal Line | 2 | - | 51 µH @ 100 kHz | 250mA | 550mOhm | 80V | 42V | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
744235801CMC 1.3UH 1A 2LN 800OHM SMD |
5,964 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 800 Ohms @ 100 MHz | 1.3 µH @ 100 kHz | 1A | 120mOhm | 60V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
744235900CMC 300NH 2A 2LN 90OHM SMD |
3,025 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | 300 nH @ 100 kHz | 2A | 50mOhm | 60V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
744235110CMC 11UH 450MA 2LN 5KOHM SMD |
2,066 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 5 kOhms @ 100 MHz | 11 µH @ 100 kHz | 450mA | 800mOhm | 60V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
744235601CMC 1UH 1.2A 2LN 600OHM SMD |
1,003 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 600 Ohms @ 100 MHz | 1 µH @ 100 kHz | 1.2A | 120mOhm | 60V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
ACT45B-101-2P-TL003CMC 100UH 150MA 2LN 5.8KOHM SMD |
16,486 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 5.8 kOhms @ 10 MHz | 100 µH @ 100 kHz | 150mA | 2Ohm | 50V | - | -40°C ~ 150°C | - | - | - | Automotive | AEC-Q200 |
|
ACT1210D-101-2P-TL00CMC 100UH 150MA 2LN 5.1KOHM SMD |
8,704 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 100 µH @ 100 kHz | 115mA | 3Ohm | 80V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

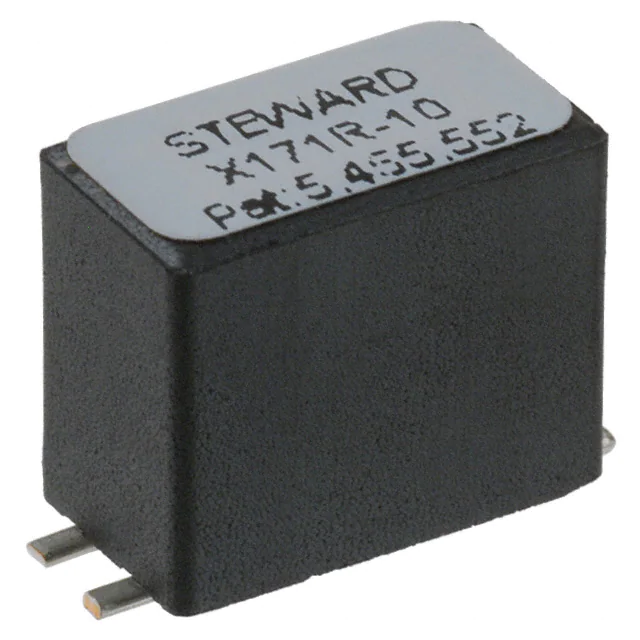

CM2545X171R-10CMC 10A 2LN 170 OHM SMD |
30,065 |
|
Datasheet |
Vertical, 4 Flat Lead | Power Line | 2 | 170 Ohms @ 100 MHz | - | 10A | 10mOhm | 285V | - | -40°C ~ 125°C | - | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
