Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-1210CCMC102STSCMC 480MA 2LN 1K OHM SMD |
71,780 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 1 kOhms @ 100 MHz | - | 480mA | 350mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
ECMF04-4HSWM10CMC 100MA 4LN SMD ESD |
11,779 |
|
Datasheet |
10-UFDFN | Signal Line | 4 | - | - | 100mA | 5Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
2744051447CMC 5A 2LN 230 OHM SMD |
14,751 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 230 Ohms @ 100 MHz | - | 5A | 4mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
DLW43SH101XK2LCMC 100UH 200MA 2LN SMD AEC-Q200 |
27,126 |
|
Datasheet |
1812 (4532 Metric) | Signal Line | 2 | - | 100 µH @ 1 MHz | 200mA | 2Ohm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
.jpg)
|
744231091CMC 370MA 2LN 90OHM SMD AEC-Q200 |
21,596 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 370mA | 300mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744231371CMC 280MA 2LN 370OHM SMD AECQ200 |
9,426 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 370 Ohms @ 100 MHz | - | 280mA | 450mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
744231121CMC 370MA 2LN 120OHM SMD AECQ200 |
8,171 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 120 Ohms @ 100 MHz | - | 370mA | 300mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|

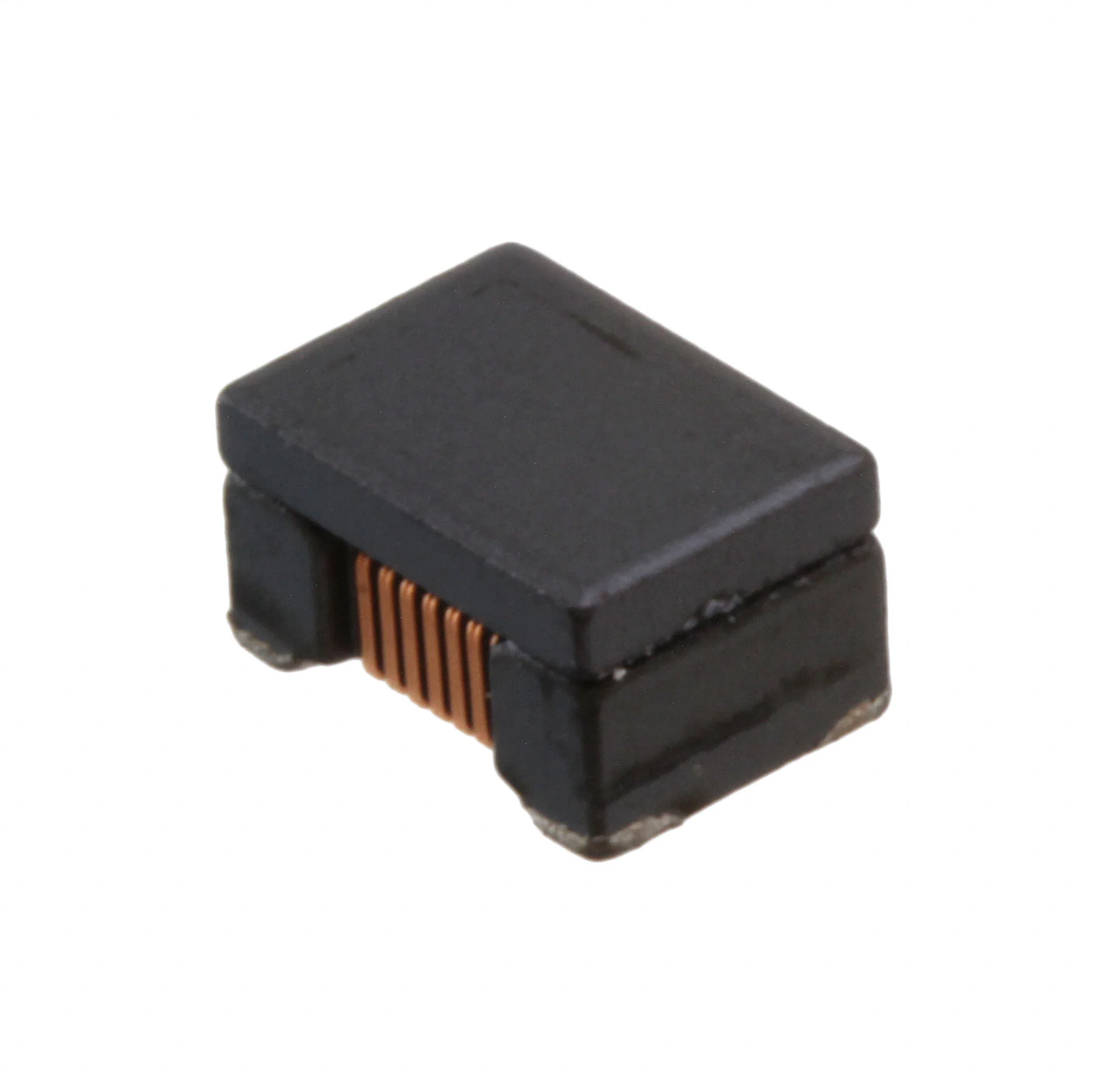

DLW43SH110XK2LCMC 11UH 360MA 2LN SMD AEC-Q200 |
2,901 |
|
Datasheet |
1812 (4532 Metric) | Signal Line | 2 | - | 11 µH @ 100 kHz | 360mA | 500mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
DR331-513AECMC 51UH 500MA 2LN SMD |
181,276 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | - | 51 µH @ 100 kHz | 500mA | 300mOhm | 80V | 42V | -40°C ~ 135°C | - | - | - | - | - |
|
|
DR331-105BECMC 1MH 500MA 2LN SMD |
46,341 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | - | 1 mH @ 100 kHz | 500mA | 400mOhm | 80V | 42V | -40°C ~ 135°C | - | - | - | - | - |
.jpg)
|
DLW31SN900SQ2LCMC 370MA 2LN 90 OHM SMD |
58,986 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 370mA | 300mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLW31SN222SQ2LCMC 200MA 2LN 2.2K OHM SMD |
15,378 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 2.2 kOhms @ 100 MHz | - | 200mA | 1.2Ohm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLW31SN102SQ2LCMC 230MA 2LN 1K OHM SMD |
5,493 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1 kOhms @ 100 MHz | - | 230mA | 1Ohm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
PCMF2USB3S/CZCMC 4LN SMD ESD |
7,374 |
|
Datasheet |
10-UFBGA, WLCSP | Signal Line | 4 | - | - | - | 3Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
ACM4520V-142-2P-T00CMC 1A 2LN 1.4K OHM SMD AEC-Q200 |
20,039 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 1.4 kOhms @ 100 MHz | - | 1A | 80mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
DLW5BTM102TQ2LCMC 2.5A 2LN 1K OHM SMD |
2,723 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 1 kOhms @ 100 MHz | - | 2.5A | 34mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
744230900CMC 550MA 2LN 90OHM SMD AEC-Q200 |
83,344 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 550mA | 145mOhm | 50V | - | -40°C ~ 105°C | AEC-Q200 | - | - | - | - |
|
|
744230121CMC 450MA 2LN 120OHM SMD AECQ200 |
39,576 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 120 Ohms @ 100 MHz | - | 450mA | 175mOhm | 50V | - | -40°C ~ 105°C | AEC-Q200 | - | - | - | - |
|
|
744230220CMC 800MA 2LN 22OHM SMD AEC-Q200 |
20,151 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 22 Ohms @ 100 MHz | - | 800mA | 80mOhm | 50V | - | -40°C ~ 105°C | AEC-Q200 | - | - | - | - |
|
|
744232102CMC 230MA 2LN 1KOHM SMD AEC-Q200 |
12,596 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1 kOhms @ 100 MHz | - | 230mA | 1Ohm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
