Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EXC-24CE900UCMC 160MA 2LN 90 OHM SMD |
7,207 |
|
Datasheet |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 160mA | 1.75Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
.jpg)
|
EXC-24CB102UCMC 50MA 2LN 1K OHM SMD |
13,434 |
|
Datasheet |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 1 kOhms @ 100 MHz | - | 50mA | 1.5Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
.jpg)
|
DLW21SN921SK2LCMC 160MA 2LN 920 OHM SMD |
7,327 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 920 Ohms @ 100 MHz | - | 160mA | 950mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
ECMF02-2AMX6CMC 200MA 2LN SMD ESD |
118,893 |
|
Datasheet |
6-UFQFN | Signal Line | 2 | - | - | 200mA | 2.5Ohm | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
|
DLW21SN900SQ2LCMC 330MA 2LN 90 OHM SMD |
44,097 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 330mA | 350mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLW21SN371SQ2LCMC 280MA 2LN 370 OHM SMD |
40,860 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 370 Ohms @ 100 MHz | - | 280mA | 450mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
ECMF02-4CMX8CMC 2LN SMD ESD |
160,562 |
|
Datasheet |
8-UFDFN | Signal Line | 2 | - | - | - | 4Ohm | - | - | -40°C ~ 125°C | - | - | TVS Diode ESD Protection | - | - |
|
|
DLW21SN900HQ2LCMC 280MA 2LN 90 OHM SMD |
110,547 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 280mA | 410mOhm | 20V | - | -40°C ~ 85°C | - | - | - | - | - |
|
ACM2520-801-3P-T002CMC 150MA 3LN 800 OHM SMD |
1,607 |
|
Datasheet |
Horizontal, 6 PC Pad | Signal Line | 3 | 800 Ohms @ 100 MHz | - | 150mA | 1.6Ohm | 20V | - | -40°C ~ 85°C | - | - | - | - | - |
|
ECMF4-20A42N10CMC 100MA 4LN SMD ESD |
123,554 |
|
Datasheet |
10-UFQFN | Signal Line | 4 | - | - | 100mA | 5Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
|
ECMF02-2HSMX6CMC 100MA 2LN SMD ESD |
7,275 |
|
Datasheet |
6-UFQFN | Signal Line | 2 | - | - | 100mA | 9Ohm | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
ECMF2-40A100N6CMC 100MA 2LN SMD ESD |
3,464 |
|
Datasheet |
6-XFDFN | Signal Line | 2 | - | - | 100mA | 3Ohm (Typ) | - | - | -55°C ~ 125°C | - | - | TVS Diode ESD Protection | - | - |
|

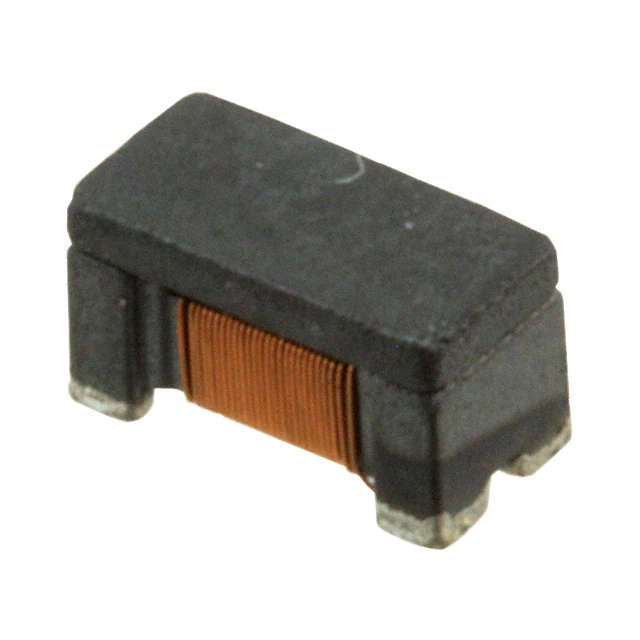

SRF3216-222YCMC 200MA 2LN 2.2KOHM SMD |
57,340 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 2.2 kOhms @ 100 MHz | - | 200mA | 1.2Ohm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
MCZ1210DH500CPTA0GCMC 50 OHM SMD |
23,698 |
|
- |
0504 (1210 Metric), 4 Lead | Signal Line | - | 50 Ohms @ 100 MHz | - | - | - | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
ECMF4-40A100N10CMC 100MA 4LN SMD ESD |
2,345 |
|
Datasheet |
10-XFDFN | Signal Line | 4 | - | - | 100mA | 3Ohm (Typ) | - | - | -55°C ~ 125°C | - | - | TVS Diode ESD Protection | - | - |
|
EXC-24CG900UCMC 100MA 2LN 90 OHM SMD |
26,235 |
|
Datasheet |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 100mA | 3Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|

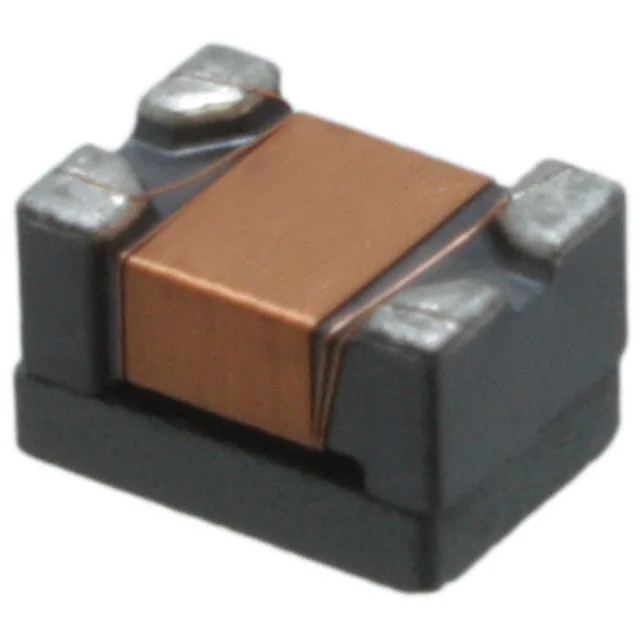

SRF4532-510YCMC 51UH 200MA 2LN 2KOHM SMD |
53,894 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 2 kOhms @ 10 MHz | 51 µH @ 100 kHz | 200mA | 3.5Ohm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SRF4532-101YCMC 100UH 200MA 2LN 5KOHM SMD |
17,083 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 5 kOhms @ 10 MHz | 100 µH @ 100 kHz | 200mA | 8.9Ohm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
.jpg)
|
PE-1206CCMC222STSCMC 200MA 2LN 2.2K OHM SMD |
112,900 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 2.2 kOhms @ 100 MHz | - | 200mA | 1.2Ohm | 50V | - | - | - | - | - | - | - |
|
2744045447CMC 5A 2LN 60 OHM SMD |
138,230 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 64 Ohms @ 100 MHz | - | 5A | 1.4mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
