Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-53911NLCMC 1.5A 2LN SMD |
621 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | - | 1.5A | 60mOhm | - | 250V | -40°C ~ 130°C | - | - | - | - | - |
|
SC-01-30GCMC 3MH 1A 2LN TH |
488 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 3 mH @ 100 kHz | 1A | 120mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
RN204-0.3-02-12MCMC 12MH 300MA 2LN TH |
474 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 12 mH @ 10 kHz | 300mA | 960mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
SC-02-100CMC 1MH 2A 2LN TH |
325 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 2A | 100mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|

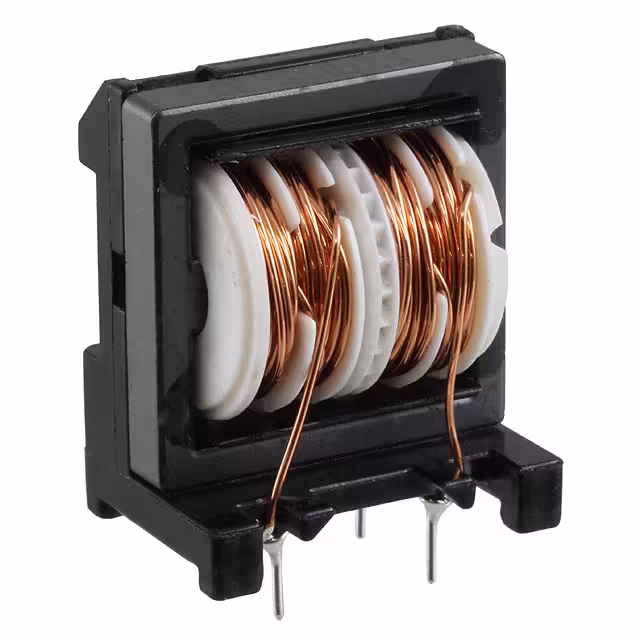

SS28V-K20115-CHCMC 11.5MH 2A 2LN TH |
295 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 11.5 mH @ 1 kHz | 2A | 220mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

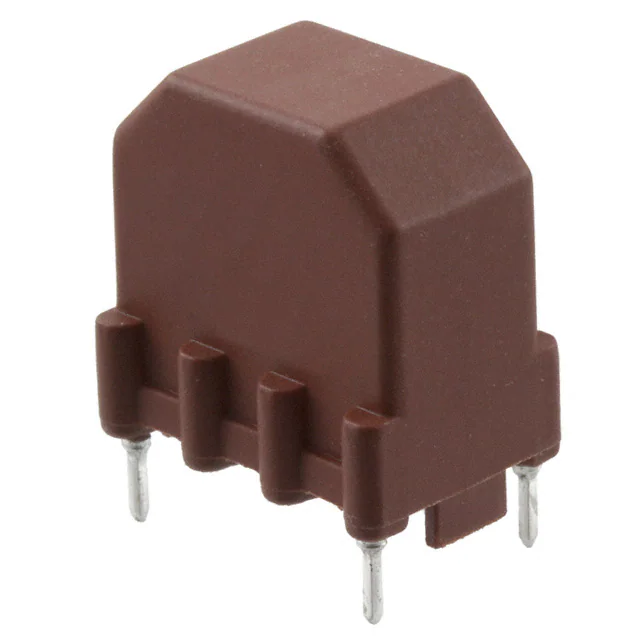

7446122003CMC 3.3MH 1.5A 2LN TH |
279 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 1.5A | 150mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
7446121010CMC 10MH 700MA 2LN TH |
142 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 700mA | 550mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
RN204-1-02-3M0CMC 3MH 1A 2LN TH |
584 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3 mH @ 10 kHz | 1A | 192mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
RN204-1.5-02-1M6CMC 1.6MH 1.5A 2LN TH |
500 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.6 mH @ 10 kHz | 1.5A | 96mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
SC-03-D050CMC 50UH 3A 2LN TH |
346 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 50 µH @ 100 kHz | 3A | 40mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SC-02-30GCMC 3MH 2A 2LN TH |
1,051 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 3 mH @ 100 kHz | 2A | 85mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
RN204-0.3-02-22MCMC 22MH 300MA 2LN TH |
2,368 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 22 mH @ 10 kHz | 300mA | 1.3Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
M-522CTCMC 1A 2LN 200 OHM SMD |
2,309 |
|
Datasheet |
Vertical, 4 Gull Wing | Signal Line | 2 | 200 Ohms @ 20 MHz | - | 1A | 100mOhm | 50V | - | -25°C ~ 85°C | - | - | - | - | - |
|
RN222-0.8-02-39MCMC 39MH 800MA 2LN TH |
400 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 39 mH @ 10 kHz | 800mA | 1Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|

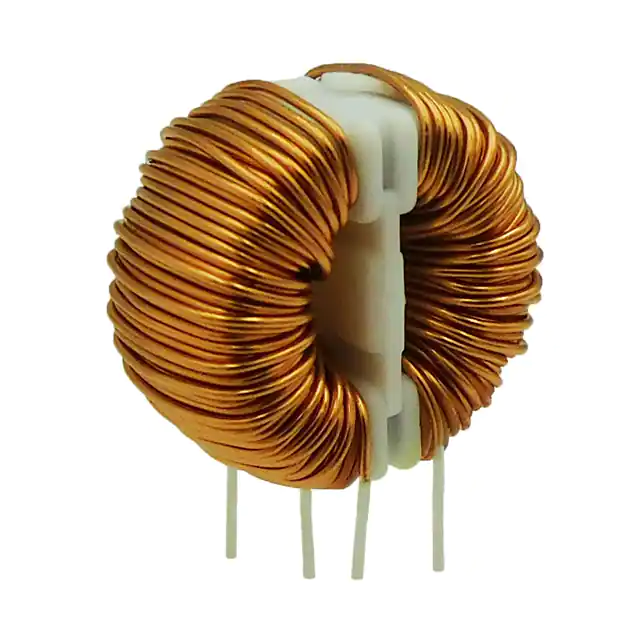

LPTC-V-6.8-2-200CMC 6.8MH 2A 2LN TH |
168 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 1 kHz | 2A | 200mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
SSHB21H-R25056CMC 5.6MH 2.5A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 5.6 mH @ 10 kHz | 2.5A | 100mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SC-12-E035JCMC 350UH 12A 2LN TH |
152 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 350 µH @ 10 kHz | 12A | 8mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

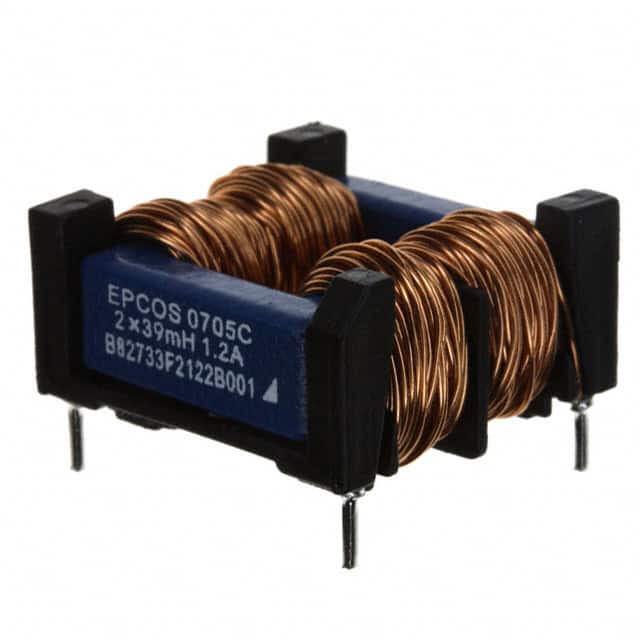

B82733F2122B001CMC 39MH 1.2A 2LN TH |
519 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 39 mH @ 10 kHz | 1.2A | 696mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
SS26V-R100330CMC 33MH 1A 2LN TH |
221 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 33 mH @ 1 kHz | 1A | 700mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SN10-500CMC 110UH 3A 2LN TH |
1,249 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 110 µH @ 100 kHz | 3A | 52mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
