Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SS21V-200024CMC 2.4MH 2A 2LN TH |
635 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.4 mH @ 1 kHz | 2A | 150mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SS11VL-R04520CMC 52MH 400MA 2LN TH |
553 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 52 mH @ 1 kHz | 400mA | 2.6Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SRF1306-101YLINE FILTER 50VDC 0.7A SMD |
135 |
|
Datasheet |
8-SMD, Gull Wing | - | 2 | 300 Ohms @ 1 MHz | 100 µH @ 100 kHz | 700mA | 100mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
SS11VL-R05350CMC 35MH 500MA 2LN TH |
584 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 35 mH @ 1 kHz | 500mA | 1.8Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SS11VL-R06270CMC 27MH 600MA 2LN TH |
569 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 27 mH @ 1 kHz | 600mA | 1.3Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
DR221-333AECMC 33UH 200MA 2LN SMD |
7,614 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | - | 33 µH @ 10 kHz | 200mA | 270mOhm | 50V | 100V | -40°C ~ 125°C | - | - | - | - | - |
|

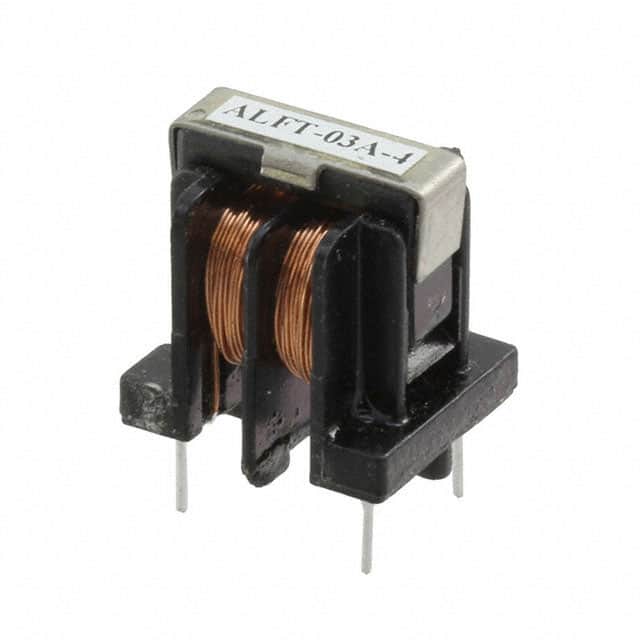

ALFT-03A-8CMC 5.5MH 1A 2LN TH |
129 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5.5 mH @ 1 kHz | 1A | 750mOhm | 250V | - | -25°C ~ 85°C | - | - | - | - | - |
|
SU9V-R01180CMC 18MH 100MA 2LN TH |
3,664 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 18 mH @ 1 kHz | 100mA | 8Ohm | - | 250V | -25°C ~ 125°C | - | - | - | - | - |
|
SHO-302CMC 4A 2LN TH |
1,145 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 3.9 µH @ 100 kHz | 4A | 10mOhm | 50V | - | -25°C ~ 70°C | - | - | - | - | - |
|
|
SU9V-R07017CMC 1.7MH 700MA 2LN TH |
1,001 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.7 mH @ 1 kHz | 700mA | 600mOhm | - | 250V | -25°C ~ 125°C | - | - | - | - | - |
|
SU9H-R03090CMC 9MH 300MA 2LN TH |
830 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 9 mH @ 1 kHz | 300mA | 3Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
PA4339.301NLTCMC 2.8UH 5A 2LN 300 OHM SMD |
2,681 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 300 Ohms @ 100 MHz | 2.8 µH @ 100 kHz | 5A | 10mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
B82732R2901B030CMC 27MH 900MA 2LN TH |
12,487 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 900mA | 750mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
SSR10H-10170CMC 17MH 1A 2LN TH |
895 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 17 mH @ 10 kHz | 1A | 480mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SHO-101CMC 4A 2LN TH |
879 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 2 µH @ 100 kHz | 4A | 15.5mOhm | 50V | - | -25°C ~ 70°C | - | - | - | - | - |
|
SSR10V-17058CMC 5.8MH 1.7A 2LN TH |
573 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 5.8 mH @ 10 kHz | 1.7A | 180mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR10V-10170CMC 17MH 1A 2LN TH |
548 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 17 mH @ 10 kHz | 1A | 480mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSR10VS-04745CMC 74.5MH 400MA 2LN TH |
542 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 74.5 mH @ 10 kHz | 400mA | 2.5Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR10VS-30013CMC 1.3MH 3A 2LN TH |
536 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 1.3 mH @ 10 kHz | 3A | 60mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR10VS-11110CMC 11MH 1.1A 2LN TH |
624 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 11 mH @ 10 kHz | 1.1A | 330mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
