Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RC212-0.4-15MCMC 15MH 400MA 2LN TH |
795 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 400mA | 1.35Ohm | - | 250V | -40°C ~ 125°C | - | VDE | - | - | - |
|
|
RC212-0.35-22MCMC 22MH 350MA 2LN TH |
507 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 22 mH @ 10 kHz | 350mA | 1.9Ohm | - | 250V | -40°C ~ 125°C | - | VDE | - | - | - |
|

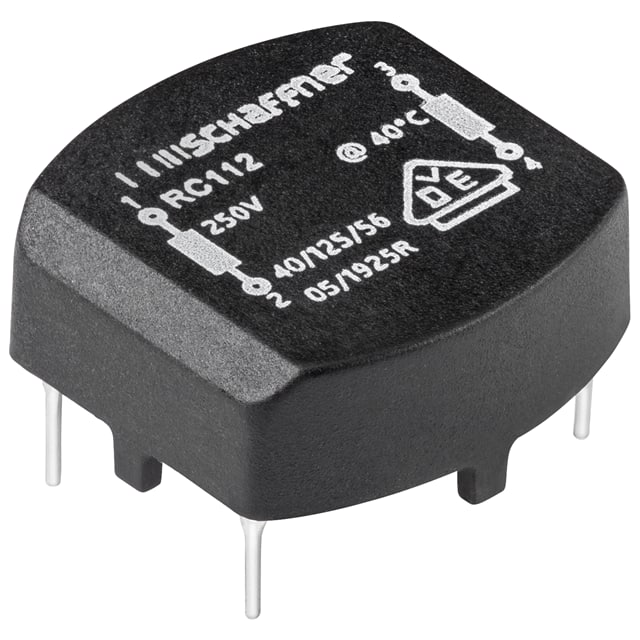

RC112-0.5-10MCMC 10MH 500MA 2LN TH |
287 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 500mA | 1Ohm | - | 250V | -40°C ~ 125°C | - | VDE | - | - | - |
|
|
RC112-0.3-30MCMC 30MH 300MA 2LN TH |
168 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 30 mH @ 10 kHz | 300mA | 2.2Ohm | - | 250V | -40°C ~ 125°C | - | VDE | - | - | - |
|
SU9VF-07015CMC 1.5MH 700MA 2LN TH |
893 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 1 kHz | 700mA | 440mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SU9V-01100CMC 10MH 100MA 2LN TH |
5,222 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 1 kHz | 100mA | 8Ohm | - | 250V | -25°C ~ 125°C | - | - | - | - | - |
|
|
SU9V-02080CMC 8MH 200MA 2LN TH |
885 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 8 mH @ 1 kHz | 200mA | 6Ohm | - | 250V | -25°C ~ 125°C | - | - | - | - | - |
|
SS11VL-07120CMC 12MH 700MA 2LN TH |
5,400 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 12 mH @ 1 kHz | 700mA | 900mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SS11VL-17024CMC 2.4MH 1.7A 2LN TH |
1,341 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.4 mH @ 1 kHz | 1.7A | 190mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SS11VL-10062CMC 6.2MH 1A 2LN TH |
821 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6.2 mH @ 1 kHz | 1A | 440mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SS11VL-05230CMC 23MH 500MA 2LN TH |
704 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 23 mH @ 1 kHz | 500mA | 1.8Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SS11VL-04350CMC 35MH 400MA 2LN TH |
588 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 35 mH @ 1 kHz | 400mA | 2.6Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SS11VL-11050CMC 5MH 1.1A 2LN TH |
240 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 1 kHz | 1.1A | 400mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SU9VD-07010CMC 10UH 700MA 2LN TH |
1,093 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 µH @ 1 kHz | 700mA | 100mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
ECMT1V1717S-1R0-RCMC 1MH 1A 2LN TH |
2,597 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 1A | 100mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
SS11VL-R30009CMC 900UH 3A 2LN TH |
6,555 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 900 µH @ 1 kHz | 3A | 60mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SS11VL-R10093CMC 9.3MH 1A 2LN TH |
1,589 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 9.3 mH @ 1 kHz | 1A | 440mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SN3-200CMC 10UH 1A 2LN TH |
1,004 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 10 µH @ 100 kHz | 1A | 45mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
SS11VL-R17036CMC 3.6MH 1.7A 2LN TH |
987 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.6 mH @ 1 kHz | 1.7A | 190mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SS11VL-R22020CMC 2MH 2.2A 2LN TH |
758 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 1 kHz | 2.2A | 120mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
