Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

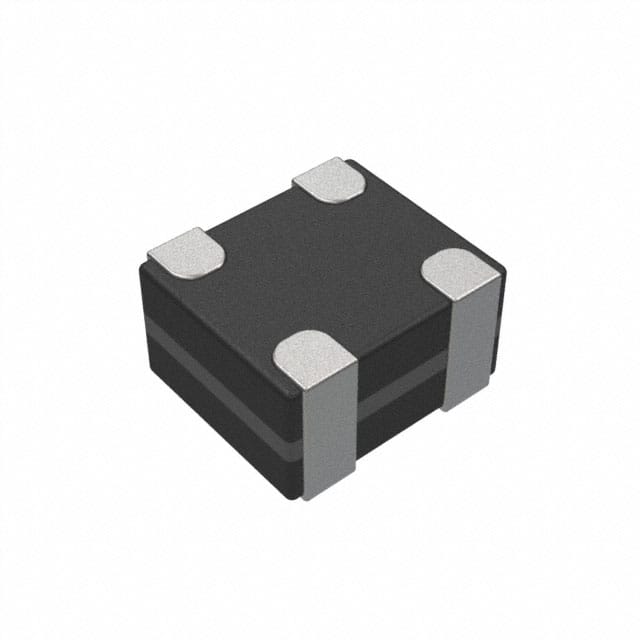

LCF060502A650TGCMC 50MA 2LN 65 OHM SMD |
3,873 |
|
Datasheet |
0202 (0605 Metric), 4 Lead | Signal Line | 2 | 65 Ohms @ 100 MHz | - | 50mA | 10Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
MCZ1210DH500CPTD25CMC 100MA 2LN 45OHM SMD AEC-Q200 |
11,432 |
|
Datasheet |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 45 Ohms @ 100 MHz | - | 100mA | 2.5Ohm | 5V | - | -40°C ~ 105°C | AEC-Q200 | - | - | - | - |
|
|
DLW21SH121HQ2LCMC 280MA 2LN 120OHM SMD AECQ200 |
3,320 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 120 Ohms @ 100 MHz | - | 280mA | 416mOhm | 20V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
ACMP-3225-900-TCMC 1A 2LN 90 OHM SMD |
1,266 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 90 Ohms @ 100 MHz | - | 1A | 50mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
ICM0805ER121MCMC 370MA 2LN 120 OHM SMD |
7,859 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 120 Ohms @ 100 MHz | - | 370mA | 300mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
PE-0805CCMC261STSCMC 300MA 2LN 260 OHM SMD |
35,599 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 260 Ohms @ 100 MHz | - | 300mA | 400mOhm | 50V | - | - | - | - | - | - | - |
|
|
ACE2V3225-201-RCMC 200UH 70MA 2LN 9.5KOHM SMD |
5,589 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 9.5 kOhms @ 10 MHz | 200 µH @ 100 kHz | 70mA | 5.5Ohm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
EXC-28CE121UCMC 140MA 4LN 120 OHM SMD |
5,263 |
|
Datasheet |
0804 (2010 Metric), 8 Lead | Signal Line | 4 | 120 Ohms @ 100 MHz | - | 140mA | 2Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
EXC-28CE900UCMC 160MA 4LN 90 OHM SMD |
2,912 |
|
Datasheet |
0804 (2010 Metric), 8 Lead | Signal Line | 4 | 90 Ohms @ 100 MHz | - | 160mA | 1.5Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
748032455CMC 245 PH 300MA 2LN 1.6 OHM SMD |
2,000 |
|
Datasheet |
0504 (1210 Metric), 6 PC Pad | Signal Line | 2 | 1.6 Ohms @ 100 MHz | 245 pH @ 100 MHz | 300mA | 2.5Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
SRF3216A-261YCMC 300MA 2LN 260OHM SMD AECQ200 |
3,720 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 260 Ohms @ 100 MHz | - | 300mA | 500mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
SRF3216A-900YCMC 400MA 2LN 90OHM SMD AEC-Q200 |
2,768 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 400mA | 300mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
ACMS-Q3225-101-TCMC 100UH 150MA 2LN 5.1KOHM SMD |
5,047 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 5.1 kOhms @ 10 MHz | 100 µH @ 100 kHz | 150mA | 1.5Ohm | 80V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
2752045447CMC 2LN 58 OHM SMD |
1,722 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 58 Ohms @ 100 MHz | - | - | - | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
EXC-24CG240UCMC 160MA 2LN 24 OHM SMD |
4,376 |
|
Datasheet |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 24 Ohms @ 100 MHz | - | 160mA | 1.5Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
ACE1V2012-121-RCMC 370MA 2LN 120OHM SMD AECQ200 |
1,730 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 120 Ohms @ 100 MHz | - | 370mA | 300mOhm | 50V | - | -40°C ~ 105°C | AEC-Q200 | - | - | - | - |
|
ECMF04-4HSM10YCMC 100MA 4LN SMD ESD |
2,500 |
|
Datasheet |
10-UFDFN | Signal Line | 4 | - | - | 100mA | 5Ohm (Typ) | - | - | -55°C ~ 125°C | - | - | TVS Diode ESD Protection | - | - |
|
ICM1206ER601MCMC 260MA 2LN 600 OHM SMD |
6,060 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 600 Ohms @ 100 MHz | - | 260mA | 800mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
ACE1V4532-510-RCMC 51UH 200MA 2LN 2KOHM SMD |
3,563 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 2 kOhms @ 10 MHz | 51 µH @ 100 kHz | 200mA | 1Ohm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
SRF4530A-510YHCMC 51UH 230MA 2LN 3.5KOHM SMD |
2,530 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 3.5 kOhms @ 10 MHz | 51 µH @ 100 kHz | 230mA | 1Ohm | 50V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
