Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMS3-7-RCMC 258UH 2.45A 2LN SMD |
593 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 258 µH @ 100 kHz | 2.45A | 27mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|
744834622CMC 2.2MH 6A 2LN TH |
109 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 10 kHz | 6A | 22mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
B82722S0193A041CMC 160UH 19A 2LN SMD |
768 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 160 µH @ 100 kHz | 19A | 2.5mOhm | 80V | 48V | - | - | - | - | - | - |
|

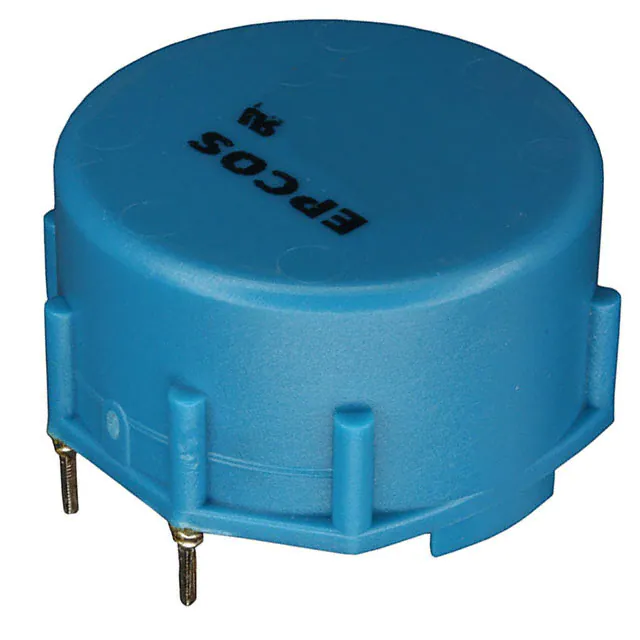

B82725A2103N001CMC 1.8MH 10A 2LN TH |
409 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.8 mH @ 10 kHz | 10A | 14mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
7121-RCCMC 42.5MH 2A 2LN TH |
191 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | - | 2 | - | 42.5 mH @ 1 kHz | 2A | 200mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

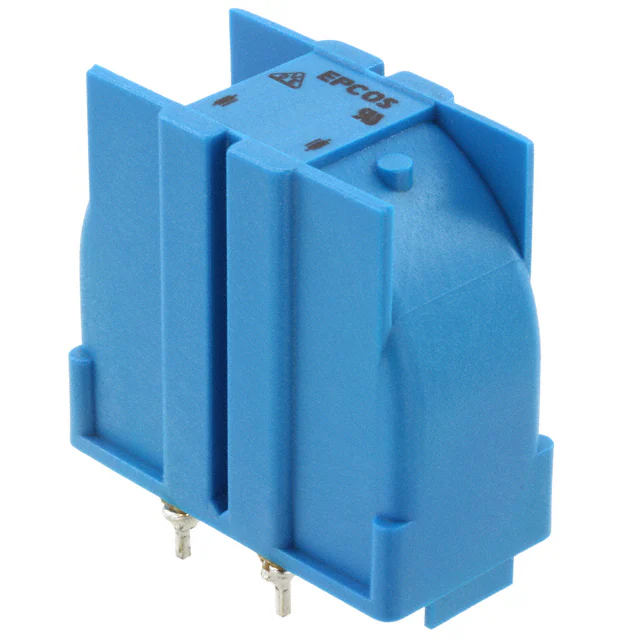

B82725J2802N020CMC 3.9MH 8A 2LN TH |
828 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.7 mH @ 10 kHz | 8A | 31mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82725A2402N001CMC 6.8MH 4A 2LN TH |
426 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 4A | 80mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|

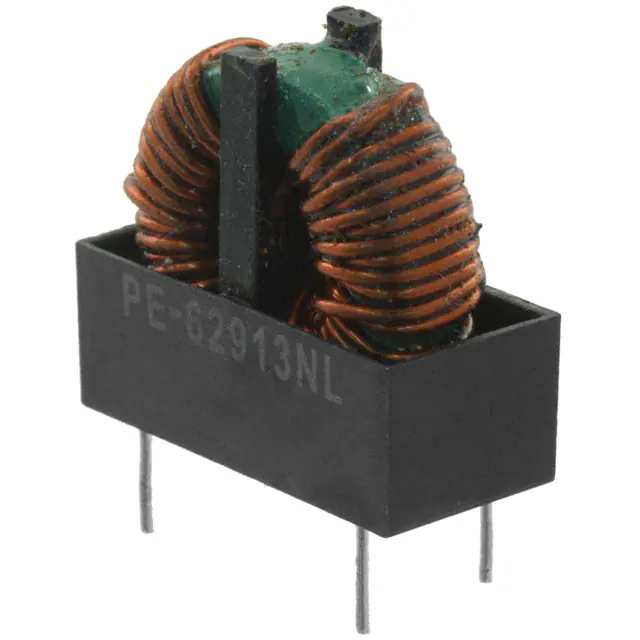

PE-62913NLCMC 1MH 6A 2LN TH |
470 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 6A | 20mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
B82725A2802N001CMC 2.7MH 8A 2LN TH |
222 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2.7 mH @ 10 kHz | 8A | 22mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
PH9455.356NLCMC 35MH 4A 2LN 21K OHM TH |
1,154 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | 21 kOhms @ 330 kHz | 35 mH @ 330 kHz | 4A | 80mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
SCF-02-1300CMC 13MH 2A 2LN TH |
2,261 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 13 mH @ 10 kHz | 2A | 115mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

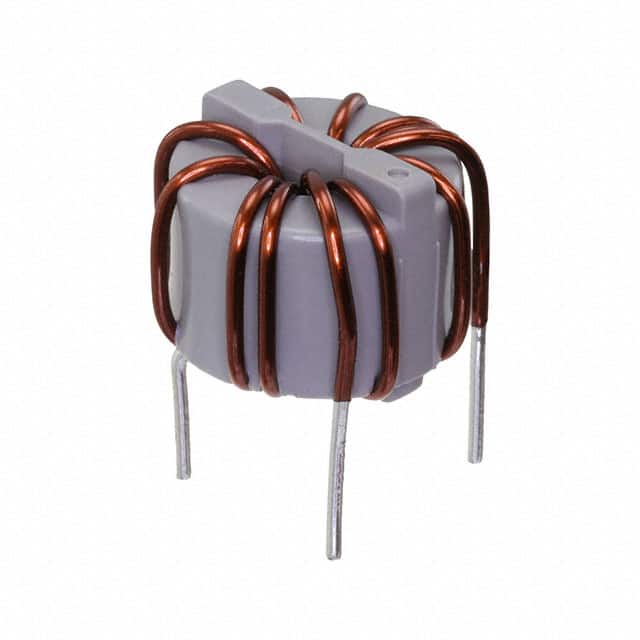

SCF-03-650CMC 6.5MH 3A 2LN TH |
1,986 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 6.5 mH @ 10 kHz | 3A | 70mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
CMT908-V1CMC 2MH 7.5A 2LN TH ESD |
4,677 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 10 kHz | 7.5A | 20mOhm | - | 1500V (1.5kV) | -40°C ~ 125°C | - | CSA, IEC, UL, VDE | - | - | - |
|
CC2824E105R-10CMC 1MH 700MA 2LN 4.25KOHM SMD |
1,423 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | 4.25 kOhms @ 7 MHz | 1 mH @ 100 kHz | 700mA | 260mOhm | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
SCF-03-650HCMC 6.5MH 3A 2LN TH |
1,020 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 6.5 mH @ 10 kHz | 3A | 70mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
CMT-8112CMC 8MH 5.6A 2LN TH ESD |
4,286 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 8 mH @ 1 kHz | 5.6A | 55mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|
|
744834101CMC 1MH 10A 2LN TH |
5,774 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 10A | 12.5mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

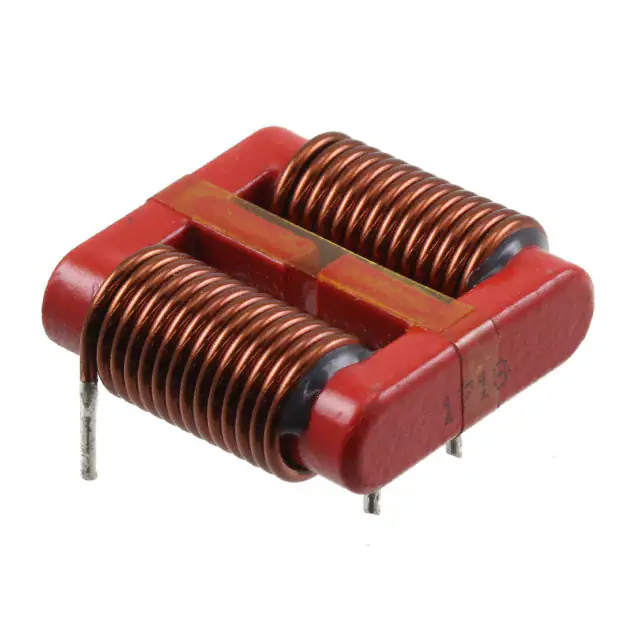

7448680100CMC 450UH 10A 2LN TH |
425 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 450 µH @ 10 kHz | 10A | 9.6mOhm | - | 250V | -40°C ~ 115°C | - | - | - | - | - |
|
7448680140CMC 230UH 16A 2LN TH |
323 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 230 µH @ 10 kHz | 16A | 3.6mOhm | - | 250V | -40°C ~ 115°C | - | - | - | - | - |
|
RN152-6-02-3M9CMC 3.9MH 6A 2LN TH |
140 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.9 mH @ 10 kHz | 6A | 42mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
