Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMT908-V2CMC 4MH 5.2A 2LN TH ESD |
329 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4 mH @ 10 kHz | 5.2A | 40mOhm | - | 1500V (1.5kV) | -40°C ~ 125°C | - | CSA, IEC, UL, VDE | - | - | - |
|
SCF19XV-080-1R0A011JHCMC 1.5MH 8A 2LN TH AEC-Q200 |
127 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 100 kHz | 8A | 8.98mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

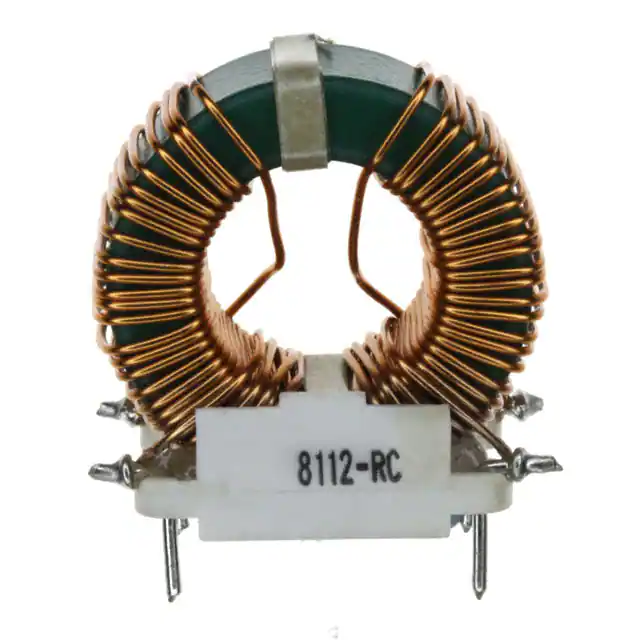

8112-RCCMC 8MH 5.6A 2LN TH |
2,211 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 8 mH @ 1 kHz | 5.6A | 55mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
B82745S6123N002CMC 350UH 12A 3LN TH |
320 |
|
Datasheet |
Vertical, 6 Flat Lead | Power Line | 3 | - | 350 µH @ 100 kHz | 12A | 3.7mOhm (Typ) | - | 440/250V | -40°C ~ 125°C | - | - | - | - | - |
|
PL8204CMC 5.6A 2LN SMD |
169 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 5.6A | 21mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
PL8209CMC 1.63A 2LN SMD |
128 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 1.63A | 110mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|

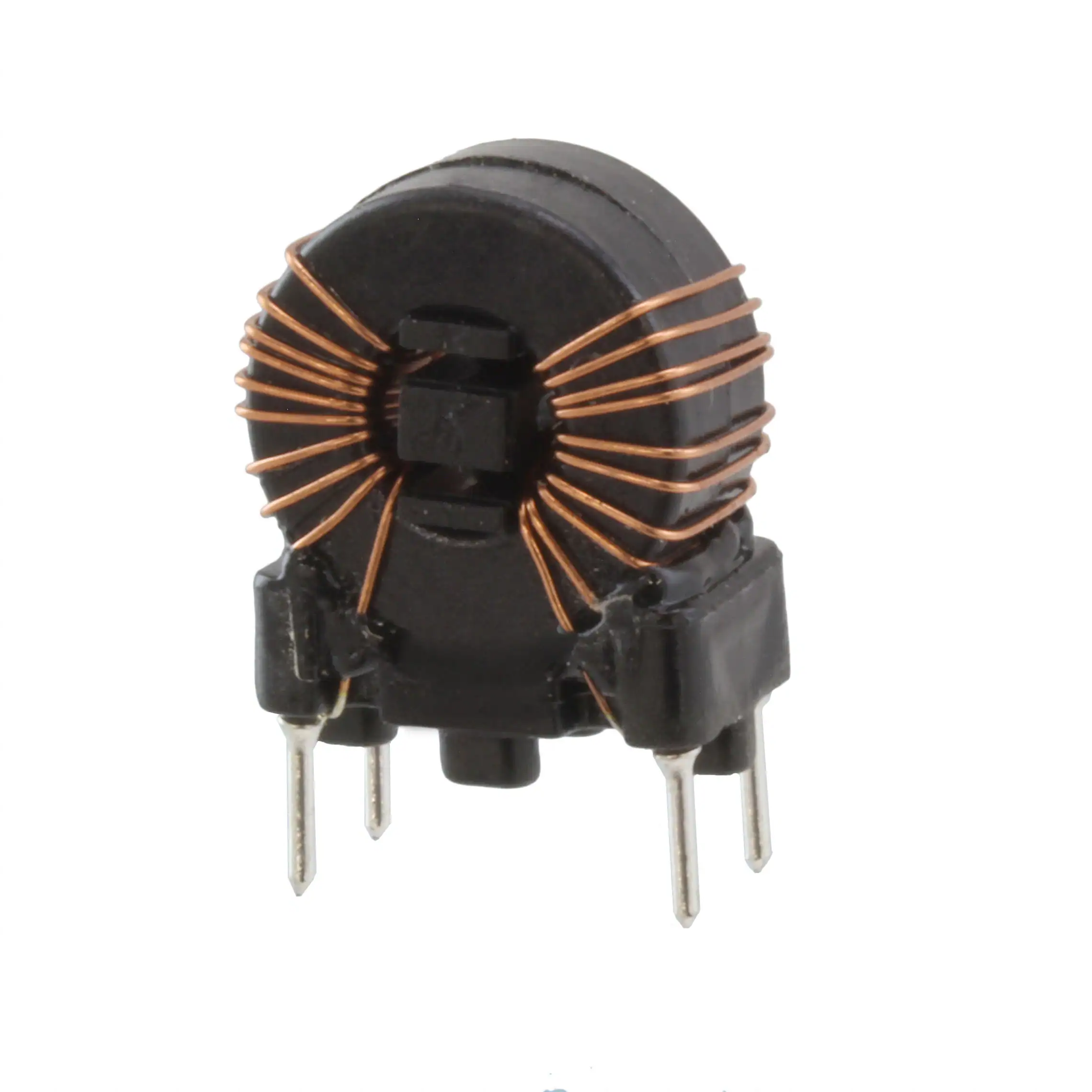

7448012002CMC 1.6MH 2A 2LN TH |
3,964 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.6 mH @ 10 kHz | 2A | 90mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

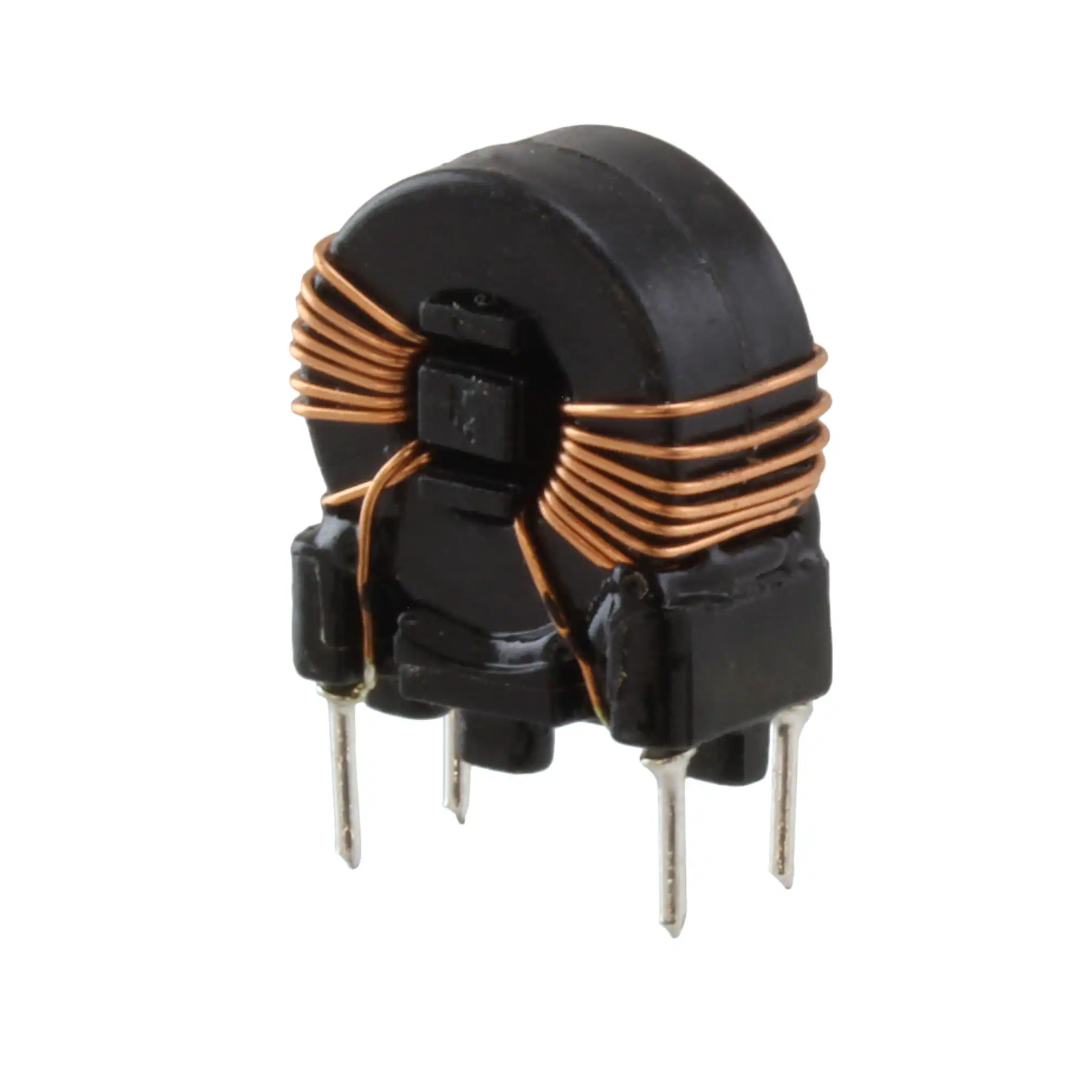

7448012501CMC 1MH 2.5A 2LN TH |
571 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 2.5A | 55mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7448014501CMC 400UH 4.5A 2LN TH |
434 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 400 µH @ 10 kHz | 4.5A | 22mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7448011305CMC 5MH 1.3A 2LN TH |
268 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 10 kHz | 1.3A | 200mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
PL8205CMC 4.7A 2LN SMD |
233 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 4.7A | 40mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
7448013501CMC 500UH 3.5A 2LN TH |
133 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 500 µH @ 10 kHz | 3.5A | 33mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
PL8210NLCMC 1.22A 2LN SMD |
1,211 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 1.22A | 200mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|

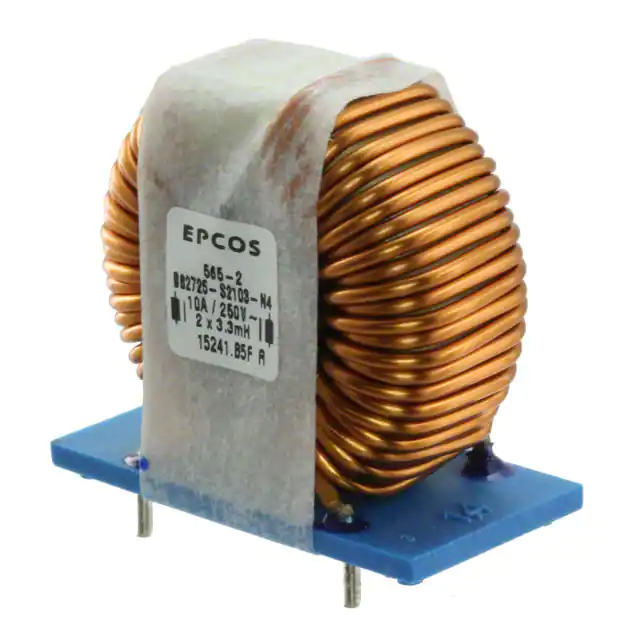

B82725S2103N004CMC 3.3MH 10A 2LN TH |
417 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 10A | 13.5mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
IHCM2321AAEG251N10CMC 250UH 14A 2LN 850 OHM SMD |
779 |
|
Datasheet |
Horizontal, 4 Flat Lead | Power Line | 2 | 850 Ohms @ 10 MHz | 250 µH @ 100 kHz | 14A | 5mOhm | - | - | -40°C ~ 155°C | - | - | - | - | - |
|
|
IHCM2321AAEG301N10CMC 300UH 10A 2LN 900 OHM SMD |
322 |
|
Datasheet |
Horizontal, 4 Flat Lead | Power Line | 2 | 900 Ohms @ 10 MHz | 300 µH @ 100 kHz | 10A | 7mOhm | - | - | -40°C ~ 155°C | - | - | - | - | - |
|
|
IHCM2321AAEG900N10COMMON MODE CHOKE 90UH 380 SMD |
160 |
|
Datasheet |
Horizontal, 4 Flat Lead | Power Line | 2 | 380 Ohms @ 10 MHz | 90 µH @ 100 kHz | 31A | 1.5mOhm | - | - | -40°C ~ 155°C | - | - | - | - | - |
|

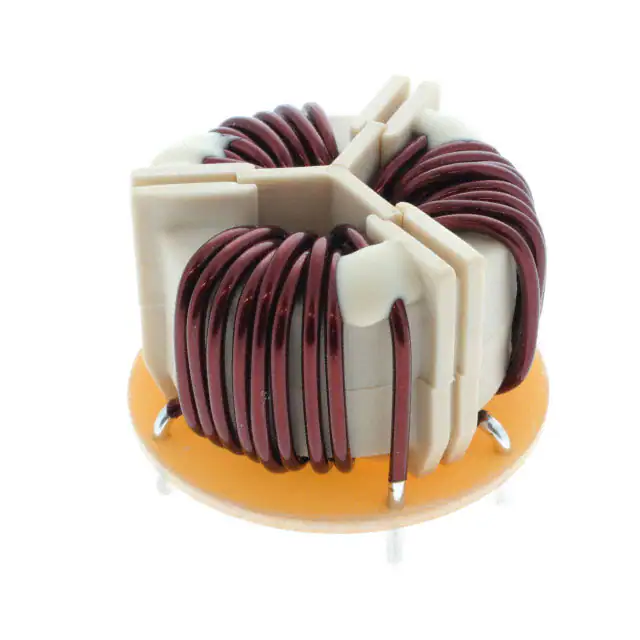

SCF31-150-S1R6A010JHCMC 1MH 15A 3LN TH |
113 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 1 mH @ 100 kHz | 15A | 5.4mOhm | 500V | 500V | -40°C ~ 120°C | - | - | - | - | - |
|
7448030417CMC 17MH 4A 2LN TH |
288 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 17 mH @ 10 kHz | 4A | 52mOhm | - | 300V | -55° C ~ 125°C | - | - | - | - | - |
|
B82727E6223A040CMC 3.3MH 22A 2LN TH |
273 |
|
Datasheet |
Vertical, 8 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 22A | 4.6mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | UR | - | - | - |
