Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

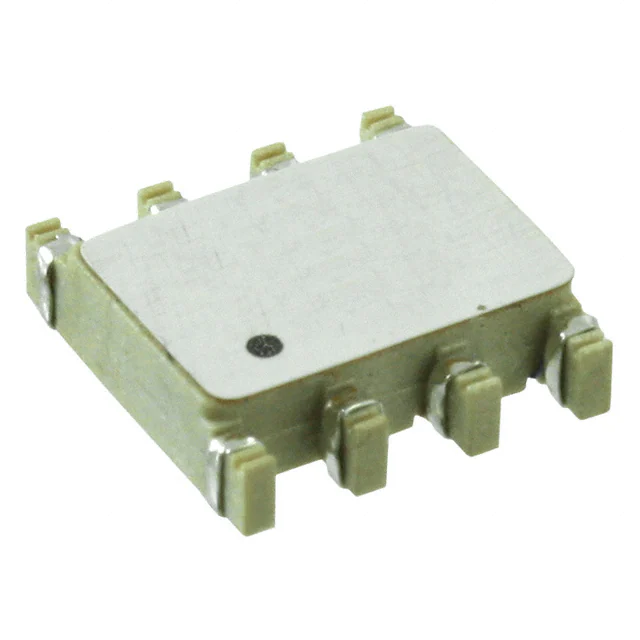

PE-65854NLTCMC 4LN SMD |
2,731 |
|
Datasheet |
Vertical, 8 Flat Lead | Signal Line | 4 | - | - | - | 400mOhm | - | - | 0°C ~ 70°C | - | - | - | - | - |
|
PA5141.505NLTCMC 18A 2LN 1.95K OHM SMD |
155 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1.95 kOhms @ 1.96 MHz | - | 18A | 4.2mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
HCTC-1-10CMC 1MH 10A 2LN TH |
3,352 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 10A | 10mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

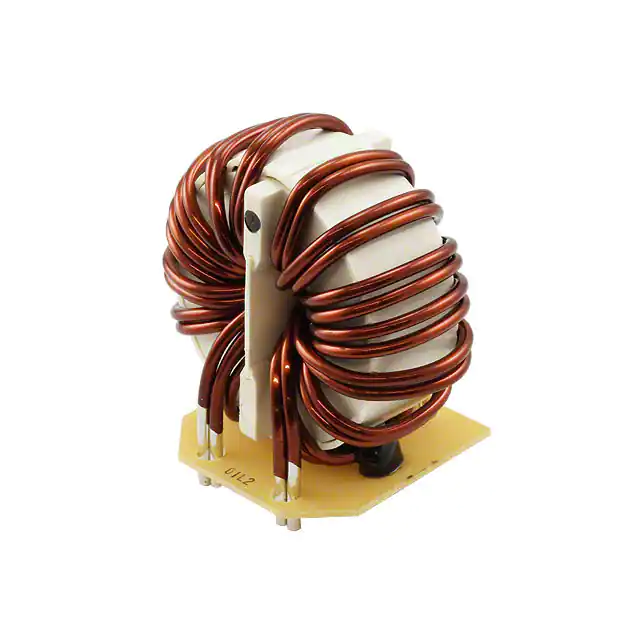

SCR-050-0R9A070JCMC 7MH 5A 2LN TH |
5,436 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 7 mH @ 10 kHz | 5A | 47mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
CMS3-8-RCMC 350UH 2A 2LN SMD |
342 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 350 µH @ 100 kHz | 2A | 40mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|
|
CMS3-9-RCMC 400UH 1.7A 2LN SMD |
1,748 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 400 µH @ 100 kHz | 1.7A | 53mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|
7448229004CMC 350UH 8.5A 2LN TH |
1,308 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 350 µH @ 100 kHz | 8.5A | 7mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
7448251201CMC 1MH 12A 2LN TH |
1,162 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 12A | 9mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

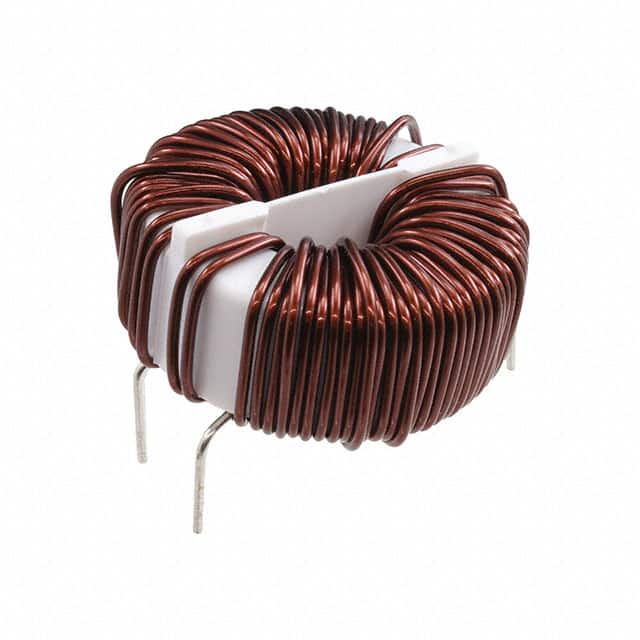

SC-10-100CMC 1MH 10A 2LN TH |
1,069 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 10A | 20mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
7448225007CMC 700UH 5A 2LN TH |
765 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 700 µH @ 100 kHz | 5A | 15mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
744825320CMC 20MH 3A 2LN TH |
119 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 20 mH @ 10 kHz | 3A | 160mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

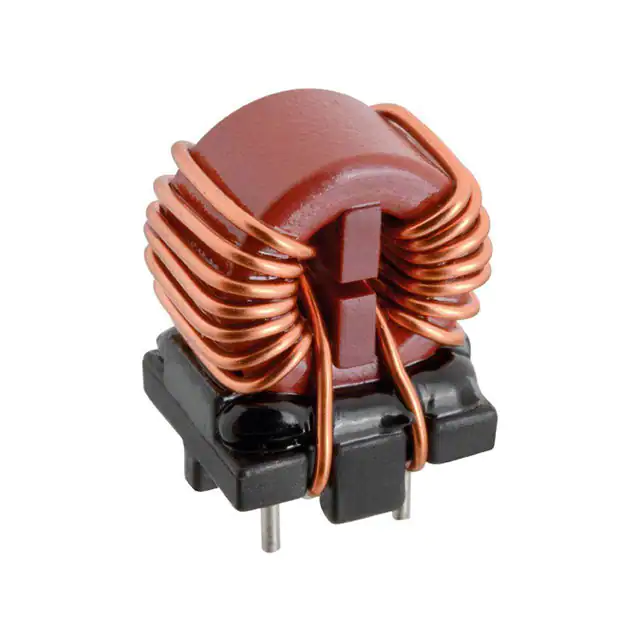

7448226404CMC 350UH 8.5A 2LN TH |
104 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 350 µH @ 100 kHz | 8.5A | 7mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
T60405R6123X210CMC 2.96MH 10A 2LN 3.2K OHM TH |
3,037 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | 3.2 kOhms @ 100 kHz | 2.96 mH @ 100 kHz | 10A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
|

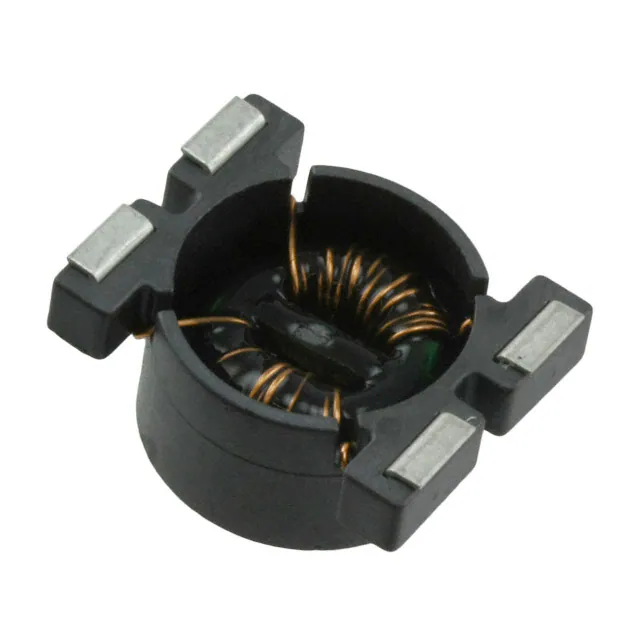

7446632002CMC 2.2MH 2.75A 2LN SMD |
688 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 2.2 mH @ 10 kHz | 2.75A | 100mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7446632001CMC 1MH 3A 2LN SMD |
288 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 1 mH @ 10 kHz | 3A | 60mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7446631007CMC 6.8MH 1.4A 2LN SMD |
251 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 6.8 mH @ 10 kHz | 1.4A | 300mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
CMS3-6-RCMC 217UH 2.85A 2LN SMD |
441 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 217 µH @ 100 kHz | 2.85A | 20mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|

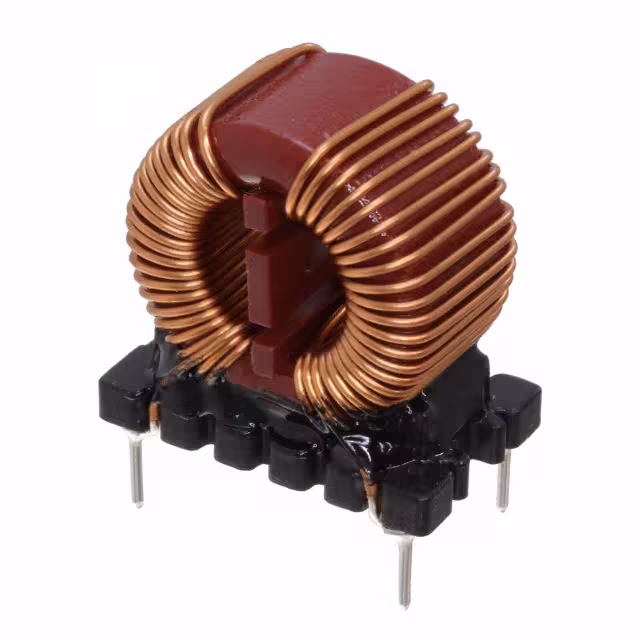

744825605CMC 5MH 6A 2LN TH |
730 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 10 kHz | 6A | - | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

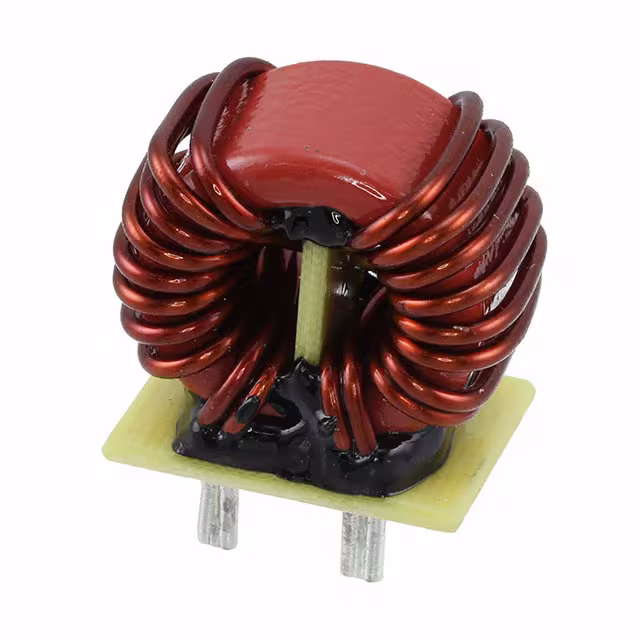

S14100039CMC 285UH 25A 2LN TH |
1,387 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 285 µH @ 10 kHz | 25A | 1.6mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
TCK-076CMC 55UH 5.7A 2LN TH |
154 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 55 µH @ 100 kHz | 5.7A | 8.5mOhm | 500V | - | -40°C ~ 105°C | - | - | - | - | - |
