Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

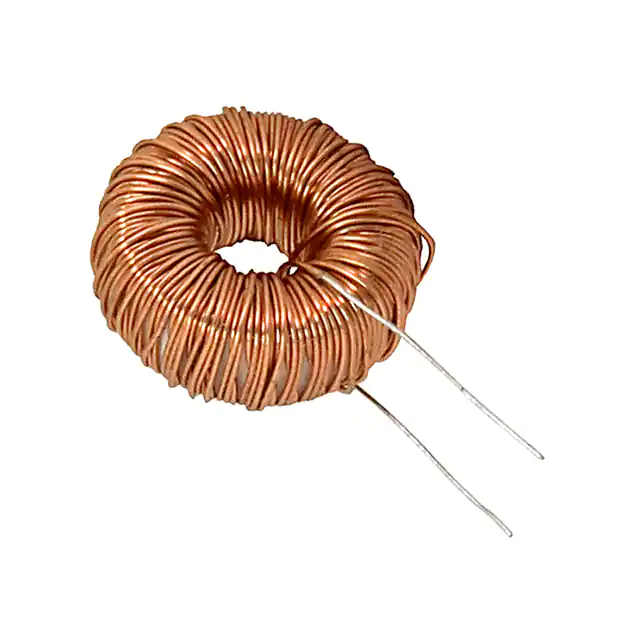

DSO1-48-0002CMC 4A 2LN TH |
0 |
|
Datasheet |
Radial | - | 2 | - | - | 4A | 90mOhm | 600V | - | -40°C ~ 125°C | - | - | - | - | - |
|
SC03H471NB25SFERNICE INDUCTIVES |
0 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
Z20ECMC 5A 2 LN |
0 |
|
Datasheet |
- | Power Line | 2 | - | - | 5A | 150mOhm | - | - | - | - | - | - | - | - |
|
|
36-00029-0670 UH, 80A COMMON MODE INDUCTO |
0 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CM6594-104CMC 100UH 750MA 4LN SMD |
0 |
|
Datasheet |
Vertical, 8 Gull Wing | - | 4 | - | 100 µH @ 1 kHz | 750mA | 130mOhm | - | - | -20°C ~ 80°C | - | - | - | - | - |
|
|
CM6594-105CMC 1MH 300MA 4LN SMD |
0 |
|
Datasheet |
Vertical, 8 Gull Wing | - | 4 | - | 1 mH @ 1 kHz | 300mA | 1.19Ohm | - | - | -20°C ~ 80°C | - | - | - | - | - |
|
|
CM6594-154CMC 150UH 600MA 4LN SMD |
0 |
|
Datasheet |
Vertical, 8 Gull Wing | - | 4 | - | 150 µH @ 1 kHz | 600mA | 190mOhm | - | - | -20°C ~ 80°C | - | - | - | - | - |
|
|
CM6594-155CMC 1.5MH 250MA 4LN SMD |
0 |
|
Datasheet |
Vertical, 8 Gull Wing | - | 4 | - | 1.5 mH @ 1 kHz | 250mA | 1.9Ohm | - | - | -20°C ~ 80°C | - | - | - | - | - |
|
|
CM6594-253CMC 25UH 1A 4LN SMD |
0 |
|
Datasheet |
Vertical, 8 Gull Wing | - | 4 | - | 25 µH @ 1 kHz | 1A | 40mOhm | - | - | -20°C ~ 80°C | - | - | - | - | - |
|
|
CM6594-254CMC 250UH 500MA 4LN SMD |
0 |
|
Datasheet |
Vertical, 8 Gull Wing | - | 4 | - | 250 µH @ 1 kHz | 500mA | 320mOhm | - | - | -20°C ~ 80°C | - | - | - | - | - |
|
|
CM6594-503CMC 50UH 900MA 4LN SMD |
0 |
|
Datasheet |
Vertical, 8 Gull Wing | - | 4 | - | 50 µH @ 1 kHz | 900mA | 70mOhm | - | - | -20°C ~ 80°C | - | - | - | - | - |
|
|
CM6594-504CMC 500UH 450MA 4LN SMD |
0 |
|
Datasheet |
Vertical, 8 Gull Wing | - | 4 | - | 500 µH @ 1 kHz | 450mA | 560mOhm | - | - | -20°C ~ 80°C | - | - | - | - | - |
|
|
CM6594-754CMC 750UH 380MA 4LN SMD |
0 |
|
Datasheet |
Vertical, 8 Gull Wing | - | 4 | - | 750 µH @ 1 kHz | 380mA | 900mOhm | - | - | -20°C ~ 80°C | - | - | - | - | - |
|
|
CM6594R-104CMC 100UH 750MA 4LN SMD |
0 |
|
Datasheet |
Vertical, 8 Gull Wing | - | 4 | - | 100 µH @ 1 kHz | 750mA | 130mOhm | - | - | -20°C ~ 80°C | - | - | - | - | - |
|
|
CM6594R-105CMC 1MH 300MA 4LN SMD |
0 |
|
Datasheet |
Vertical, 8 Gull Wing | - | 4 | - | 1 mH @ 1 kHz | 300mA | 1.19Ohm | - | - | -20°C ~ 80°C | - | - | - | - | - |
|
|
CM6594R-154CMC 150UH 600MA 4LN SMD |
0 |
|
Datasheet |
Vertical, 8 Gull Wing | - | 4 | - | 150 µH @ 1 kHz | 600mA | 190mOhm | - | - | -20°C ~ 80°C | - | - | - | - | - |
|
|
CM6594R-155CMC 1.5MH 250MA 4LN SMD |
0 |
|
Datasheet |
Vertical, 8 Gull Wing | - | 4 | - | 1.5 mH @ 1 kHz | 250mA | 1.9Ohm | - | - | -20°C ~ 80°C | - | - | - | - | - |
|
|
CM6594R-253CMC 25UH 1A 4LN SMD |
0 |
|
Datasheet |
Vertical, 8 Gull Wing | - | 4 | - | 25 µH @ 1 kHz | 1A | 40mOhm | - | - | -20°C ~ 80°C | - | - | - | - | - |
|
|
CM6594R-254CMC 250UH 500MA 4LN SMD |
0 |
|
Datasheet |
Vertical, 8 Gull Wing | - | 4 | - | 250 µH @ 1 kHz | 500mA | 320mOhm | - | - | -20°C ~ 80°C | - | - | - | - | - |
|
|
CM6594R-503CMC 50UH 900MA 4LN SMD |
0 |
|
Datasheet |
Vertical, 8 Gull Wing | - | 4 | - | 50 µH @ 1 kHz | 900mA | 70mOhm | - | - | -20°C ~ 80°C | - | - | - | - | - |
