Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
CMK-07-T0.7MM*8/2T 0.08MHH0.16MH (TRAY |
0 |
|
- |
Horizontal, 4 PC Pin | - | 2 | - | 120 µH @ 10 kHz | 45A | 0.7mOhm | - | - | - | - | - | - | - | - |
|
|
CMF5-1505VMLFVERTICAL MOUNT COMMON MODE CHOKE |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 2.2A | 250mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CMK-05-T0.8MM*2/10T 0.491MHH0.953MH V1 |
0 |
|
- |
Horizontal, 4 PC Pin | - | 2 | - | 720 µH @ 10 kHz | 20A | 7mOhm | - | - | - | - | - | - | - | - |
|
|
CMK-04-T0.4MM/13T 1MH MIN BASE V1.0 (5 |
0 |
|
- |
Vertical, 4 PC Pin | - | 2 | - | 1.7 mH @ 10 kHz | 3.2A | 41mOhm | - | - | - | - | - | - | - | - |
|
DKLP-0233-2012CMC 20A 2LN TH |
0 |
|
Datasheet |
Nonstandard | - | 2 | - | - | 20A | 19mOhm | 760V | 540V | -25°C ~ 100°C | - | UR | - | - | - |
|
DKLP-0333-1610CMC 16A 3LN TH |
0 |
|
Datasheet |
Nonstandard | - | 3 | - | - | 16A | 30mOhm | 760V | 540V | -25°C ~ 100°C | - | UR | - | - | - |
|
|
CMK-03-T1.0MM/14T 1MH MIN (24 PCS TRAY |
0 |
|
- |
Horizontal, 4 PC Pin | - | 2 | - | 1.5 mH @ 100 kHz | 9.4A | 9.5mOhm | - | - | - | - | - | - | - | - |
|
|
CMK-06-T0.8MM*4/4T 0.352MHH0.683MH (T |
0 |
|
- |
Horizontal, 4 PC Pin | - | 2 | - | 520 µH @ 10 kHz | 30A | 1.5mOhm | - | - | - | - | - | - | - | - |
|
Z30ECMC 20A 2 LN |
0 |
|
Datasheet |
- | Power Line | 2 | - | - | 20A | 85mOhm | - | - | - | - | - | - | - | - |
|
|
1398136-1RD8137-16-5MO CHOKE, COMMON M |
0 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
T60405S6123X3116123X311 |
0 |
|
- |
Horizontal, 6 PC Pin | Power Line | 3 | 410 Ohms @ 100 kHz | 642 nH @ 100 kHz | 110A | 0.74mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
CMK-02-C0.8MM/20T 3.10115.395MH (270 P |
0 |
|
- |
Horizontal, 4 PC Pin | - | 2 | - | 4.2 mH @ 1 kHz | 5A | 32mOhm | - | - | - | - | - | - | - | - |
|
|
CMK-01-C1.0MM/16T 2.7MH MIN (270 PCS P |
0 |
|
- |
Horizontal, 4 PC Pin | - | 2 | - | 3.9 mH @ 1 kHz | 9.4A | 20mOhm | - | - | - | - | - | - | - | - |
|
|
CMK-05-C0.8MM*2/10T 0.491MHH0.953MH (C |
0 |
|
- |
Horizontal, 4 PC Pin | - | 2 | - | 720 µH @ 10 kHz | 20A | 7mOhm | - | - | - | - | - | - | - | - |
|
|
CMK-07-C0.7MM*8/2T 0.08MHH0.16MH (CART |
0 |
|
- |
Horizontal, 4 PC Pin | - | 2 | - | 120 µH @ 10 kHz | 45A | 0.7mOhm | - | - | - | - | - | - | - | - |
|
|
CMK-03-C1.0MM/14T 1MH MIN (624 PCS PER |
0 |
|
- |
Horizontal, 4 PC Pin | - | 2 | - | 1.5 mH @ 100 kHz | 9.4A | 9.5mOhm | - | - | - | - | - | - | - | - |
|
|
CMK-06-C0.8MM*4/4T 0.352MHH0.683MH |
0 |
|
- |
Horizontal, 4 PC Pin | - | 2 | - | 520 µH @ 10 kHz | 30A | 1.5mOhm | - | - | - | - | - | - | - | - |
|
|
CMK-04-C0.4MM/13T 1MH MIN BASE (2090 P |
0 |
|
- |
Vertical, 4 PC Pin | - | 2 | - | 1.7 mH @ 10 kHz | 3.2A | 41mOhm | - | - | - | - | - | - | - | - |
|

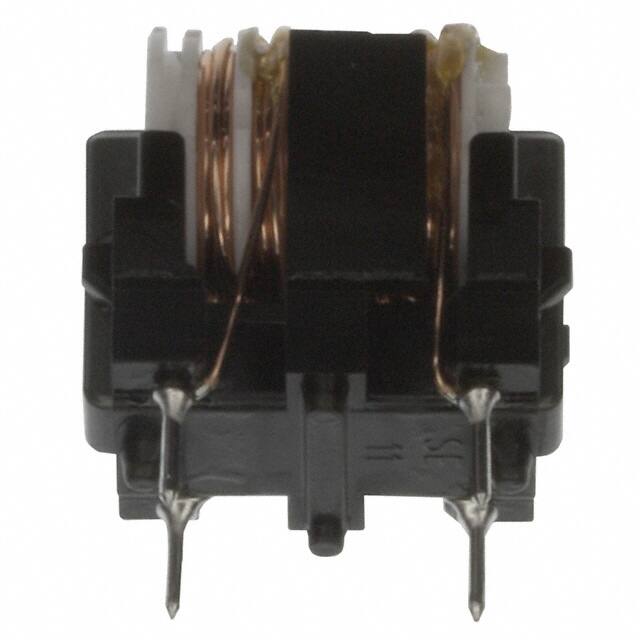

ELF-18D290BCMC 2A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 2A | 72mOhm (Typ) | - | - | - | - | - | - | - | - |
|
ELF-18D850YCMC 3.5A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 3.5A | 60mOhm (Typ) | - | - | - | - | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
