Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM1011-254CMC 250UH 10A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 250 µH @ 1 kHz | 10A | 6mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM1011-504CMC 500UH 8.6A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 500 µH @ 1 kHz | 8.6A | 8mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM1011-754CMC 750UH 6.7A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 750 µH @ 1 kHz | 6.7A | 13mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM1011-105CMC 1MH 5.7A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 1 mH @ 1 kHz | 5.7A | 18mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM1011-175CMC 1.7MH 3.1A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 1.7 mH @ 1 kHz | 3.1A | 60mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM1011-255CMC 2.5MH 2.8A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 2.5 mH @ 1 kHz | 2.8A | 73mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM1011-335CMC 3.3MH 2.2A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 3.3 mH @ 1 kHz | 2.2A | 125mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM1011-505CMC 5MH 2A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 5 mH @ 1 kHz | 2A | 150mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM1011-755CMC 7.5MH 1.4A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 7.5 mH @ 1 kHz | 1.4A | 300mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM1011-106CMC 10MH 1.2A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 10 mH @ 1 kHz | 1.2A | 390mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|

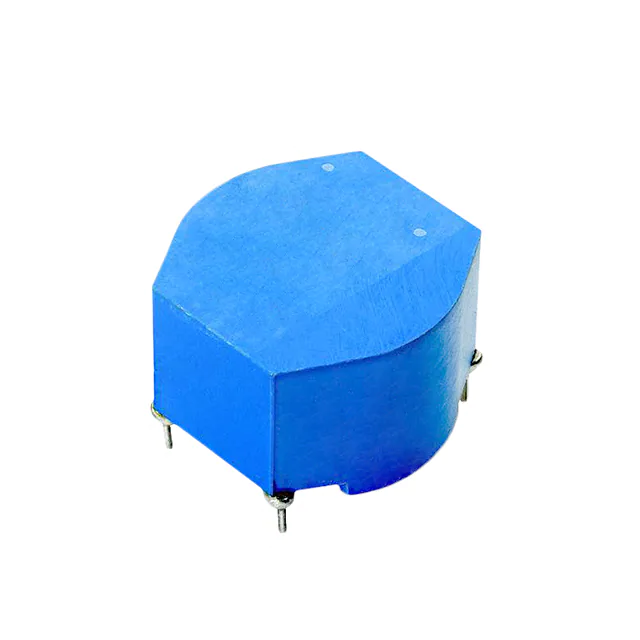

CM1011R-104CMC 100UH 12A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 100 µH @ 1 kHz | 12A | 4mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM1011R-105CMC 1MH 5.7A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 1 mH @ 1 kHz | 5.7A | 18mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM1011R-106CMC 10MH 1.2A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 10 mH @ 1 kHz | 1.2A | 390mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM1011R-175CMC 1.7MH 3.1A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 1.7 mH @ 1 kHz | 3.1A | 60mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM1011R-254CMC 250UH 10A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 250 µH @ 1 kHz | 10A | 6mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM1011R-335CMC 3.3MH 2.2A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 3.3 mH @ 1 kHz | 2.2A | 125mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM1011R-505CMC 5MH 2A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 5 mH @ 1 kHz | 2A | 150mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM1011R-754CMC 750UH 6.7A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 750 µH @ 1 kHz | 6.7A | 13mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM1011R-755CMC 7.5MH 1.4A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 7.5 mH @ 1 kHz | 1.4A | 300mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
DFK-40-0005CMC 15A 2LN TH |
3 |
|
Datasheet |
Nonstandard | - | 2 | - | - | 15A | 10mOhm | - | - | -25°C ~ 100°C | - | - | - | - | - |
Common Mode Chokes Electronic Components
Frequently Asked Questions
Q1: What products are included in Common Mode Chokes?
This category includes related Common Mode Chokes subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Common Mode Chokes components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Common Mode Chokes and other electronic components.
