Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELF-18D416CMC 2.2MH 2A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 2.2 mH @ 1 kHz | 2A | 109mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
ELF-18D290TCMC 1.3A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 1.3A | 186mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-18D428CMC 33MH 500MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 33 mH @ 1 kHz | 500mA | 1.184Ohm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
ELF-18D850TCMC 1A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 1A | 608mOhm (Typ) | - | - | - | - | - | - | - | - |
|

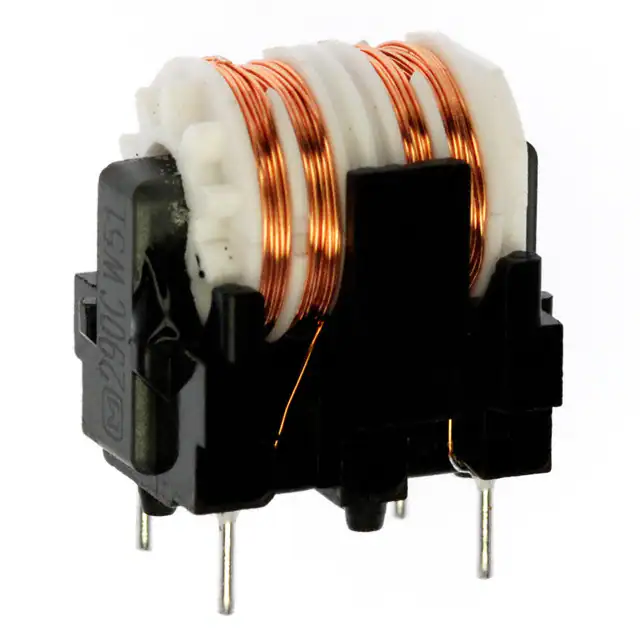

ELF-18D290CCMC 400MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 400mA | 1.707Ohm (Typ) | - | - | - | - | - | - | - | - |
|

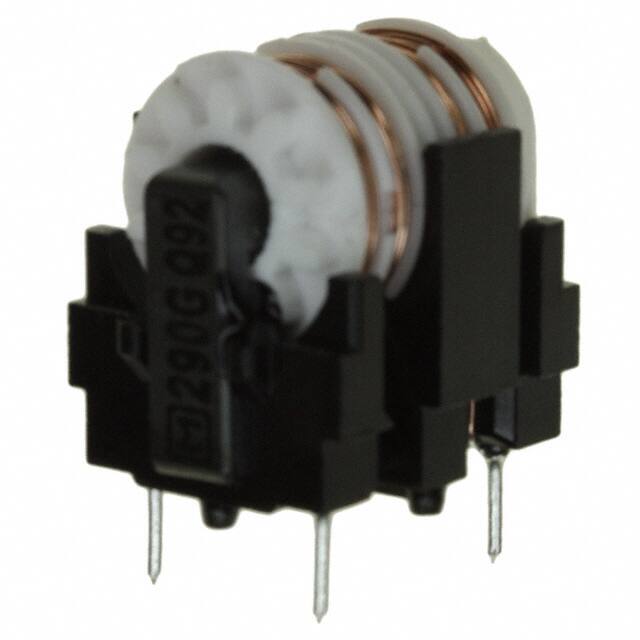

ELF-18D290GCMC 600MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 600mA | 782mOhm (Typ) | - | - | - | - | - | - | - | - |
|

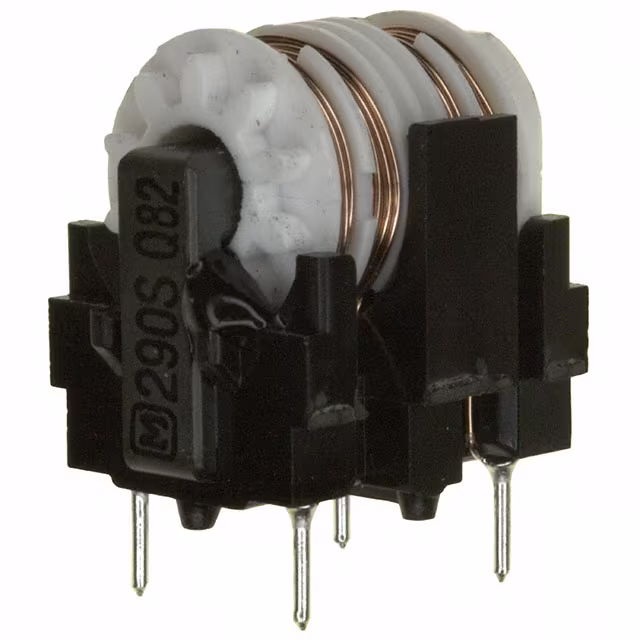

ELF-18D290SCMC 1.1A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 1.1A | 277mOhm (Typ) | - | - | - | - | - | - | - | - |
|
ELF-18D218CMC 22MH 400MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 22 mH @ 1 kHz | 400mA | 1.564Ohm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
ELF-18D290HCMC 300MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 300mA | 2.691Ohm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-18D435FCMC 2.2MH 2.2A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 2.2 mH @ 1 kHz | 2.2A | 84mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
ELF-18D850WCMC 2.5A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 2.5A | 124mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-18D430CMC 12MH 900MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 12 mH @ 1 kHz | 900mA | 595mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
ELF-18D650UCMC 700MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 700mA | 1.212Ohm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-18D221FCMC 33MH 400MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 33 mH @ 1 kHz | 400mA | 1.79Ohm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
ELF-18D650LCMC 1A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 1A | - | - | - | -20°C ~ 105°C | - | - | - | - | - |
|
|
ELF-18D850BCMC 4.2A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 4.2A | 41mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-18D850MCMC 5A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 5A | 28mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-18D650BCMC 2.4A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 2.4A | 101mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-18D419CMC 1.5MH 2.4A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 1.5 mH @ 1 kHz | 2.4A | 76mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
ELF-18D605CMC 3.3MH 2.5A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 3.3 mH @ 1 kHz | 2.5A | 87mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
