Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM6594R-504CMC 500UH 450MA 4LN SMD |
0 |
|
Datasheet |
Vertical, 8 Gull Wing | - | 4 | - | 500 µH @ 1 kHz | 450mA | 560mOhm | - | - | -20°C ~ 80°C | - | - | - | - | - |
|
|
CM6594R-754CMC 750UH 380MA 4LN SMD |
0 |
|
Datasheet |
Vertical, 8 Gull Wing | - | 4 | - | 750 µH @ 1 kHz | 380mA | 900mOhm | - | - | -20°C ~ 80°C | - | - | - | - | - |
|
DKLL-0331-0430CMC 4A 3LN TH |
1 |
|
Datasheet |
Nonstandard | - | 3 | - | - | 4A | 155mOhm | 760V | 540V | -25°C ~ 100°C | - | UR | - | - | - |
|
|
DS1-48-0002CMC 4A 2LN TH |
0 |
|
Datasheet |
Radial | - | 2 | - | - | 4A | 80mOhm | 600V | - | -40°C ~ 125°C | - | - | - | - | - |
|
DKLL-0331-0520CMC 5A 3LN TH |
1 |
|
Datasheet |
Nonstandard | - | 3 | - | - | 5A | 100mOhm | 760V | 540V | -25°C ~ 100°C | - | UR | - | - | - |
|
|
DKLL-0346-0330CMC 3A 3LN TH |
0 |
|
Datasheet |
Nonstandard | - | 3 | - | - | 3A | 130mOhm | 760V | 540V | -25°C ~ 100°C | - | UR | - | - | - |
|
|
DS1-48-0001CMC 3.15A 2LN TH |
0 |
|
Datasheet |
Radial | - | 2 | - | - | 3.15A | 160mOhm | 600V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
Z21ECMC 10A 2 LN |
0 |
|
Datasheet |
- | Power Line | 2 | - | - | 10A | 70mOhm | - | - | - | - | - | - | - | - |
|
|
T60405S6123X1636123X163 |
0 |
|
- |
Horizontal, 6 PC Pin | - | 3 | 620 Ohms @ 100 kHz | 660 µH @ 100 kHz | 63A | 0.86mOhm | - | - | -40°C ~ 60°C | - | - | - | - | - |
|

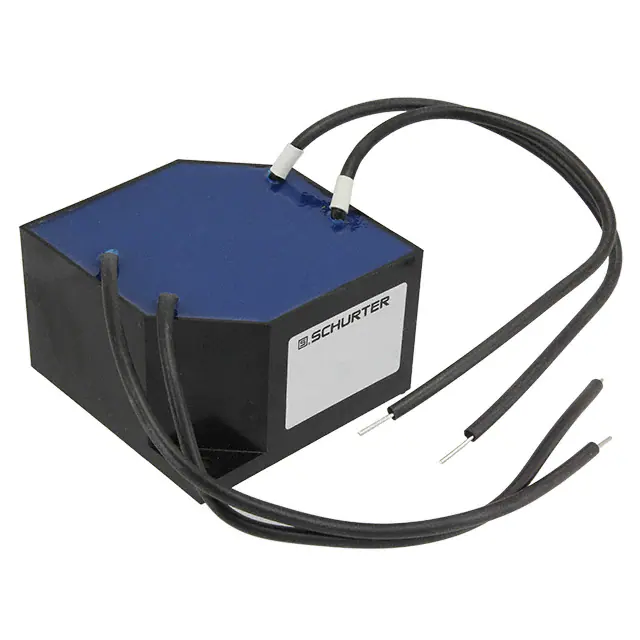

DKLP-0231-0540CMC 5A 2LN TH |
0 |
|
Datasheet |
Nonstandard | - | 2 | - | - | 5A | 126mOhm | 760V | 540V | -25°C ~ 100°C | - | UR | - | - | - |
|
|
CMF5-7503HHRZ MOUNT COMMON MODE CHOKE |
0 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 750 µH @ 10 kHz | 12.5A | 9mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
T60405S6123X3706123X370 |
0 |
|
- |
Horizontal, 6 PC Pin | - | 3 | 415 Ohms @ 100 kHz | 500 nH @ 100 kHz | 70A | 1mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
|
CMF5-7504HHRZ MOUNT COMMON MODE CHOKE |
0 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 7.5 mH @ 10 kHz | 3A | 120mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
T60405R4470X0374470X037 |
0 |
|
- |
Horizontal, 8 PC Pin | - | 2 | - | 250 µH @ 100 kHz | 280A | 1.7mOhm | - | - | -40°C ~ 45°C | - | - | - | - | - |
|
|
CMK-02-T0.8MM/20T 3.10115.395MH ( 15 P |
0 |
|
- |
Horizontal, 4 PC Pin | - | 2 | - | 4.2 mH @ 1 kHz | 5A | 32mOhm | - | - | - | - | - | - | - | - |
|
|
CMF5-2004HHRZ MOUNT COMMON MODE CHOKE |
0 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 2 mH @ 10 kHz | 8.5A | 20mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CMF5-2004HLFHRZ MOUNT COMMON MODE CHOKE |
0 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 2 mH @ 10 kHz | 8.5A | 20mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CMF5-2004VMVERTICAL MOUNT COMMON MODE CHOKE |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 10 kHz | 7.9A | 20mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CMK-01-T1.0MM/16T 2.7MH MIN ( 15 PCS P |
0 |
|
- |
Horizontal, 4 PC Pin | - | 2 | - | 3.9 mH @ 1 kHz | 9.4A | 20mOhm | - | - | - | - | - | - | - | - |
|
|
CMF5-7504VMVERTICAL MOUNT COMMON MODE CHOKE |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 7.5 mH @ 10 kHz | 3.2A | 120mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
