Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82721K2102U030CMC 10MH 1.1A 2LN TH |
526 |
|
Datasheet |
Vertical, 4 PC Pin | Power, Signal Line | 2 | - | 10 mH @ 10 kHz | 1.1A | 310mOhm | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|

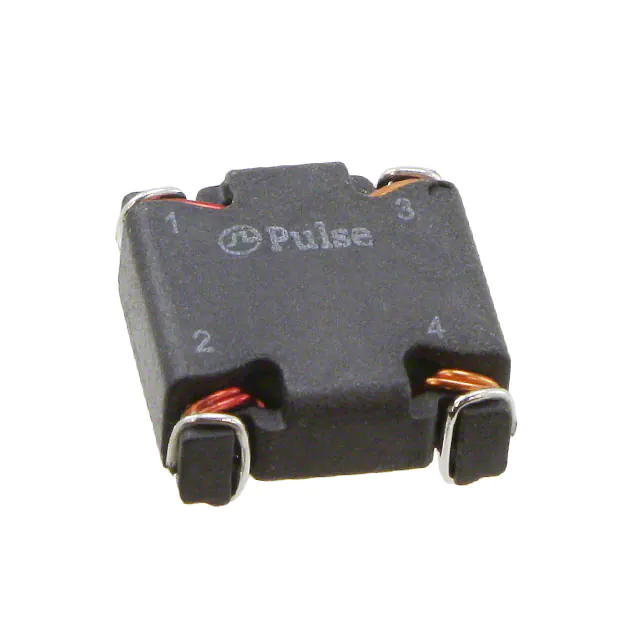

PA2743NLCMC 3.3A 2LN SMD |
2,210 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | - | 3.3A | 18mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
B82730U3401A020CMC 15MH 400MA 2LN TH |
880 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 400mA | 2.4Ohm (Typ) | - | 300V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
B82732R2172B030CMC 6.8MH 1.7A 2LN TH |
15,035 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 1.7A | 190mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|

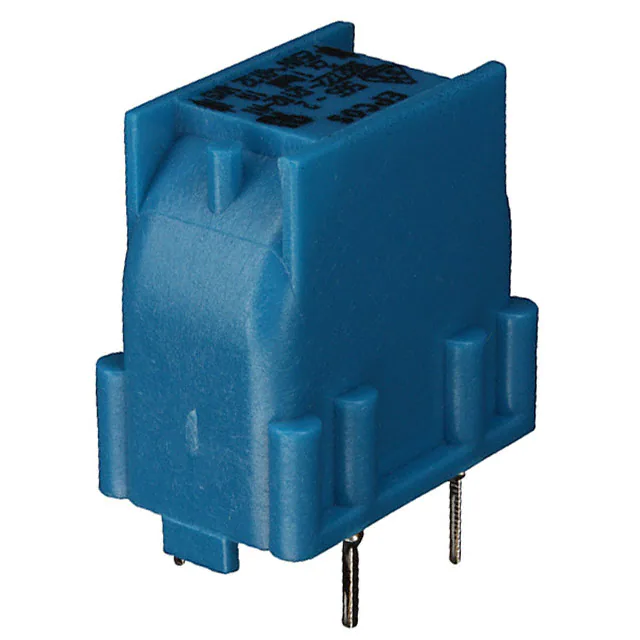

B82722J2102N001CMC 10MH 1A 2LN TH |
4,263 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 1A | 480mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
P0422NLCMC 4.7A 2LN SMD |
9,900 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 4.7A | 40mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
|
CPFC85NP-WH04CMC 5.65A 2LN 300 OHM SMD |
1,587 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 300 Ohms @ 100 MHz | - | 5.65A | 20mOhm | - | - | - | - | - | - | - | - |
|
SC-06-01GCMC 105UH 6A 2LN TH |
650 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 105 µH @ 1 kHz | 6A | 10mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
B82793C0105N265CMC 1MH 700MA 2LN SMD AEC-Q200 |
14,030 |
|
Datasheet |
Horizontal, 4 Gull Wing | Signal Line | 2 | - | 1 mH @ 100 kHz | 700mA | 140mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|

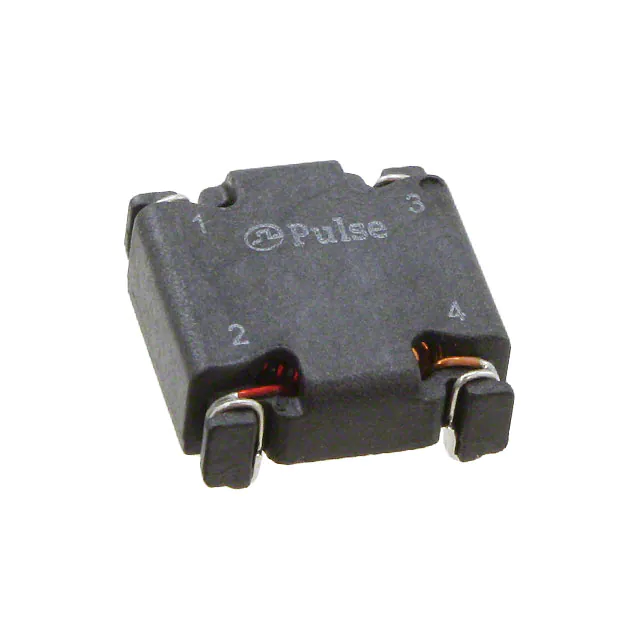

PA2747NLCMC 7A 2LN SMD |
2,778 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | - | 7A | 2.9mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
PA2748NLCMC 1.8A 2LN SMD |
560 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 1.8A | 55mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|

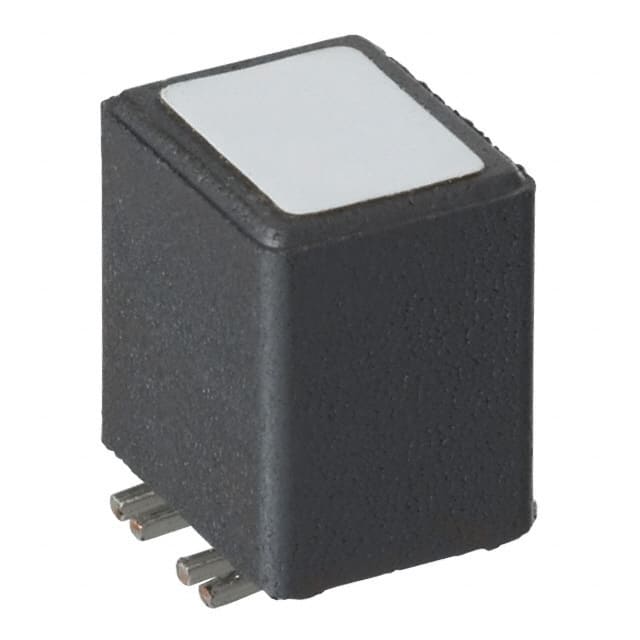

CM2722R151R-10CMC 5A 4LN 150 OHM SMD |
48,137 |
|
Datasheet |
Vertical, 8 Flat Lead | Power Line | 4 | 150 Ohms @ 100 MHz | - | 5A | 20mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
SSRH7H-M20016CMC 1.6MH 2A 2LN TH |
2,799 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 1.6 mH @ 10 kHz | 2A | 90mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

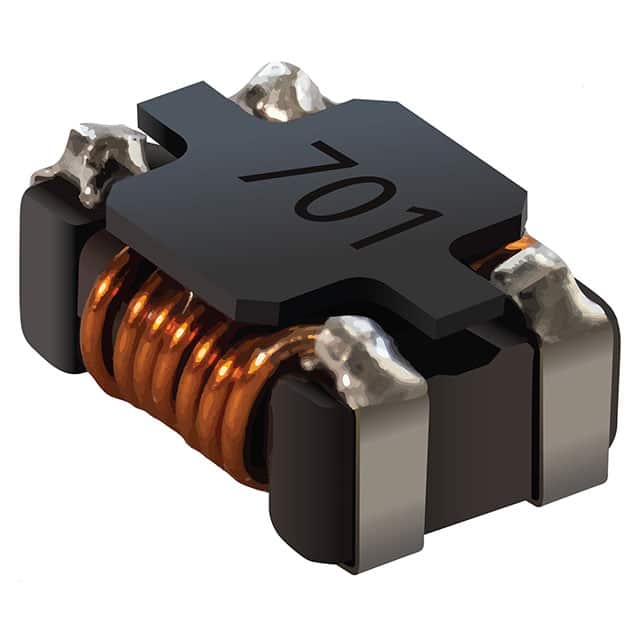

SRF9045A-701YCMC 7.5UH 5A 2LN 700OHM SMD |
2,625 |
|
Datasheet |
4-SMD | Power Line | 2 | 700 Ohms @ 100 MHz | 7.5 µH @ 100 kHz | 5A | 10mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
SSRH7HS-M05324CMC 32.4MH 500MA 2LN TH |
950 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 32.4 mH @ 10 kHz | 500mA | 1.21Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSRH7H-M05408CMC 40.8MH 500MA 2LN TH |
385 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 40.8 mH @ 10 kHz | 500mA | 1.36Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
B82720A2202N040CMC 1.1MH 2A 2LN TH |
1,156 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.1 mH @ 10 kHz | 2A | 65mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
7408-RCCMC 5MH 1.1A 2LN TH |
5,699 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 1 kHz | 1.1A | 280mOhm | - | 250V | -55°C ~ 105°C | - | - | - | - | - |
|
DLW5BSM501TQ2LCMC 1A 2LN 500 OHM SMD |
400 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 500 Ohms @ 100 MHz | - | 1A | 230mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
SRF0602-470YCMC 47UH 300MA 2LN 140 OHM SMD |
5,599 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 140 Ohms @ 4 MHz | 47 µH @ 10 kHz | 300mA | 160mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
