Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

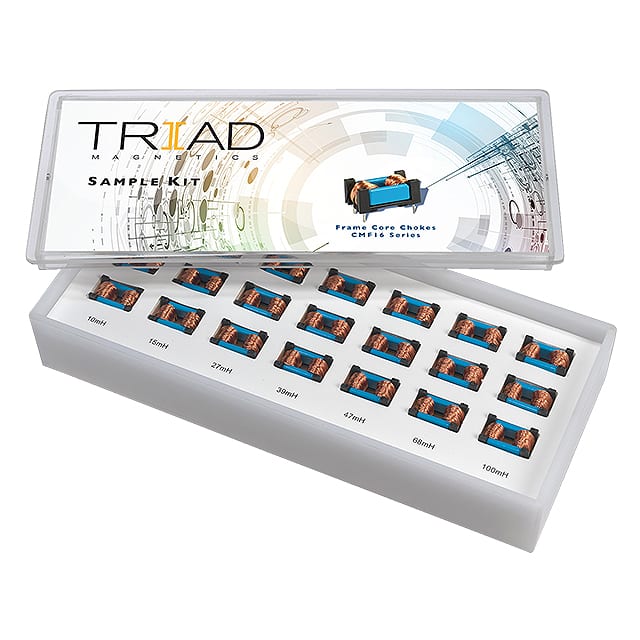

CMF16-153131-BCMC 15MH 1.3A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 1.3A | 470mOhm | - | 300V | -40°C ~ 105°C | - | - | - | - | - |
|
|
CMF16-273900-BCMC 27MH 900MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 900mA | 850mOhm | - | 300V | -40°C ~ 105°C | - | - | - | - | - |
|
|
CMF16-473700-BCMC 47MH 700MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 47 mH @ 10 kHz | 700mA | 1.39Ohm | - | 300V | -40°C ~ 105°C | - | - | - | - | - |
|
|
CMF16-683600-BCMC 68MH 600MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 68 mH @ 10 kHz | 600mA | 2.17Ohm | - | 300V | -40°C ~ 105°C | - | - | - | - | - |
|
|
CMF16-473700COMMON MODE INDUCTOR - L = 47MH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 47 mH @ 10 kHz | 700mA | 1.39Ohm | - | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
CMF16-104450COMMON MODE INDUCTOR - L = 100MH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 100 mH @ 10 kHz | 450mA | 3.22Ohm | - | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
CMF16-393800COMMON MODE INDUCTOR - L = 39MH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 39 mH @ 10 kHz | 800mA | 1.21Ohm | - | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
CMF16-153131COMMON MODE INDUCTOR - L = 15MH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 15 mH @ 10 kHz | 1.3A | 470mOhm | - | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
CMF16-273900COMMON MODE INDUCTOR - L = 27MH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 27 mH @ 10 kHz | 900mA | 850mOhm | - | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
CMF16-103161COMMON MODE INDUCTOR - L = 10MH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 10 mH @ 10 kHz | 1.6A | 320mOhm | - | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
CMF16-683600COMMON MODE INDUCTOR - L = 68MH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 68 mH @ 10 kHz | 600mA | 2.17Ohm | - | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
PE-68627TCMC 4LN SMD |
0 |
|
Datasheet |
Vertical, 8 Flat Lead | Signal Line | 4 | - | - | - | 250mOhm | - | - | - | - | - | - | - | - |
|
CAF-0.7-10CMC 10MH 700MA 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Signal Line | 2 | - | 10 mH @ 10 kHz | 700mA | 647mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
CAF-1.1-6.8CMC 6.8MH 1.1A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Signal Line | 2 | - | 6.8 mH @ 10 kHz | 1.1A | 342mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
CAV-3.6-0.47CMC 470UH 3.6A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | - | 470 µH @ 10 kHz | 3.6A | 28mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
DKFP-C21C-D827DKFP COMP.CHOKE THT P V 0.8A 2X2 |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 800mA | 520mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | cURus | - | - | - |
|
|
MGPWC-00039-PCMC 390UH 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 390 µH @ 10 kHz | - | 15mOhm | - | - | 0°C ~ 70°C | - | - | - | - | - |
|
TCE1608G-900-4P-T200CMC 100MA 4LN 90 OHM SMD ESD |
0 |
|
Datasheet |
0603 (1608 Metric), 10 Lead | Signal Line | 4 | 90 Ohms @ 100 MHz | - | 100mA | 1.95Ohm | 10V | - | -25°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|

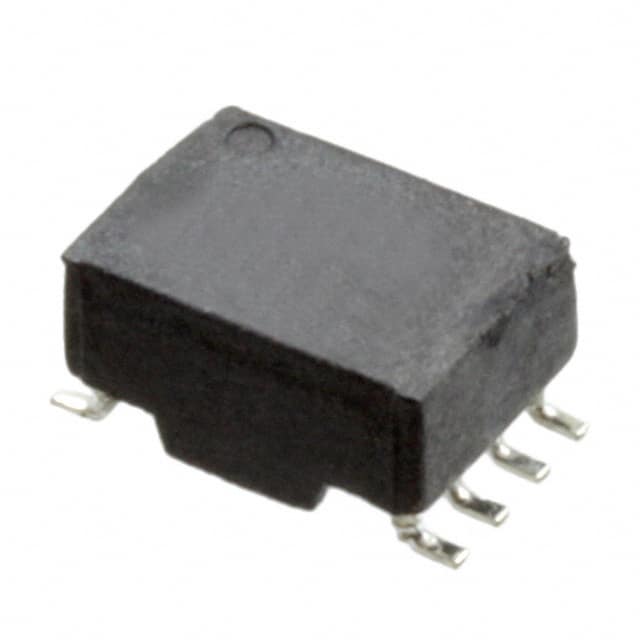

750510303CMC 20UH 4LN SMD |
0 |
|
Datasheet |
8-SOIC (0.280", 7.11mm Width) | - | 4 | - | 20 µH @ 100 kHz | - | 350mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
CAO-4.6-0.15CMC 150UH 4.6A 2LN TH |
0 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Signal Line | 2 | - | 150 µH @ 10 kHz | 4.6A | 8mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
