Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7108CMC 2MH 2A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 2 mH @ 1 kHz | 2A | 60mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
7109CMC 3MH 2A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 3 mH @ 1 kHz | 2A | 75mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
B82724A2222N020CMC 15MH 2.2A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 2.2A | 210mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82724A2222N021CMC 20MH 2.2A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 20 mH @ 10 kHz | 2.2A | 250mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
SN10-400JCMC 72UH 3A 2LN TH |
0 |
|
Datasheet |
Vertical, 2 PC Pin | Power Line | 2 | - | 72 µH @ 100 kHz | 3A | 56mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
PHBC8S-0R6A0024VCMC 24UH 2A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 24 µH @ 100 kHz | 2A | 41.1mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

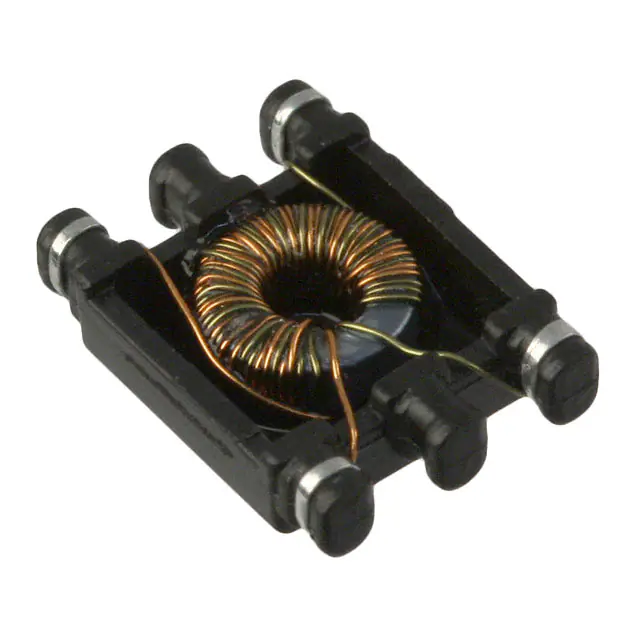

750040299CMC 47UH 3LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 3 | - | 47 µH @ 100 kHz | - | 500mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
TF3435VU-103Y5R0-01CMC 5A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 5A | 120mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF0804S-01CMC 1A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | - | 1A | 50mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF0804S-02CMC 1A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | - | 1A | 36mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
LG01-0346N2RLCMC 35UH 4CH EXT TEMP 16P SMD |
0 |
|
Datasheet |
16-SOIC (0.295", 7.50mm Width) | Signal Line | 8 | - | 35 µH @ 100 kHz | - | 300mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
LG01-1006NF1RLCMC 100UH 2CH EXT TEMP 8P SMD |
0 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CMS2-13-RCMC 1.07MH 580MA 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 1.07 mH @ 100 kHz | 580mA | 440mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|
|
CMS2-0-RCMC 14UH 6A 2LN SMD |
0 |
|
- |
Horizontal, 4 PC Pad | Power Line | 2 | - | 14 µH @ 100 kHz | 6A | 4mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|
|
23Z106SMNL-TCMC 6LN SMD |
0 |
|
Datasheet |
16-SOIC (0.265", 6.73mm Width) | Signal Line | 6 | - | - | - | 200mOhm | - | - | - | - | - | - | - | - |
|
EH28-1.0-02-36MCMC 36MH 1A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 36 mH @ 400 Hz | 1A | 591mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
B82794C0106N465CMC 10MH 600MA 2LN SMD |
0 |
|
Datasheet |
Horizontal, 8 Gull Wing | Signal Line | 2 | - | 10 mH @ 10 kHz | 600mA | 700mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
|
B82794C2106N465CMC 10MH 200MA 4LN SMD |
0 |
|
Datasheet |
Horizontal, 8 Gull Wing | Signal Line | 4 | - | 10 mH @ 10 kHz | 200mA | 1.4Ohm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
|
B82794C2475N465CMC 4.7MH 300MA 4LN SMD |
0 |
|
Datasheet |
Horizontal, 8 Gull Wing | Signal Line | 4 | - | 4.7 mH @ 10 kHz | 300mA | 900mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
B82794C0286N465CMC 28MH 400MA 2LN SMD |
0 |
|
Datasheet |
Horizontal, 8 Gull Wing | Signal Line | 2 | - | 28 mH @ 10 kHz | 400mA | 1.2Ohm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
