Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
LG01-1006NF1RLTRCMC 100UH 2CH EXT TEMP 8P SMD T/ |
0 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
UF1717V-300Y1R2-03CMC 30UH 1.2A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 30 µH @ 1 kHz | 1.2A | 150mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
CAF-0.6-18CMC 18MH 600MA 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Signal Line | 2 | - | 18 mH @ 10 kHz | 600mA | 868mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
DLW5BSN302SQ2LCMC 500MA 2LN 3K OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 3 kOhms @ 100 MHz | - | 500mA | 300mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLW5BSN152SQ2LCMC 1A 2LN 1.5K OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 1.5 kOhms @ 100 MHz | - | 1A | 100mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLW5BSN191SQ2LCMC 5A 2LN 190 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 190 Ohms @ 100 MHz | - | 5A | 20mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
CC2824J502R-00CMC 5UH 1.2A 2LN 400 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | 400 Ohms @ 500 MHz | 5 µH @ 100 kHz | 1.2A | 130mOhm | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
CLJ-2-102CMC 1MH 500MA 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 Flat Lead | - | 2 | - | 1 mH @ 100 kHz | 500mA | 275mOhm (Typ) | - | - | -25°C ~ 85°C | - | - | - | - | - |
|
|
LG11-0406NFRLTRCMC 40UH 4W EXT TEMP 8P SMD T/R |
0 |
|
- |
Horizontal, 8 Gull Wing | Signal Line | 4 | - | 40 µH @ 100 kHz | - | 200mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|

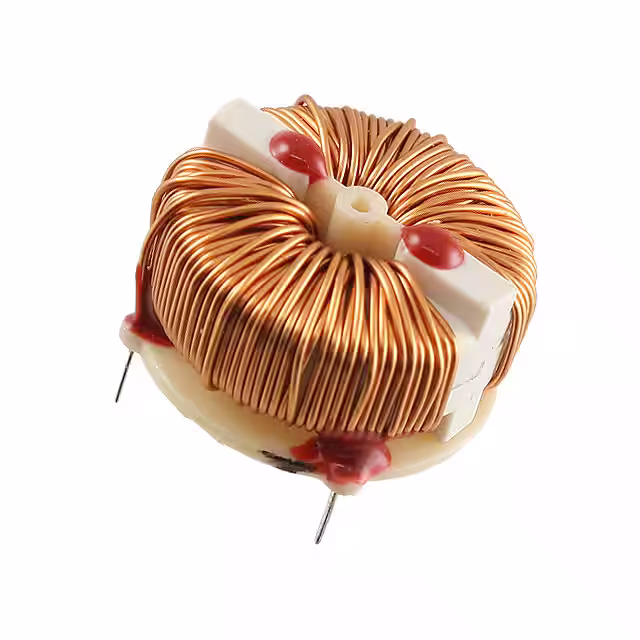

CMT3-1-RCMC 5.4MH 2A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 5.4 mH @ 10 kHz | 2A | 120mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

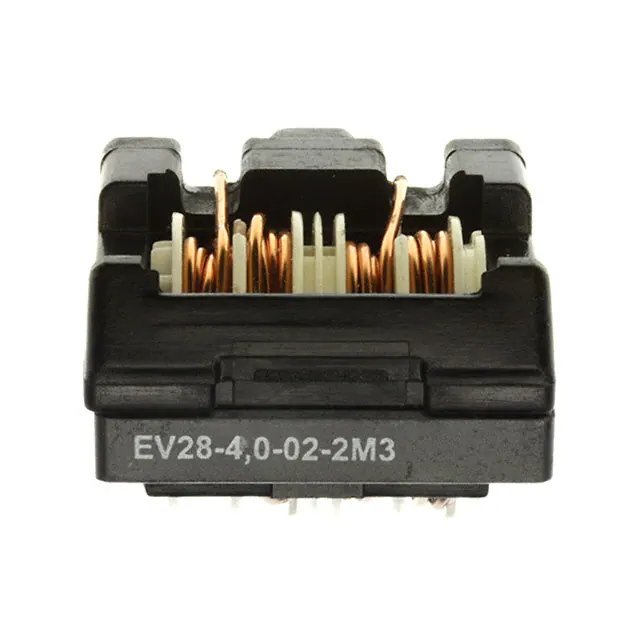

EV28-4.0-02-2M3CMC 2.3MH 4A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.3 mH @ 10 kHz | 4A | 40mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
|
FL2D-10-302B3MH @ 10 KHZ 2 LINE COMMON MODE |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3 mH @ 10 kHz | 1A | 110mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
|
RN214-0.8-02CMC 27MH 800MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 800mA (Typ) | 500mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
TF0402B-05P-01CMC 13UH 500MA 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Signal Line | 2 | - | 13 µH @ 1 kHz | 500mA | 45mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
B82789C0104N001CHOKE DBL 100UH 150MA GOLD SMD |
0 |
|
Datasheet |
Horizontal, 4 L-Lead | Signal Line | 2 | - | 100 µH @ 100 kHz | 150mA | 1.5Ohm | 80V | 42V | -55°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
CPFC11D60-100M08CMC 6A 2LN 800 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 800 Ohms @ 100 MHz | - | 6A | 8mOhm | - | - | - | - | - | - | - | - |
|
|
CAF-0.5-27CMC 27MH 500MA 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Signal Line | 2 | - | 27 mH @ 10 kHz | 500mA | 1.179Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
DKFP-F201-04D3DKFP COMP.CHOKE 2PH 4A 0.3MH K |
0 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

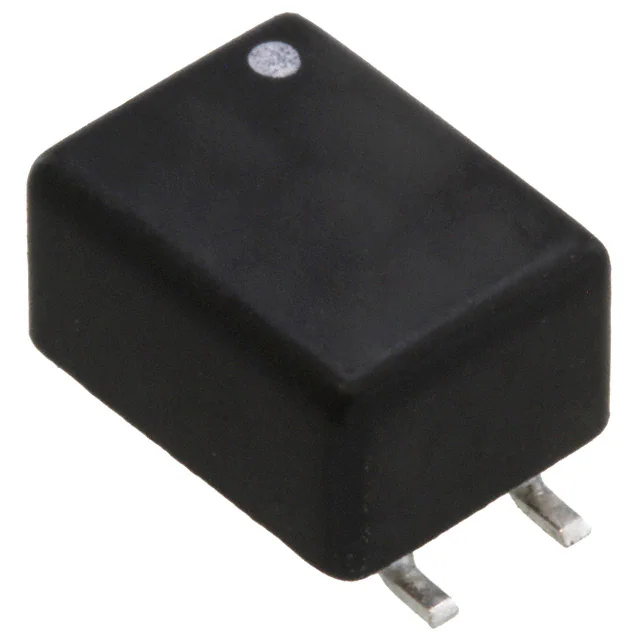

CMJ-2-101CMC 100UH 500MA 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | - | 100 µH @ 100 kHz | 500mA | 260mOhm | - | - | 0°C ~ 70°C | - | - | - | - | - |
|

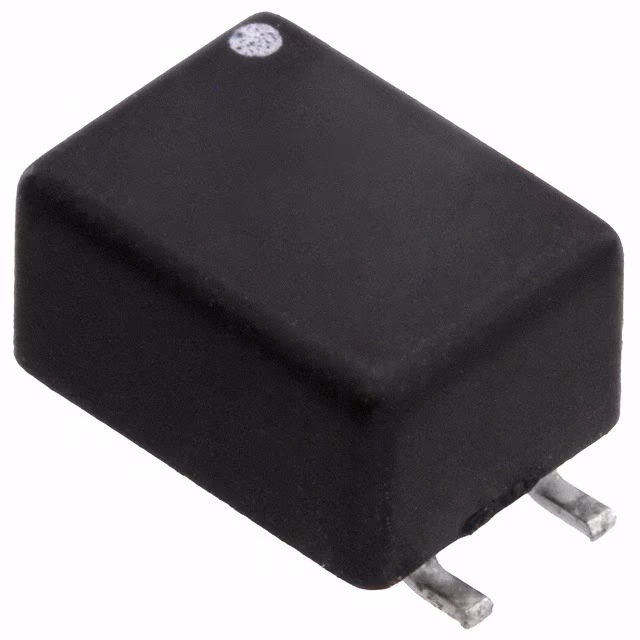

CMJ-2-470CMC 47UH 500MA 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | - | 47 µH @ 100 kHz | 500mA | 130mOhm | - | - | 0°C ~ 70°C | - | - | - | - | - |
