Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82799C334N1CMC 330UH 200MA 2LN SMD AEC-Q200 |
0 |
|
Datasheet |
Horizontal, 4 L-Lead | Signal Line | 2 | - | 330 µH @ 100 kHz | 200mA | 250mOhm (Typ) | 80V | 42V | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
B82799C513N1CMC 51UH 200MA 2LN SMD AEC-Q200 |
0 |
|
Datasheet |
Horizontal, 4 L-Lead | Signal Line | 2 | - | 51 µH @ 100 kHz | 200mA | 250mOhm (Typ) | 80V | 42V | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

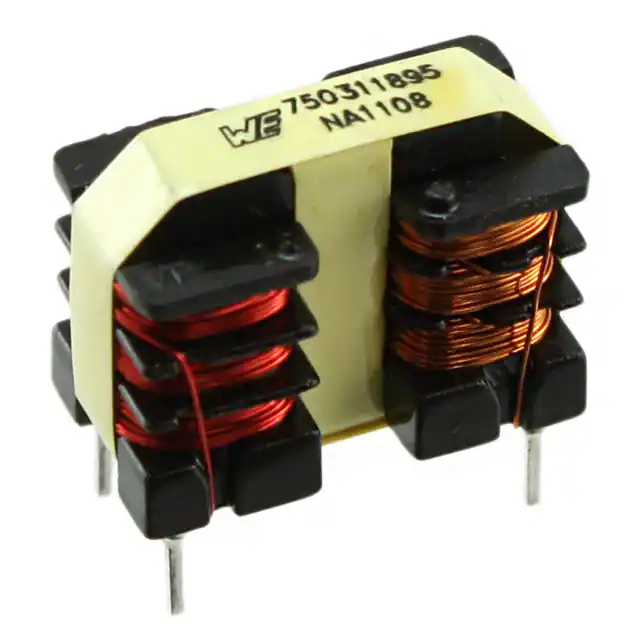

750311895CMC 6MH 450MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 6 mH @ 10 kHz | 450mA | 1.6Ohm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
FL2D-10-102B1MH @ 10 KHZ 2 LINE COMMON MODE |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 1A | 70mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
TF3424HU-301Y20R0-01CMC 20A 2LN TH |
0 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | - | 20A | 10mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF3435VU-301Y20R0-01CMC 20A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 20A | 10mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF3424HU-102Y10R0-01CMC 10A 2LN TH |
0 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | - | 10A | 30mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF3435VU-102Y10R0-01CMC 10A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 10A | 30mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
TF3424HU-102Y15R0-01CMC 15A 2LN TH |
0 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | - | 15A | 20mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
HHBC8S-0R6A0024VCMC 24UH 2A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 24 µH @ 100 kHz | 2A | 41.1mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
LG01-1006NF1LFTRCMC 100UH 2CH EXT TEMP 8P SMD T/ |
0 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
7115CMC 5MH 2A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 5 mH @ 1 kHz | 2A | 110mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
7117CMC 1MH 5A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 1 mH @ 1 kHz | 5A | 35mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
CAV-0.4-47CMC 47MH 400MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | - | 47 mH @ 10 kHz | 400mA | 1.942Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
DKFP-A21A-D64MDKFP COMP.CHOKE THT P V 0.6A 2X4 |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 600mA | 380mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | cURus | - | - | - |
|
|
DKFP-B22B-D615DKFP COMP.CHOKE THT P O 0.6A 2X1 |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 600mA | 453mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | cURus | - | - | - |
|
|
DKFP-B22B-D810DKFP COMP.CHOKE THT P O 0.8A 2X1 |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 800mA | 336mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | cURus | - | - | - |
|
|
DKFP-A21A-D312DKFP COMP.CHOKE THT P V 0.3A 2X1 |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 300mA | 1.28Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | cURus | - | - | - |
|
|
DKFP-B22B-D527DKFP COMP.CHOKE THT P O 0.5A 2X2 |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 500mA | 841mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | cURus | - | - | - |
|
|
DKFP-A21A-0103DKFP COMP.CHOKE THT P V 2X3MH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 1A | 200mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | cURus | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
