Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82794C0475N465CMC 4.7MH 700MA 2LN SMD |
0 |
|
Datasheet |
Horizontal, 8 Gull Wing | Signal Line | 2 | - | 4.7 mH @ 10 kHz | 700mA | 500mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
|
B82794C0476N465CMC 47MH 300MA 2LN SMD |
0 |
|
Datasheet |
Horizontal, 8 Gull Wing | Signal Line | 2 | - | 47 mH @ 10 kHz | 300mA | 2.8Ohm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
|
LG11-0406NFRLCMC 40UH 4W EXT TEMP 8P SMD |
0 |
|
- |
Horizontal, 8 Gull Wing | Signal Line | 4 | - | 40 µH @ 100 kHz | - | 200mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DKFP-B21B-D615DKFP COMP.CHOKE THT P V 0.6A 2X1 |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 600mA | 453mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | cURus | - | - | - |
|
|
DKFP-B21B-04D7DKFP COMP.CHOKE THT P V 4A 2X0.7 |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 4A | 18mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | cURus | - | - | - |
|
|
DKFP-B21B-1K6QDKFP COMP.CHOKE THT P V 1.2A 2X6 |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 1.2A | 219mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | cURus | - | - | - |
|
|
DKFP-B21B-1N3LDKFP COMP.CHOKE THT P V 1.5A 2X3 |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 1.5A | 122mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | cURus | - | - | - |
|
|
DKFP-B21B-D810DKFP COMP.CHOKE THT P V 0.8A 2X1 |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 800mA | 336mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | cURus | - | - | - |
|
|
DKFP-B21B-021QDKFP COMP.CHOKE THT P V 2A 2X1.8 |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 2A | 57mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | cURus | - | - | - |
|
|
DKFP-B21B-D439DKFP COMP.CHOKE THT P V 0.4A 2X3 |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 400mA | 1.286Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | cURus | - | - | - |
|
|
DKFP-B21B-D527DKFP COMP.CHOKE THT P V 0.5A 2X2 |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 500mA | 841mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | cURus | - | - | - |
|
EMI2124MTTAGCMC 100MA 2LN SMD ESD |
0 |
|
Datasheet |
8-WFDFN Exposed Pad | Signal Line | 2 | - | - | 100mA | 8Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
7124CMC 3MH 10A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 3 mH @ 1 kHz | 10A | 20mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
7121CMC 50MH 2A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 50 mH @ 1 kHz | 2A | 200mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
7119CMC 5MH 4A 2LN TH |
0 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 5 mH @ 1 kHz | 4A | 46mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
B82792C0475N365CMC 4.7MH 600MA 2LN SMD |
0 |
|
Datasheet |
Horizontal, 8 Gull Wing | Signal Line | 2 | - | 4.7 mH @ 10 kHz | 600mA | 400mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|

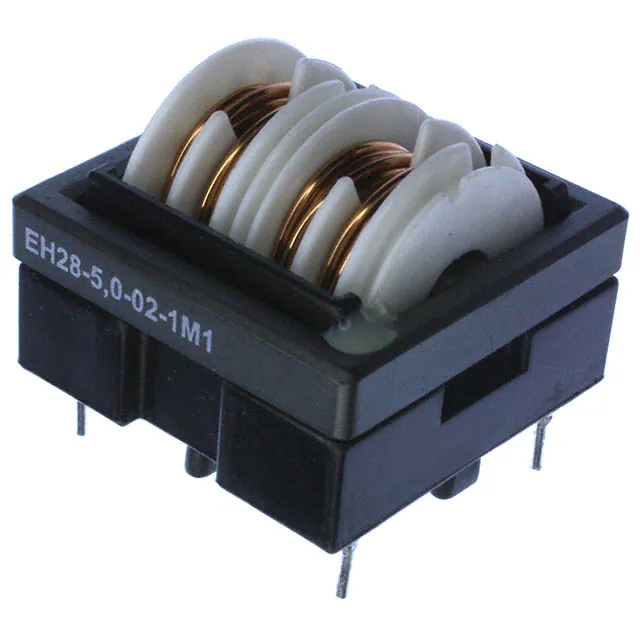

EH28-5.0-02-1M1CMC 1.1MH 5A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.1 mH @ 400 Hz | 5A | 27mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
|
B82799C223N1CMC 22UH 250MA 2LN SMD AEC-Q200 |
0 |
|
Datasheet |
Horizontal, 4 L-Lead | Signal Line | 2 | - | 22 µH @ 100 kHz | 250mA | 170mOhm (Typ) | 80V | 42V | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
B82799C224N1CMC 220UH 200MA 2LN SMD AEC-Q200 |
0 |
|
Datasheet |
Horizontal, 4 L-Lead | Signal Line | 2 | - | 220 µH @ 100 kHz | 200mA | 200mOhm (Typ) | 80V | 42V | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
B82799C333N1CMC 33UH 200MA 2LN SMD AEC-Q200 |
0 |
|
Datasheet |
Horizontal, 4 L-Lead | Signal Line | 2 | - | 33 µH @ 100 kHz | 200mA | 200mOhm (Typ) | 80V | 42V | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
