Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
LG11-0366N1LFCMC 36UH 4CH/SH EXT TEMP 16P SMD |
0 |
|
Datasheet |
16-SOIC (0.280", 7.11mm Width) | Signal Line | 8 | - | - | - | 450mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
LG01-0346N2LFTRCMC 35UH 4CH EXT TEMP 16P SMD T/ |
0 |
|
- |
16-SOIC (0.295", 7.50mm Width) | Signal Line | 8 | - | 35 µH @ 100 kHz | - | 300mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
DLW44SN172SK2LCMC 1.5A 2LN 1.7K OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 1.7 kOhms @ 100 MHz | - | 1.5A | 84mOhm | 60V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
DLW44SN302SK2LCMC 1.1A 2LN 2.2K OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 2.2 kOhms @ 100 MHz | - | 1.1A | 168mOhm | 60V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
DLW44SN401SK2LCMC 2.1A 2LN 400 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 400 Ohms @ 100 MHz | - | 2.1A | 42mOhm | 60V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
DLW44SN851SK2LCMC 1.9A 2LN 850 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 850 Ohms @ 100 MHz | - | 1.9A | 56mOhm | 60V | - | -40°C ~ 105°C | - | - | - | - | - |
|

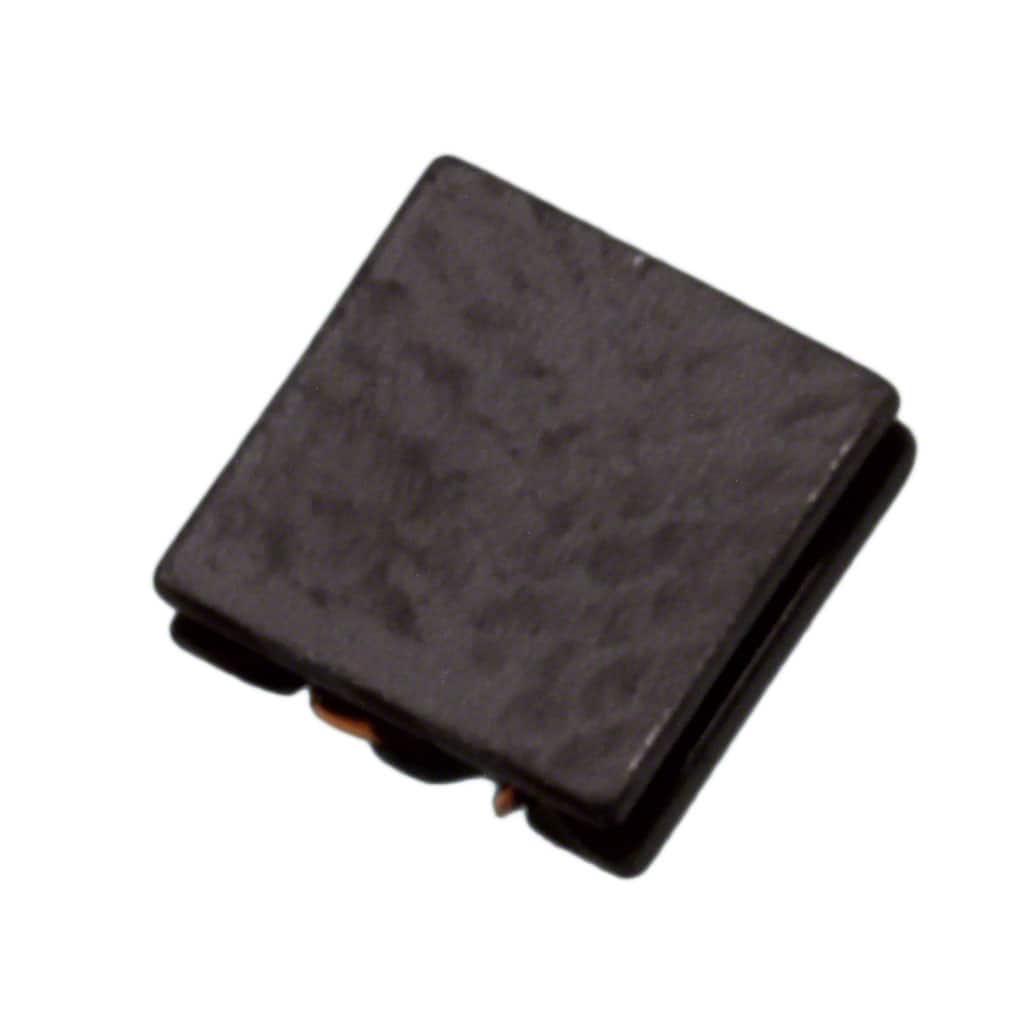

DLW44SN251SK2LCMC 2.6A 2LN 250 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 250 Ohms @ 100 MHz | - | 2.6A | 33.6mOhm | 60V | - | -40°C ~ 105°C | - | - | - | - | - |
|
TF2326VU-500Y4R0-1HCMC 4A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 4A | 25mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
LCF201204A181TGCMC 100MA 4LN 180 OHM SMD |
0 |
|
Datasheet |
0805 (2012 Metric), 8 Lead | Signal Line | 4 | 180 Ohms @ 100 MHz | - | 100mA | 4Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
B82614R2102A030CMC 2MH 1A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 10 kHz | 1A | 1.3Ohm (Typ) | - | 250V | - | - | - | - | - | - |
|
|
B82614R2172A030CMC 1.5MH 1.7A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 10 kHz | 1.7A | 610mOhm (Typ) | - | 250V | - | - | - | - | - | - |
|
|
B82614R2242A030CMC 750UH 2.4A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 750 µH @ 100 kHz | 2.4A | 330mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
B82614R2801A030CMC 3MH 800MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3 mH @ 10 kHz | 800mA | 1.9Ohm (Typ) | - | 250V | - | - | - | - | - | - |
|
TX8111NLCMC 51UH 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 51 µH @ 100 kHz | - | 200mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
LF2823NP-182CMC 1.8MH 2.6A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.8 mH @ 1 kHz | 2.6A | 72mOhm | - | - | - | - | - | - | - | - |
|
|
LF2823NP-682CMC 6.8MH 1.6A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 1 kHz | 1.6A | 230mOhm | - | - | - | - | - | - | - | - |
|
|
LF2823NP-123CMC 12MH 1.2A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 12 mH @ 1 kHz | 1.2A | 380mOhm | - | - | - | - | - | - | - | - |
|
|
LF2823NP-223CMC 22MH 1A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 22 mH @ 1 kHz | 1A | 650mOhm | - | - | - | - | - | - | - | - |
|
|
LF2823NP-393CMC 39MH 700MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 39 mH @ 1 kHz | 700mA | 1.43Ohm | - | - | - | - | - | - | - | - |
|
|
LF2823NP-683CMC 68MH 600MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 68 mH @ 1 kHz | 600mA | 1.82Ohm | - | - | - | - | - | - | - | - |
