Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744282010CMC 1UH 4.75A 2LN 1.6K OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1.6 kOhms @ 90 MHz | 1 µH @ 100 kHz | 4.75A | 12mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
M-542CTCMC 500MA 4LN 200 OHM SMD |
0 |
|
Datasheet |
Vertical, 8 Gull Wing | Signal Line | 4 | 200 Ohms @ 10 MHz | - | 500mA | 120mOhm | 50V | - | -20°C ~ 75°C | - | - | - | - | - |
|
CMS1-13-RCMC 166UH 1A 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 166 µH @ 100 kHz | 1A | 138mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|
B82792C2475N365CMC 4.7MH 300MA 4LN SMD |
10 |
|
Datasheet |
Horizontal, 8 Gull Wing | Signal Line | 4 | - | 4.7 mH @ 10 kHz | 300mA | 700mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
7448227005CMC 450UH 6.5A 2LN TH |
4 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 450 µH @ 100 kHz | 6.5A | 10mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
P0429NLTCMC 9.7A 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 9.7A | 14mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
|
CM5740Z241B-10CMC 20A 4LN 100 OHM TH |
0 |
|
Datasheet |
Vertical, 8 PC Pin | Power, Signal Line | 4 | 100 Ohms @ 100 MHz | - | 20A | 1.3mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
RN152-10-02-1M8CMC 1.8MH 10A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.8 mH @ 10 kHz | 10A | 14mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
PH9408.105NLTCMC 17A 2LN 4.3K OHM SMD |
2 |
|
Datasheet |
Nonstandard | - | 2 | 4.3 kOhms @ 1.1 MHz | - | 17A | 7mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
PLT10HH450180PNLCMC 18A 2LN 45 OHM SMD AEC-Q200 |
0 |
|
Datasheet |
Vertical, 4 PC Pad | Power Line | 2 | 45 Ohms @ 10 MHz | - | 18A | 1.8mOhm | 300V | - | -55°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
B82726E6213A040CMC 1.5MH 21A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 10 kHz | 21A | 2.8mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | UR | - | - | - |
|
7448031501CMC 1MH 15A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 15A | 3.2mOhm | - | 300V | -55° C ~ 125°C | - | - | - | - | - |
|
RT8522-10-6M0CMC 6MH 10A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6 mH @ 100 kHz | 10A | 16mOhm (Typ) | 425V | 300V | -40°C ~ 100°C | - | - | - | - | - |
|

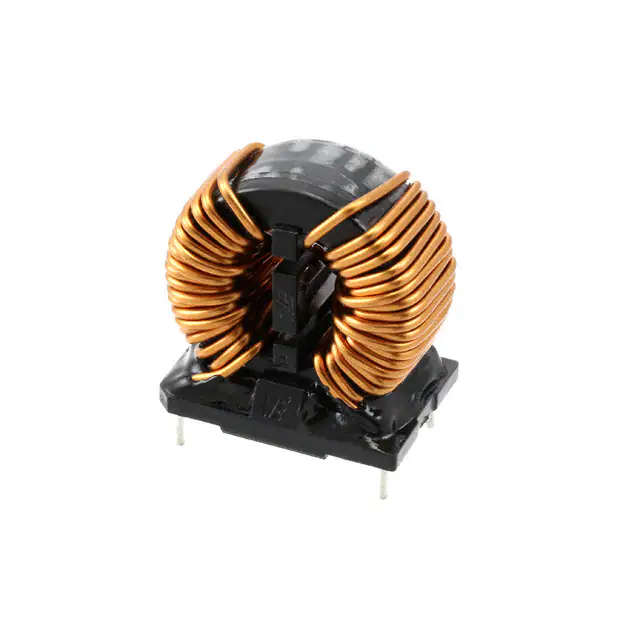

7448051012CMC 12MH 10A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 12 mH @ 10 kHz | 10A | 15mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7448053201CMC 900UH 32A 2LN TH |
0 |
|
Datasheet |
Vertical, 12 PC Pin | Power Line | 2 | - | 900 µH @ 10 kHz | 32A | 1.1mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
B82726S3223A340CMC 1.7MH 25A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.7 mH @ 10 kHz | 25A | 2.75mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | UR | - | - | - |
|

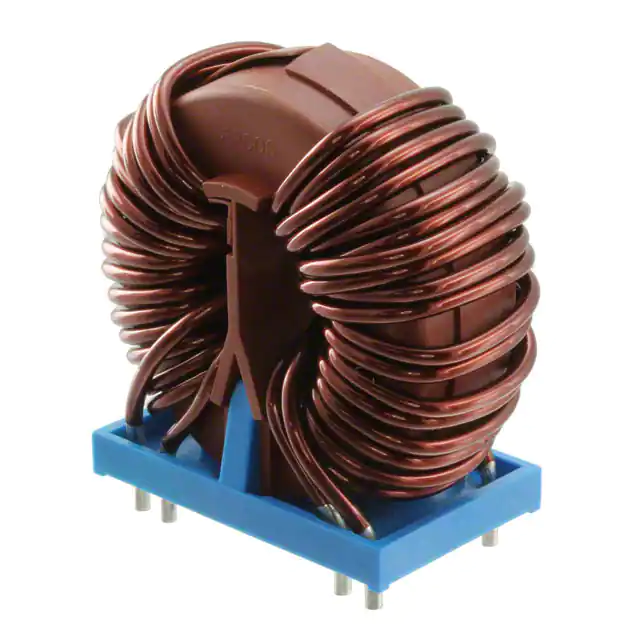

B82727E6503A040CMC 570UH 50A 2LN TH |
0 |
|
Datasheet |
Vertical, 8 PC Pin | Power Line | 2 | - | 570 µH @ 100 kHz | 50A | 1mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | UR | - | - | - |
|
RD5122-16-2M0CMC 2MH 16A 2LN TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2 mH @ 400 Hz | 16A (Typ) | 9.5mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
47724-142CMC 1.4MH 4A 2LN 5.2KOHM CHAS MT |
0 |
|
Datasheet |
Nonstandard | - | 2 | 5.2 kOhms @ 1 MHz | 1.4 mH @ 10 kHz | 4A | 75mOhm | - | - | - | - | - | - | - | - |
|
T60405R6123X248CMC 580UH 46A 2LN 660 OHM TH |
0 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | 660 Ohms @ 100 kHz | 580 µH @ 100 kHz | 46A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
