Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DLW43SH510XK2LCMC 51UH 230MA 2LN SMD AEC-Q200 |
0 |
|
Datasheet |
1812 (4532 Metric) | Signal Line | 2 | - | 51 µH @ 1 MHz | 230mA | 1Ohm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
DLW5BTM102SQ2LCMC 2A 2LN 1K OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 1 kOhms @ 100 MHz | - | 2A | 34mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLW5BTM142SQ2LCMC 1.5A 2LN 1.4K OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 1.4 kOhms @ 100 MHz | - | 1.5A | 56mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLW5BTM142TQ2LCMC 2A 2LN 1.4K OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 1.4 kOhms @ 100 MHz | - | 2A | 56mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
DLW5BTM251SQ2LCMC 5A 2LN 250 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 250 Ohms @ 100 MHz | - | 5A | 20mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLW5BTM501SQ2LCMC 4A 2LN 500 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 500 Ohms @ 100 MHz | - | 4A | 27mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLW5BTM101SQ2LCMC 6A 2LN 100 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 100 Ohms @ 100 MHz | - | 6A | 13mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLW32SH510XF2LCMC 51UH 200MA 2LN SMD AEC-Q200 |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 51 µH @ 100 kHz | 200mA | 700mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
744235510CMC 51UH 200MA 2LN 3KOHM SMD |
15 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 3 kOhms @ 10 MHz | 51 µH @ 100 kHz | 200mA | 1Ohm | 60V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
ACM90V-152-2PL-TL00CMC 3.6A 2LN 1.5KOHM SMD AECQ200 |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 1.5 kOhms @ 100 MHz | - | 3.6A | 16mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|

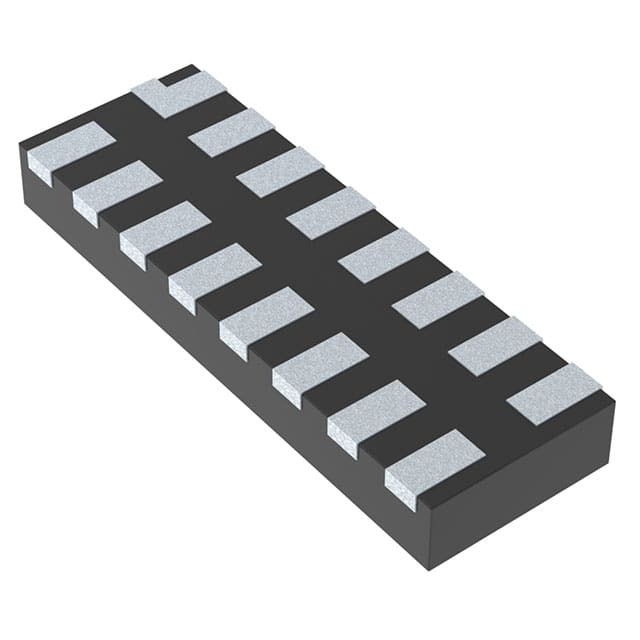

EMI8143MUTAGCMC 100MA 6LN SMD ESD |
0 |
|
Datasheet |
16-XFDFN | Signal Line | 6 | - | - | 100mA | 6Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
DLW5BSM302SQ2LCMC 500MA 2LN 3K OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 3 kOhms @ 100 MHz | - | 500mA | 300mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLW5BSM102SQ2LCMC 1.5A 2LN 1K OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 1 kOhms @ 100 MHz | - | 1.5A | 60mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLW5BSM152SQ2LCMC 1A 2LN 1.5K OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 1.5 kOhms @ 100 MHz | - | 1A | 100mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
DLW44SM242SK2LCMC 1.4A 2LN 2.4KOHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 2.4 kOhms @ 100 MHz | - | 1.4A | 105mOhm | 60V | - | -40°C ~ 105°C | - | - | - | - | - |
|
RN202-0.3-02-12MCMC 12MH 300MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 12 mH @ 10 kHz | 300mA | 1.1Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
B82721K2222U030CMC 10UH 2.2A 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 µH @ 100 kHz | 2.2A | 70mOhm | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82720A2102N040CMC 3MH 1A 2LN TH |
20 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3 mH @ 10 kHz | 1A | 220mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
CM7060R501R-10CMC 5A 2LN 350 OHM SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 350 Ohms @ 100 MHz | - | 5A | 10mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
SBT-0180WCMC 80UH 500MA 2LN TH |
0 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | - | 80 µH @ 1 kHz | 500mA | 55mOhm | 50V | - | -25°C ~ 70°C | - | - | - | - | - |
