Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744862018CMC 1.8MH 1A 2LN TH |
30 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.8 mH @ 10 kHz | 1A | 310mOhm | - | 400V | -40°C ~ 125°C | - | - | - | - | - |
|
7111-RCCMC 850UH 3A 2LN TH |
30 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | - | 2 | - | 850 µH @ 1 kHz | 3A | 30mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
744823210CMC 10MH 2A 2LN TH |
78 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 2A | 125mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
PA5141.305NLTCMC 26A 2LN 1.05K OHM SMD |
45 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 1.05 kOhms @ 2.82 MHz | - | 26A | 2.1mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
TCK-072CMC 156UH 2LN TH |
79 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 156 µH @ 100 kHz | - | 15mOhm | 500V | - | -40°C ~ 105°C | - | - | - | - | - |
|
B82722S0862A020CMC 810UH 8.6A 2LN SMD |
165 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 810 µH @ 100 kHz | 8.6A | 12mOhm | 80V | 48V | - | - | - | - | - | - |
|
|
B82722S0133A020CMC 470UH 13A 2LN SMD |
50 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 470 µH @ 100 kHz | 13A | 6.7mOhm | 80V | 48V | - | - | - | - | - | - |
|
PLT10HN401100P0BCMC 10A 2LN 400 OHM TH |
99 |
|
Datasheet |
Vertical, 4 PC Pad | Power Line | 2 | 400 Ohms @ 10 MHz | - | 10A | 4.1mOhm | 100V | - | -55°C ~ 125°C | - | - | - | - | - |
|

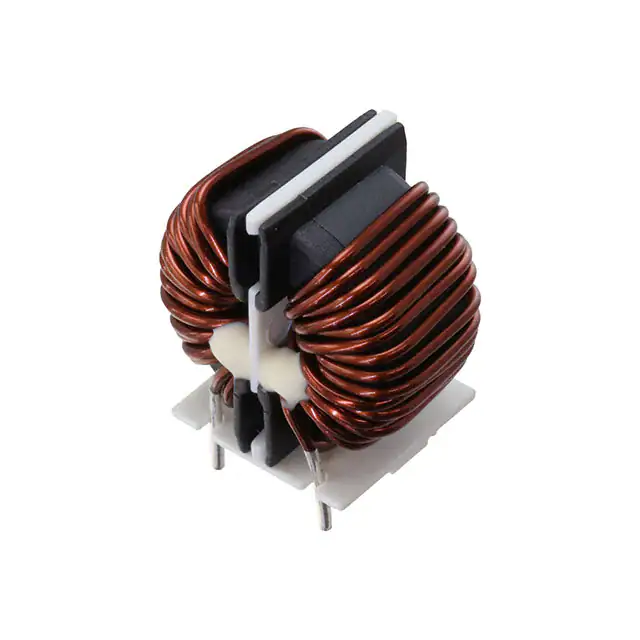

SCR25B-150-1R4A024JCMC 2.4MH 15A 2LN TH |
41 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.4 mH @ 10 kHz | 15A | 11.5mOhm | 500V | 500V | 25°C ~ 120°C | - | - | - | - | - |
|

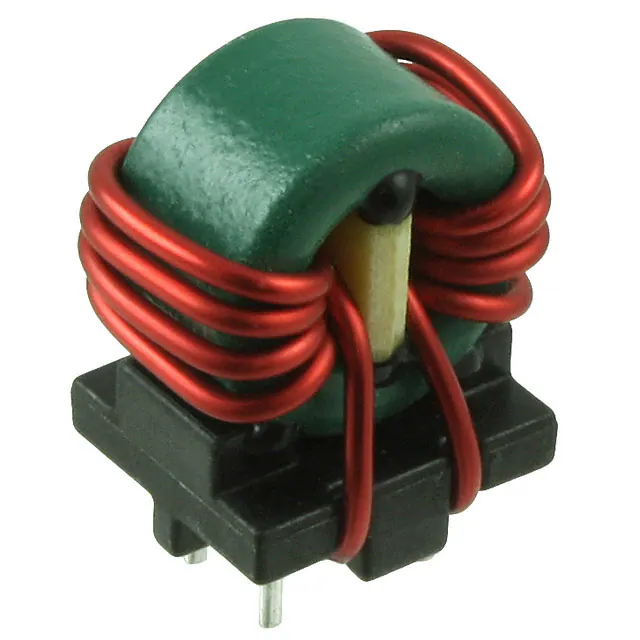

7448421016CMC 16UH 10A 2LN TH |
76 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 16 µH @ 100 kHz | 10A | 3mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
PH9455.826NLCMC 82MH 3A 2LN 37K OHM TH |
100 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | 37 kOhms @ 130 kHz | 82 mH @ 130 kHz | 3A | 150mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
PH9455.156NLCMC 15MH 6A 2LN 10K OHM TH |
58 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | 10 kOhms @ 760 kHz | 15 mH @ 760 kHz | 6A | 30mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7448023005CMC 5MH 3A 2LN TH |
40 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 10 kHz | 3A | 40mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

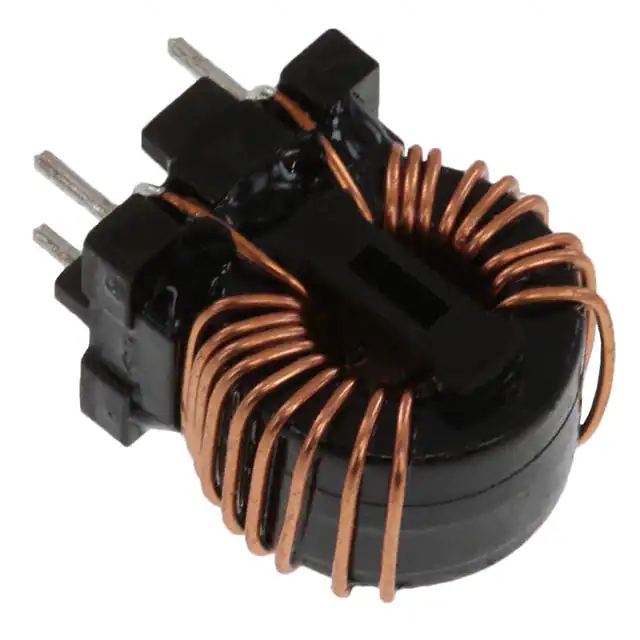

7448024503CMC 3MH 4.5A 2LN TH |
28 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3 mH @ 10 kHz | 4.5A | 22mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
SC-18-25JCMC 2.5MH 18A 2LN TH |
54 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.5 mH @ 10 kHz | 18A | 10mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
CMC-05CMC 5.2A 2LN TH |
93 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 5.2A | 25mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
|
SCF19XV-100-1R1A009JVCMC 1MH 10A 2LN TH AEC-Q200 |
66 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 10A | 6.03mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
B82726S2243A020CMC 750UH 24A 2LN TH |
72 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 750 µH @ 100 kHz | 24A | 3.2mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
744844470CMC 47UH 15A 2LN TH |
70 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 47 µH @ 10 kHz | 15A | 4.6mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
B82747S4183N021CMC 1.8MH 18A 3LN TH |
44 |
|
Datasheet |
Radial - 6 Leads | Power Line | 3 | - | 1.8 mH @ 10 kHz | 18A | 4.7mOhm (Typ) | - | 440/250V | -40°C ~ 125°C | - | - | - | - | - |
