Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRF4530A-510YCMC 51UH 230MA 2LN SMD AEC-Q200 |
742 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 3.5 kOhms @ 10 MHz | 51 µH @ 100 kHz | 230mA | 1Ohm | 50V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
ACE1V3225-510-RCMC 51UH 200MA 2LN 2.6KOHM SMD |
953 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 2.6 kOhms @ 10 MHz | 51 µH @ 100 kHz | 200mA | 700mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
ACM2012H-900-2P-T06CMF,MULTI-GIG ETHERNET, ~125C |
257 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 300mA | 300mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
ACM4520-231-2P-T000CMC 3A 2LN 230 OHM SMD |
1,559 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 230 Ohms @ 100 MHz | - | 3A | 50mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
ACE1V4532-201-RCMC 200UH 100MA 2LN 15KOHM SMD |
941 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 15 kOhms @ 10 MHz | 200 µH @ 100 kHz | 100mA | 4.5Ohm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
DLW5ATN401SQ2LCMC 2A 2LN 400 OHM SMD |
815 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 400 Ohms @ 100 MHz | - | 2A | 34mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
ACT45C-510-2P-TL000CMC 51UH 200MA AEC-Q200 125DEGC |
787 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 2.8 kOhms @ 10 MHz | 51 µH @ 100 kHz | 200mA | 1Ohm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
CM1210B513R-1ACMC 51UH 200MA 2LN 2.6KOHM SMD |
64 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 2.6 kOhms @ 10 MHz | 51 µH @ 100 kHz | 200mA | 700mOhm | 80V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
DLW5ATH111TQ2LCMC 3A 2LN 110 OHM SMD AEC-Q200 |
740 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 110 Ohms @ 100 MHz | - | 3A | 20mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
DLW5ATH151MQ2LCMC 3A 2LN 150 OHM SMD AEC-Q200 |
700 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 150 Ohms @ 100 MHz | - | 3A | 20mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
SS11V-R08125-CHCMC 12.5MH 800MA 2LN TH |
100 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 12.5 mH @ 1 kHz | 800mA | 740mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

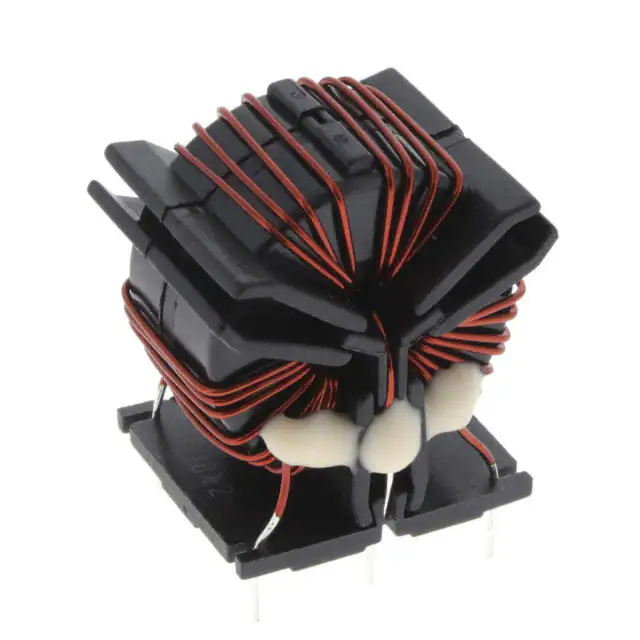

SC-01-S07JCMC 700UH 1A 3LN TH |
82 |
|
Datasheet |
Vertical, 6 PC Pin | Power Line | 3 | - | 700 µH @ 10 kHz | 1A | 38 mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
PM3700-70-RCCMC 10MH 1.5A 2LN SMD |
70 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 10 mH @ 1 kHz | 1.5A | 150mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
B82790C0502N201CMC 5UH 1A 2LN SMD AEC-Q200 |
70 |
|
Datasheet |
Horizontal, 4 Gull Wing | Signal Line | 2 | - | 5 µH @ 100 kHz | 1A | 60mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
744869161063CMC 6MH 2.4A 2LN TH |
28 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 6 mH @ 10 kHz | 2.4A | 220mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
SSRH24NH-30145CMC 14.5MH 3A 2LN TH |
73 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 14.5 mH @ 10 kHz | 3A | 102mOhm (Typ) | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

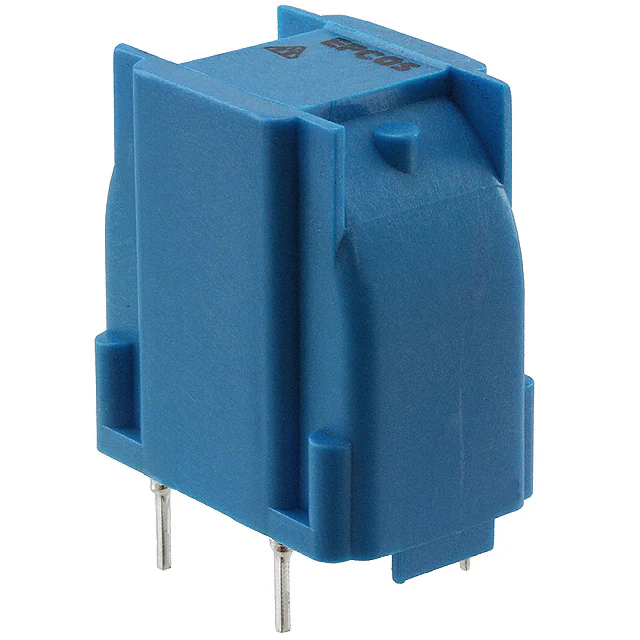

B82723J2202N001CMC 5.6MH 2A 2LN TH |
54 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5.6 mH @ 10 kHz | 2A | 160mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
PAC6006.104NLTCMC 14A 2LN 610 OHM SMD |
54 |
|
Datasheet |
Horizontal, 4 J-Lead | - | 2 | 610 Ohms @ 11 MHz | - | 14A | 3.3mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
B82725J2602N020CMC 3.9MH 6A 2LN TH |
71 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.9 mH @ 10 kHz | 6A | 30mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
SC-11-20JCMC 2MH 11A 2LN TH |
76 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 10 kHz | 11A | 14mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
Common Mode Chokes Electronic Components
Explore Common Mode Chokes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
