Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

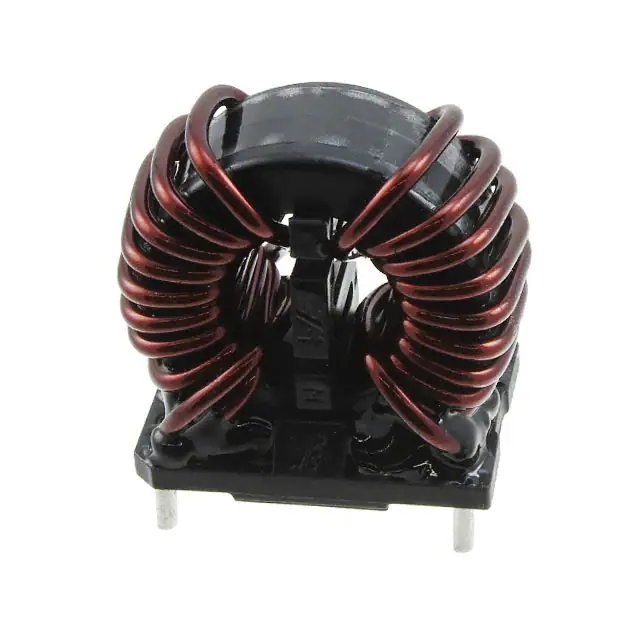

7448052303CMC 3MH 23A 2LN TH |
8 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3 mH @ 10 kHz | 23A | 3mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
B82727E6443A040CMC 1MH 44A 2LN TH |
52 |
|
Datasheet |
Vertical, 8 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 44A | 1.35mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | UR | - | - | - |
|
|
B82727E6403A040CMC 1.5MH 40A 2LN TH |
9 |
|
Datasheet |
Vertical, 8 PC Pin | Power Line | 2 | - | 1.5 mH @ 10 kHz | 40A | 1.7mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | UR | - | - | - |
|

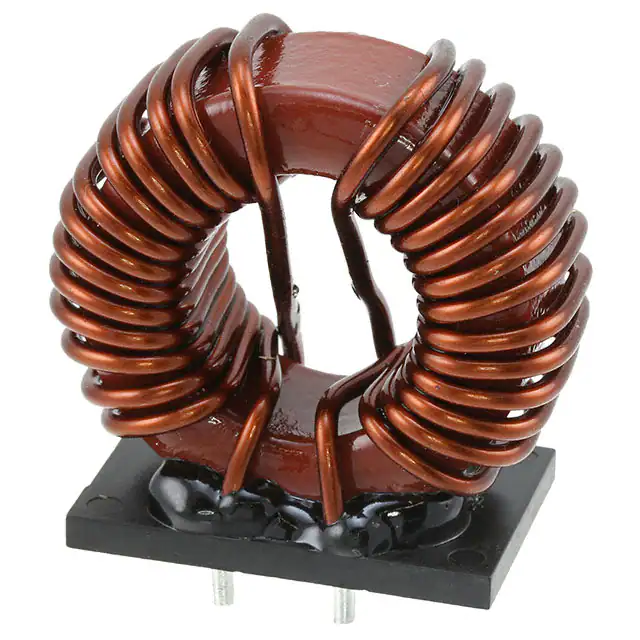

7448262013CMC 1.3MH 20A 2LN TH |
66 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.3 mH @ 10 kHz | 20A | 6.2mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
DKIH-3252-506J-NKCMC 50A 2LN TH |
93 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | - | 50A | 0.5mOhm | - | - | -40°C ~ 100°C | - | ENEC, UR | - | - | - |
|
DKIH-3458-250K-NKCMC 25A 4LN TH |
35 |
|
Datasheet |
Horizontal, 8 PC Pin | - | 4 | - | - | 25A | 1.4mOhm | 760V | 760V | -40°C ~ 100°C | - | - | - | - | - |
|
744839003460CMC 3MH 46A 3LN TH |
80 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 3 mH @ 10 kHz | 46A | 1.6mOhm | - | 760V | -40°C ~ 125°C | - | - | - | - | - |
|
LCFE121002A650TGCMC 100MA 2LN 65 OHM SMD ESD |
675 |
|
Datasheet |
0504 (1210 Metric), 6 Lead | Signal Line | 2 | 65 Ohms @ 100 MHz | - | 100mA | 4Ohm | 5V | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
SRF2012-201YACMC 300MA 2LN 200 OHM SMD |
495 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 200 Ohms @ 100 MHz | - | 300mA | 400mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SRF2012A-361YACMC 300MA 2LN 360OHM SMD AECQ200 |
267 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 360 Ohms @ 100 MHz | - | 300mA | 500mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
.jpg)
|
DLW21SN121SQ2LCMC 370MA 2LN 120 OHM SMD |
376 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 120 Ohms @ 100 MHz | - | 370mA | 300mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
50105ACCMC 1.0MH, 0.7A SM TOROID |
1,418 |
|
Datasheet |
Horizontal, 4 Gull Wing | Signal Line | 2 | - | 1 mH @ 100 kHz | 700mA | 360mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
DLW21SN261XQ2LCMC 220MA 2LN 260 OHM SMD |
844 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 260 Ohms @ 100 MHz | - | 220mA | 590mOhm | 20V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
50474ACCMC 0.47MH, 0.7A SM TOROID |
285 |
|
Datasheet |
Horizontal, 4 Gull Wing | Signal Line | 2 | - | 470 µH @ 100 kHz | 700mA | 360mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SRF3225TP-102YIND CMC 8.2UH 1.5A |
525 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 1 kOhms @ 100 MHz | 8.2 µH @ 100 kHz | 1.5A | 100mOhm | 60V | - | -40°C ~ 105°C | - | - | - | - | - |
|
DLW21PH201XQ2LCMC 500MA 2LN 200OHM SMD AECQ200 |
938 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 200 Ohms @ 100 MHz | - | 500mA | 168mOhm | 20V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
ACMP-4528-900-TCMC 3A 2LN 90 OHM SMD |
112 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 90 Ohms @ 100 MHz | - | 3A | 50mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
SRF4532-1R0YCMC 1UH 1.2A 2LN 60 OHM SMD |
1,406 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 60 Ohms @ 10 MHz | 1 µH @ 100 kHz | 1.2A | 120mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
SRF4530A-101YCMC 100UH 200MA 2LN 7.5KOHM SMD |
1,248 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 7.5 kOhms @ 10 MHz | 100 µH @ 100 kHz | 200mA | 1.5Ohm | 50V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
ECMS1V1306-102-RCMC 6A 2LN 1K OHM SMD |
1,109 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 1 kOhms @ 100 MHz | - | 6A | 14mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
