Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
PMCU-6029CMC 1.3A 2LN TH |
1,000 |
|
Datasheet |
- | Power Line | 2 | - | 3 mH @ 1 kHz | 1.3A | 260mOhm | - | 250V | -40°C ~ 80°C | - | - | - | - | - |
|
|
PMCU-4009CMC 750MA 2LN TH |
2,284 |
|
Datasheet |
- | Power Line | 2 | - | 0.8 mH @ 1 kHz | 750mA | 220mOhm | - | 250V | -40°C ~ 80°C | - | - | - | - | - |
|
|
PMCU-7039CMC 2A 2LN TH |
1,000 |
|
Datasheet |
- | Power Line | 2 | - | 0.9 mH @ 1 kHz | 2A | 120mOhm | - | 250V | -40°C ~ 80°C | - | - | - | - | - |
|
|
PMCE-0056CMC 2.25A 2LN TH |
1,840 |
|
Datasheet |
- | Power Line | 2 | - | 5.6 mH @ 1 kHz | 2.25A | 80mOhm | - | 3750V (3.75kV) | -40°C ~ 80°C | - | - | - | - | - |
|
|
PMCU-8009CMC 1A 2LN TH |
1,000 |
|
Datasheet |
- | Power Line | 2 | - | 10 mH @ 1 kHz | 1A | 520Ohm | 100V | 300V | -40°C ~ 80°C | - | - | - | - | - |
|
|
PMCU-2056CMC 1.4A 2LN TH |
2,446 |
|
Datasheet |
- | Power Line | 2 | - | 5.6 mH @ 1 kHz | 1.4A | 150mOhm | - | 250V | -40°C ~ 80°C | - | - | - | - | - |
|
|
TSD-4547CMC 2LN TH |
150 |
|
Datasheet |
- | - | 2 | - | - | - | - | - | 1000V (1kV) | 130°C | - | - | - | - | - |
|
|
TSD-4546CMC 2LN TH |
150 |
|
Datasheet |
- | - | 2 | - | - | - | - | - | 2500V (2.5kV) | 130°C | - | - | - | - | - |
|
ACM2520-601-2P-T002CMC 300MA 2LN 600 OHM SMD |
768 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 600 Ohms @ 100 MHz | - | 300mA | 450mOhm | 20V | - | -40°C ~ 85°C | - | - | - | - | - |
|
ACM4520-142-2P-T000CMC 1.7A 2LN 1.4K OHM SMD |
516 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 1.4 kOhms @ 100 MHz | - | 1.7A | 80mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
DR221-474AECMC 470UH 100MA 2LN SMD |
95 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | - | 470 µH @ 10 kHz | 100mA | 350mOhm | 50V | 100V | -40°C ~ 125°C | - | - | - | - | - |
|
CMS1-14-RCMC 205UH 850MA 2LN SMD |
67 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 205 µH @ 100 kHz | 850mA | 186mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|

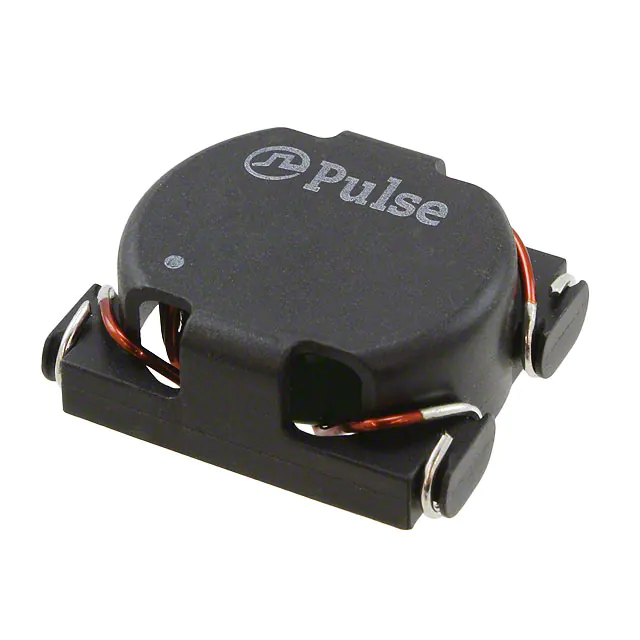

PA2757NLCMC 9A 2LN SMD |
59 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | - | 9A | 9.75mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
P0502NLCMC 14A 2LN SMD |
0 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 14A | 8mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
|
TCK-053CMC 830UH 3.3A 2LN TH |
80 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 830 µH @ 100 kHz | 3.3A | 31mOhm | 500V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
P0502NLTCMC 14A 2LN SMD |
119 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 14A | 8mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
|
B82722S0193A040CMC 380UH 19A 2LN SMD |
96 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 380 µH @ 100 kHz | 19A | 3mOhm | 80V | 48V | - | - | - | - | - | - |
|
8113-RCCMC 5MH 8.9A 2LN TH |
28 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 5 mH @ 1 kHz | 8.9A | 22mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

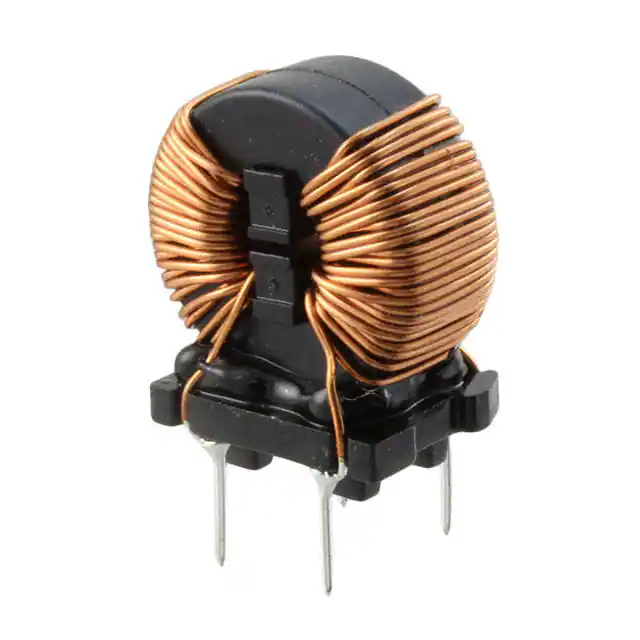

7448030333CMC 33MH 2.5A 2LN TH |
55 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 33 mH @ 10 kHz | 2.5A | 94mOhm | - | 300V | -55° C ~ 125°C | - | - | - | - | - |
|
8121-RCCMC 1MH 20A 2LN TH |
69 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 1 mH @ 1 kHz | 20A | 7mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
