Chassis Mount Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Temperature Coefficient | Operating Temperature | Features | Coating, Housing Type | Mounting Feature | Size / Dimension | Height - Seated (Max) | Lead Style | Failure Rate | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HSC30039RJRES CHAS MNT 39 OHM 5% 300W |
517 |
|
Datasheet |
HS, CGS | Axial, Box | Tray | Active | 39 Ohms | ±5% | 300W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 5.039" L x 2.874" W (128.00mm x 73.00mm) | 1.654" (42.00mm) | Terminal Screw Type | - | - | - |
|
TE500B10RJRES CHAS MNT 10 OHM 5% 500W |
262 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 10 Ohms | ±5% | 500W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 1.969" Dia x 12.441" L (50.00mm x 316.00mm) | - | Solder Lugs | - | - | - |
|
|
TE500B47RJRES CHAS MNT 47 OHM 5% 500W |
117 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 47 Ohms | ±5% | 500W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 1.969" Dia x 12.441" L (50.00mm x 316.00mm) | - | Solder Lugs | - | - | - |
|
HSC2502R2JRES CHAS MNT 2.2 OHM 5% 250W |
39 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 2.2 Ohms | ±5% | 250W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 4.291" L x 2.874" W (109.00mm x 73.00mm) | 1.654" (42.00mm) | Terminal Screw Type | - | - | - |
|
|
HSC25011RJRES CHAS MNT 11 OHM 5% 250W |
29 |
|
Datasheet |
HS, CGS | Axial, Box | Tray | Active | 11 Ohms | ±5% | 250W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 4.291" L x 2.874" W (109.00mm x 73.00mm) | 1.654" (42.00mm) | Terminal Screw Type | - | - | - |
|

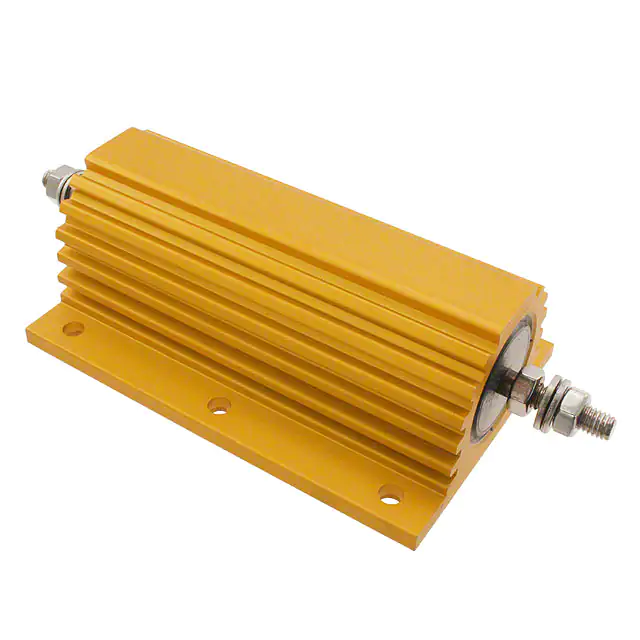

HSC30033RJRES CHAS MNT 33 OHM 5% 300W |
285 |
|
Datasheet |
HS, CGS | Axial, Box | Box | Active | 33 Ohms | ±5% | 300W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 5.000" L x 2.811" W (127.00mm x 71.40mm) | 1.654" (42.00mm) | Terminal Screw Type | - | - | - |
|
|
HSC3003R6JRES CHAS MNT 3.6 OHM 5% 300W |
142 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 3.6 Ohms | ±5% | 300W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 5.039" L x 2.874" W (128.00mm x 73.00mm) | 1.654" (42.00mm) | Terminal Screw Type | - | - | - |
|
|
HSC300R56JRES CHAS MNT 0.56 OHM 5% 300W |
57 |
|
Datasheet |
HS, CGS | Axial, Box | Tray | Active | 560 mOhms | ±5% | 300W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 5.039" L x 2.874" W (128.00mm x 73.00mm) | 1.654" (42.00mm) | Terminal Screw Type | - | - | - |
|
|
HSC300220RJRES CHAS MNT 220 OHM 5% 300W |
56 |
|
Datasheet |
HS, CGS | Axial, Box | Box | Active | 220 Ohms | ±5% | 300W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 5.039" L x 2.874" W (128.00mm x 73.00mm) | 1.654" (42.00mm) | Solder Lugs | - | - | - |
|
|
HSC3001R0JRES CHAS MNT 1 OHM 5% 300W |
50 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 1 Ohms | ±5% | 300W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 5.039" L x 2.874" W (128.00mm x 73.00mm) | 1.654" (42.00mm) | Terminal Screw Type | - | - | - |
|
|
HSC300100RJRES CHAS MNT 100 OHM 5% 300W |
40 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 100 Ohms | ±5% | 300W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 5.039" L x 2.874" W (128.00mm x 73.00mm) | 1.654" (42.00mm) | Terminal Screw Type | - | - | - |
|
|
HSC30047RJRES CHAS MNT 47 OHM 5% 300W |
38 |
|
Datasheet |
HS, CGS | Axial, Box | Bulk | Active | 47 Ohms | ±5% | 300W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 5.039" L x 2.874" W (128.00mm x 73.00mm) | 1.654" (42.00mm) | Terminal Screw Type | - | - | - |
|
|
HSC3006R0JRES CHAS MNT 6 OHM 5% 300W |
28 |
|
Datasheet |
HS, CGS | Axial, Box | Tray | Active | 6 Ohms | ±5% | 300W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 5.039" L x 2.874" W (128.00mm x 73.00mm) | 1.654" (42.00mm) | Terminal Screw Type | - | - | - |
|
NHSC2001R5JRES CHAS MNT 1.5 OHM 5% 200W |
87 |
|
Datasheet |
HS, CGS | Axial, Box | Tray | Active | 1.5 Ohms | ±5% | 200W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 3.543" L x 2.874" W (90.00mm x 73.00mm) | 1.654" (42.00mm) | Terminal Screw Type | - | - | - |
|
|
TE750B1R5JRES CHAS MNT 1.5 OHM 5% 750W |
82 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 1.5 Ohms | ±5% | 750W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 1.969" Dia x 12.441" L (50.00mm x 316.00mm) | - | Solder Lugs | - | - | - |
|
BDS2A10010RKRES CHAS MNT 10 OHM 10% 100W |
240 |
|
Datasheet |
BDS, CGS | SOT-227-2 | Tray | Active | 10 Ohms | ±10% | 100W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | RF, High Frequency | Epoxy Coated | Flanges | 1.488" L x 1.000" W (37.80mm x 25.40mm) | 0.827" (21.00mm) | M4 Threaded | - | - | - |
|
|
BDS2A100220RKRES CHAS MNT 220 OHM 10% 100W |
97 |
|
Datasheet |
BDS, CGS | SOT-227-2 | Tray | Active | 220 Ohms | ±10% | 100W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | RF, High Frequency | Epoxy Coated | Flanges | 1.488" L x 1.000" W (37.80mm x 25.40mm) | 0.827" (21.00mm) | M4 Threaded | - | - | - |
|
TE1000B330RJRES CHAS MNT 330 OHM 5% 1000W |
133 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 330 Ohms | ±5% | 1000W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 11.811" L (60.00mm x 300.00mm) | - | Solder Lugs | - | - | - |
|
|
TE1000B150RJRES CHAS MNT 150 OHM 5% 1000W |
101 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 150 Ohms | ±5% | 1000W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 11.811" L (60.00mm x 300.00mm) | - | Solder Lugs | - | - | - |
|
|
TE1000B180RJRES CHAS MNT 180 OHM 5% 1000W |
33 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 180 Ohms | ±5% | 1000W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 11.811" L (60.00mm x 300.00mm) | - | Solder Lugs | - | - | - |
