Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESH338M010AL3AACAP ALUM 3300UF 20% 10V RADIAL |
3,996 |
|
Datasheet |
ESH | Bulk | Active | 3300 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | 1.265 A @ 10 kHz | - | 0.197" (5.00mm) | 0.512" Dia (13.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EEE-FK0J221AVCAP ALUM 220UF 20% 6.3V SMD |
2,999 |
|
Datasheet |
FK, Anti-Vibration | Tape & Reel (TR) | Active | 220 µF | ±20% | 6.3 V | 360mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 156 mA @ 120 Hz | 240 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.252" (6.40mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UPM2A680MHD6TOCAP ALUM 68UF 20% 100V RADIAL TH |
1,338 |
|
Datasheet |
UPM | Cut Tape (CT) | Not For New Designs | 68 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 380 mA @ 120 Hz | 605 mA @ 10 kHz | 230 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.669" (17.00mm) | - | Through Hole | |
|

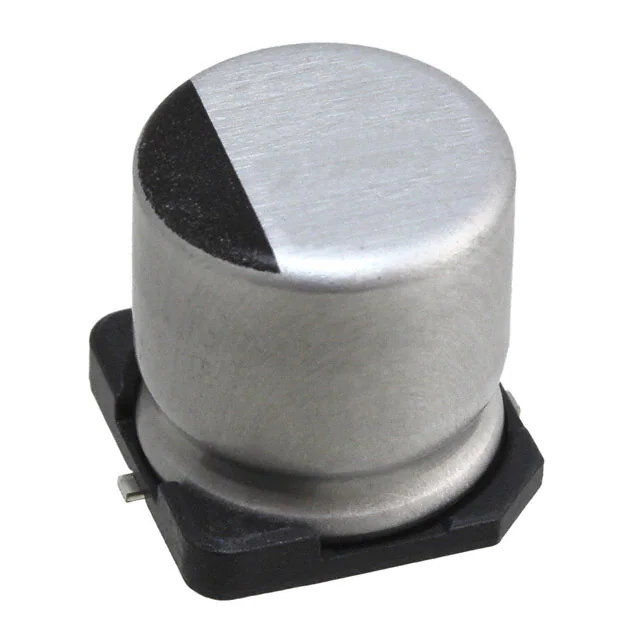

UWD1C681MCL1GSCAP ALUM 680UF 20% 16V SMD |
1,274 |
|
Datasheet |
UWD | Tape & Reel (TR) | Active | 680 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 335 mA @ 120 Hz | 670 mA @ 100 kHz | 90 mOhms | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
UWD1A681MCL1GSCAP ALUM 680UF 20% 10V SMD |
1,087 |
|
Datasheet |
UWD | Tape & Reel (TR) | Active | 680 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 335 mA @ 120 Hz | 670 mA @ 100 kHz | 90 mOhms | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
UPW1H271MPD1TDCAP ALUM 270UF 20% 50V RADIAL TH |
1,019 |
|
Datasheet |
UPW | Cut Tape (CT) | Not For New Designs | 270 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 780 mA @ 120 Hz | 1.2 A @ 100 kHz | 82 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UWG1C471MNL1GSCAP ALUM 470UF 20% 16V SMD |
963 |
|
Datasheet |
UWG | Tape & Reel (TR) | Active | 470 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | AEC-Q200 | General Purpose | 335 mA @ 120 Hz | 670 mA @ 100 kHz | 150 mOhms | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
EEE-FK1A151AVCAP ALUM 150UF 20% 10V SMD |
934 |
|
Datasheet |
FK, Anti-Vibration | Tape & Reel (TR) | Active | 150 µF | ±20% | 10 V | 360mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 156 mA @ 120 Hz | 240 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.252" (6.40mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UPJ1E122MHD1TOCAP ALUM 1200UF 20% 25V RADIAL |
802 |
|
Datasheet |
UPJ | Cut Tape (CT) | Not For New Designs | 1200 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | 1.76 A @ 10 kHz | 43 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UBW1J330MPD1TDCAP ALUM 33UF 20% 63V RADIAL TH |
746 |
|
Datasheet |
UBW | Cut Tape (CT) | Active | 33 µF | ±20% | 63 V | - | 1000 Hrs @ 135°C | -55°C ~ 135°C | Polar | - | Automotive | 75 mA @ 120 Hz | 150 mA @ 100 kHz | 1.5 Ohms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.531" (13.50mm) | - | Through Hole | |
|
|
UWG0J152MNL1GSCAP ALUM 1500UF 20% 6.3V SMD |
679 |
|
Datasheet |
UWG | Tape & Reel (TR) | Active | 1500 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | AEC-Q200 | General Purpose | 335 mA @ 120 Hz | 670 mA @ 100 kHz | 150 mOhms | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
EEE-FK1V330AVCAP ALUM 33UF 20% 35V SMD |
627 |
|
Datasheet |
FK, Anti-Vibration | Tape & Reel (TR) | Active | 33 µF | ±20% | 35 V | 360mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 156 mA @ 120 Hz | 240 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.252" (6.40mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UCZ1K330MCL1GSCAP ALUM 33UF 20% 80V SMD |
470 |
|
Datasheet |
UCZ | Tape & Reel (TR) | Active | 33 µF | ±20% | 80 V | 550mOhm | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | General Purpose | 57.5 mA @ 120 Hz | 115 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
UFW1A682MHDCAP ALUM 6800UF 20% 10V RADIAL |
298 |
|
Datasheet |
UFW | Bulk | Not For New Designs | 6800 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.15 A @ 120 Hz | 2.4725 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
UPW0J332MHD1TOCAP ALUM 3300UF 20% 6.3V RADIAL |
204 |
|
Datasheet |
UPW | Cut Tape (CT) | Not For New Designs | 3300 µF | ±20% | 6.3 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.407 A @ 120 Hz | 1.655 A @ 10 kHz | 38 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UPM1H331MPDCAP ALUM 330UF 20% 50V RADIAL TH |
4,935 |
|
Datasheet |
UPM | Bulk | Not For New Designs | 330 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 995 mA @ 120 Hz | 1.3 A @ 10 kHz | 55 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
EEE-FN1A221UVCAP ALUM 220UF 20% 10V SMD |
2,616 |
|
Datasheet |
FN, Anti-Vibration | Tape & Reel (TR) | Active | 220 µF | ±20% | 10 V | 360mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 156 mA @ 120 Hz | 240 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.252" (6.40mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
ESMG350ELL331MJC5SCAP ALUM 330UF 20% 35V RADIAL TH |
2,000 |
|
Datasheet |
SMG | Bulk | Active | 330 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 490 mA @ 120 Hz | 735 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
|
EEE-FN1V680UVCAP ALUM 68UF 20% 35V SMD |
1,466 |
|
Datasheet |
FN, Anti-Vibration | Tape & Reel (TR) | Active | 68 µF | ±20% | 35 V | 360mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 156 mA @ 120 Hz | 240 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.252" (6.40mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|

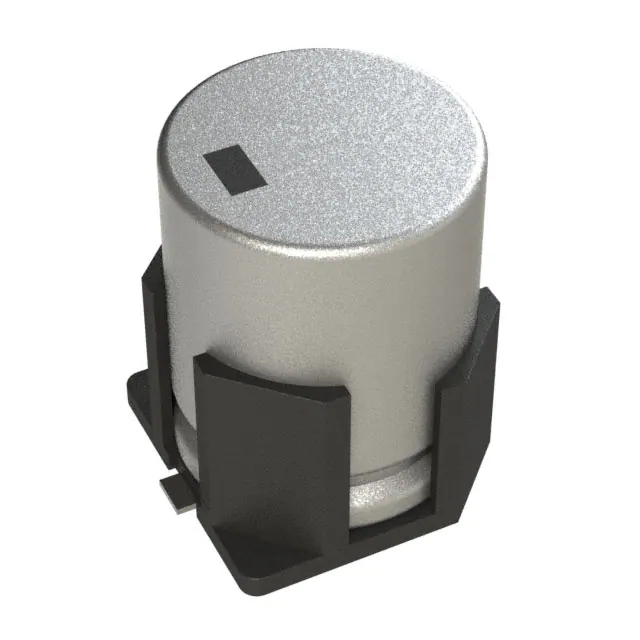

EEE-TC1A561UVCAP ALUM 560UF 20% 10V SMD |
1,280 |
|
Datasheet |
TCU, Anti-Vibration | Tape & Reel (TR) | Active | 560 µF | ±20% | 10 V | 200mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 266.5 mA @ 120 Hz | 410 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.425" (10.80mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
