Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

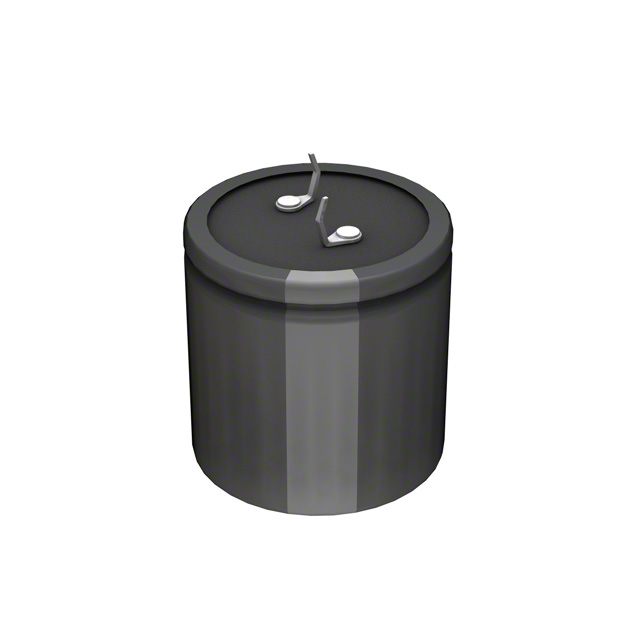

LPW682M1VP30V-WCAP ALUM 6800UF 20% 35V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 6800 µF | ±20% | 35 V | 85mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.86 A @ 120 Hz | 3.146 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|

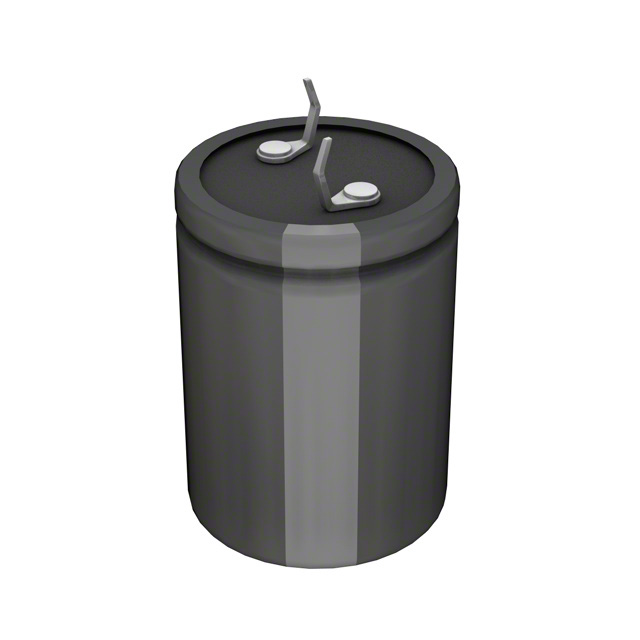

LPW821M2AN30V-WCAP ALUM 820UF 20% 100V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 820 µF | ±20% | 100 V | 404mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | 1.86 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|

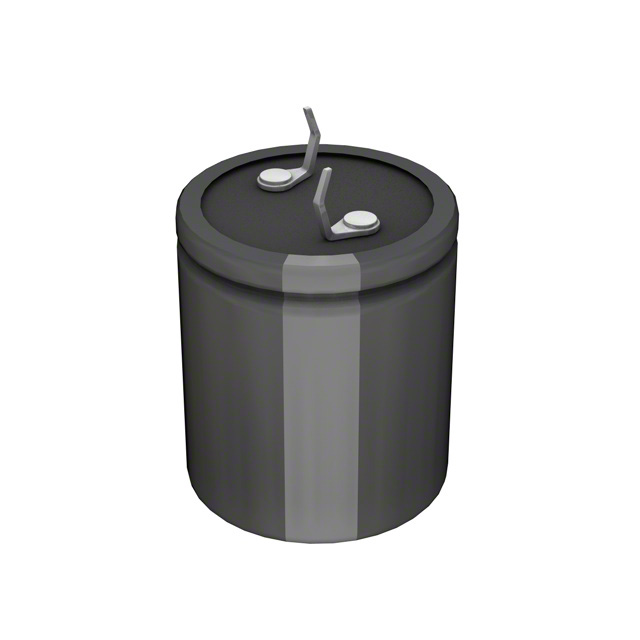

LPW822M1AN25V-WCAP ALUM 8200UF 20% 10V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 8200 µF | ±20% | 10 V | 101mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.39 A @ 120 Hz | 2.629 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|

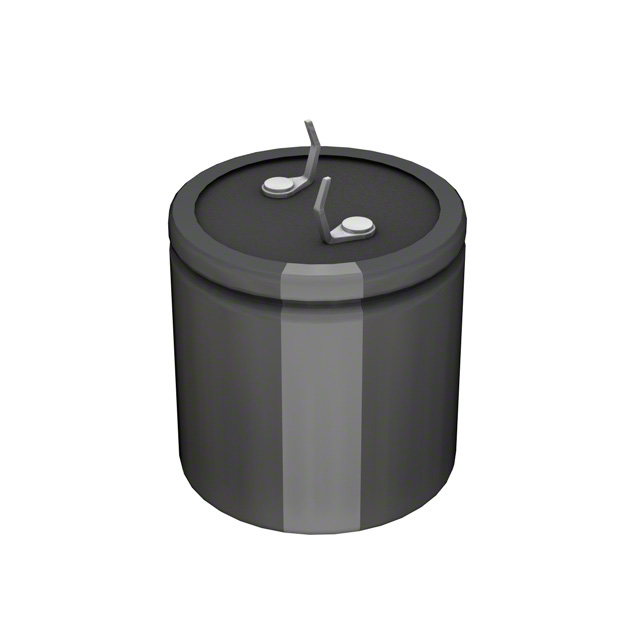

LPW822M1AO25V-WCAP ALUM 8200UF 20% 10V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 8200 µF | ±20% | 10 V | 101mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.46 A @ 120 Hz | 2.706 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
LPW822M1CN30V-WCAP ALUM 8200UF 20% 16V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 8200 µF | ±20% | 16 V | 101mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.7 A @ 120 Hz | 2.97 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|

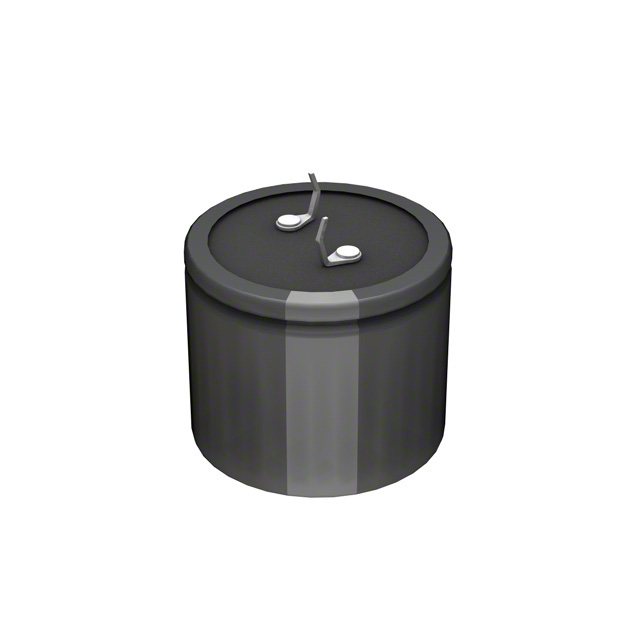

LPW822M1CP25V-WCAP ALUM 8200UF 20% 16V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 8200 µF | ±20% | 16 V | 101mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.73 A @ 120 Hz | 3.003 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|

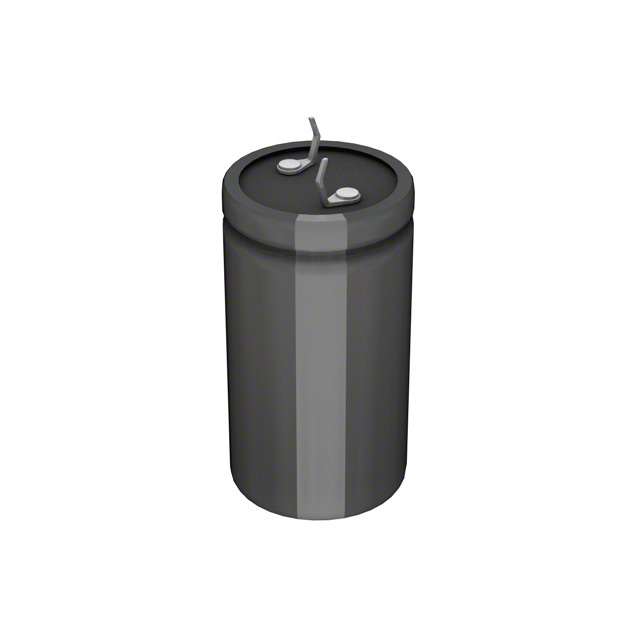

LPW822M1EN40V-WCAP ALUM 8200UF 20% 25V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 8200 µF | ±20% | 25 V | 91mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.16 A @ 120 Hz | 3.476 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
|
LPW822M1EP30V-WCAP ALUM 8200UF 20% 25V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 8200 µF | ±20% | 25 V | 91mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.03 A @ 120 Hz | 3.333 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|

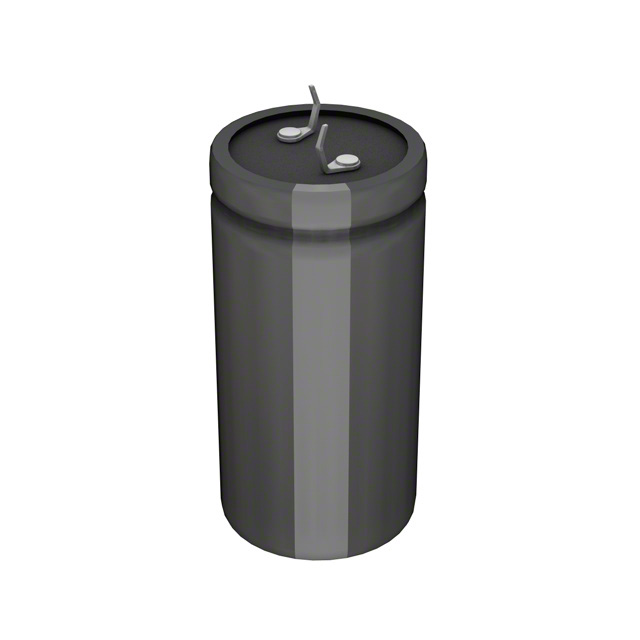

LPW822M1HO50V-WCAP ALUM 8200UF 20% 50V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 8200 µF | ±20% | 50 V | 61mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.62 A @ 120 Hz | 4.344 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|

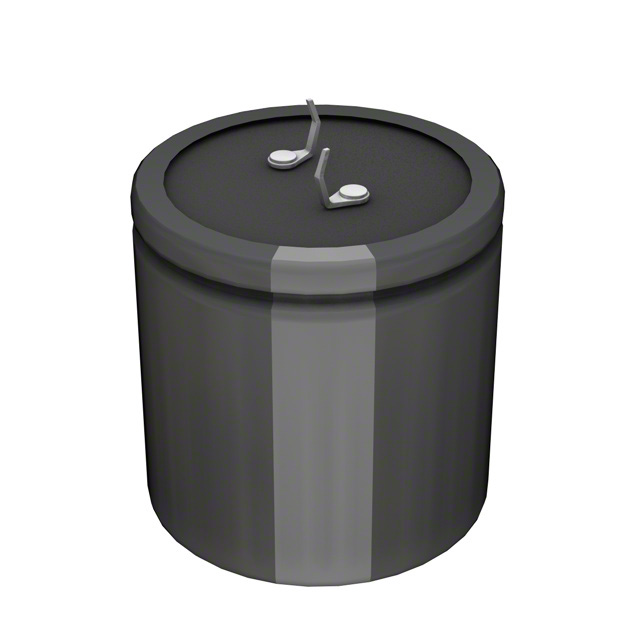

LPW822M1HQ35V-WCAP ALUM 8200UF 20% 50V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 8200 µF | ±20% | 50 V | 61mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.79 A @ 120 Hz | 4.548 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|

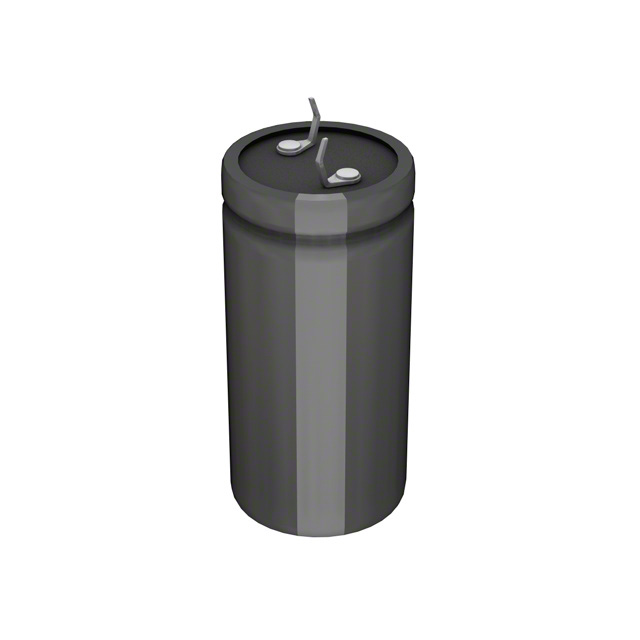

LPW822M1VN45V-WCAP ALUM 8200UF 20% 35V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 8200 µF | ±20% | 35 V | 71mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.25 A @ 120 Hz | 3.575 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|

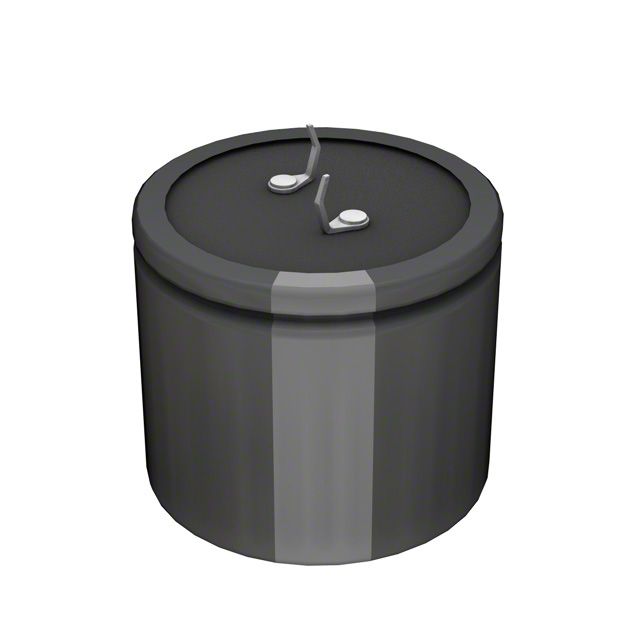

LPW822M1VQ30V-WCAP ALUM 8200UF 20% 35V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 8200 µF | ±20% | 35 V | 71mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.42 A @ 120 Hz | 3.762 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
LPX101M450A5P3CAP ALUM 100UF 20% 450V SNAP TH |
0 |
|
Datasheet |
LPX | Bulk | Active | 100 µF | ±20% | 450 V | 1.989Ohm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 800 mA @ 120 Hz | 960 mA @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|

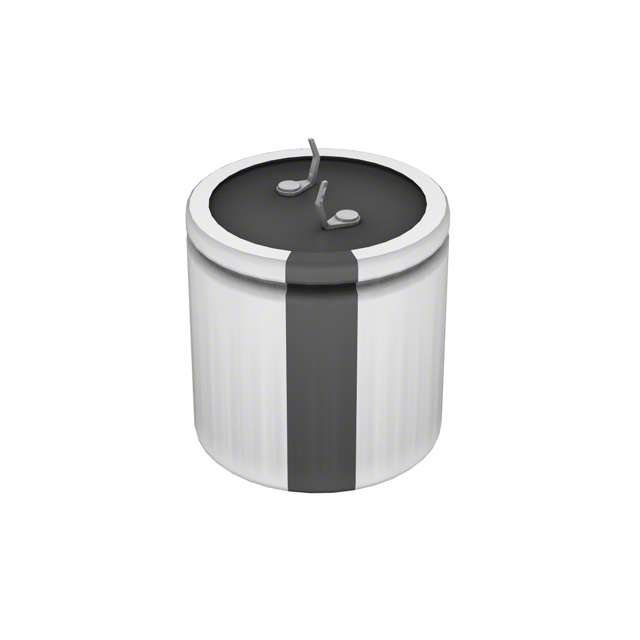

LPX102M160E3P3CAP ALUM 1000UF 20% 160V SNAP TH |
0 |
|
Datasheet |
LPX | Bulk | Active | 1000 µF | ±20% | 160 V | 199mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 2.75 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|

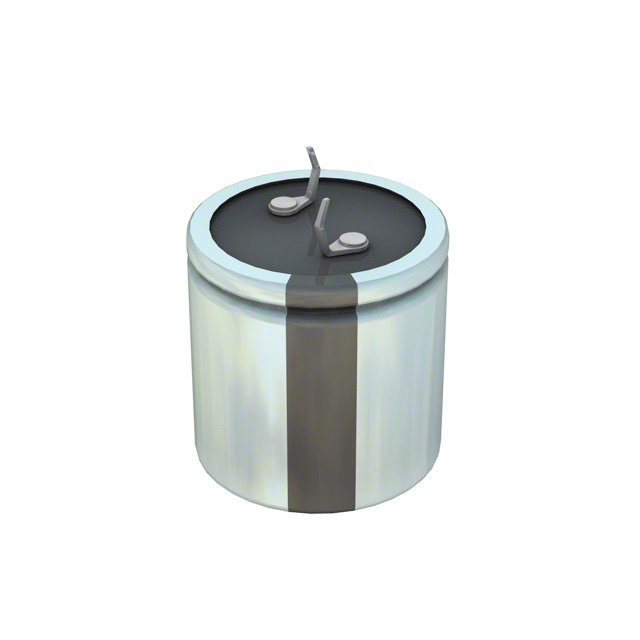

LPX121M400C1P3CAP ALUM 120UF 20% 400V SNAP TH |
0 |
|
Datasheet |
LPX | Bulk | Active | 120 µF | ±20% | 400 V | 1.658Ohm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 700 mA @ 120 Hz | 840 mA @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|

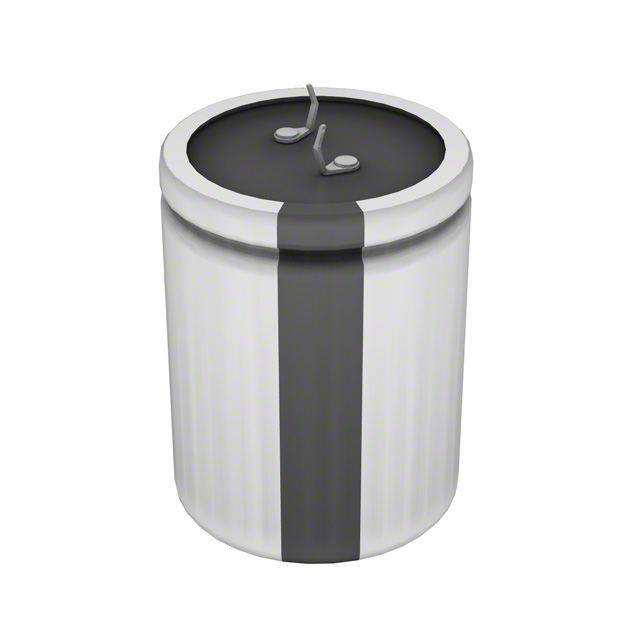

LPX222M160H4P3CAP ALUM 2200UF 20% 160V SNAP TH |
0 |
|
Datasheet |
LPX | Bulk | Active | 2200 µF | ±20% | 160 V | 90mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.2 A @ 120 Hz | 4.62 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|

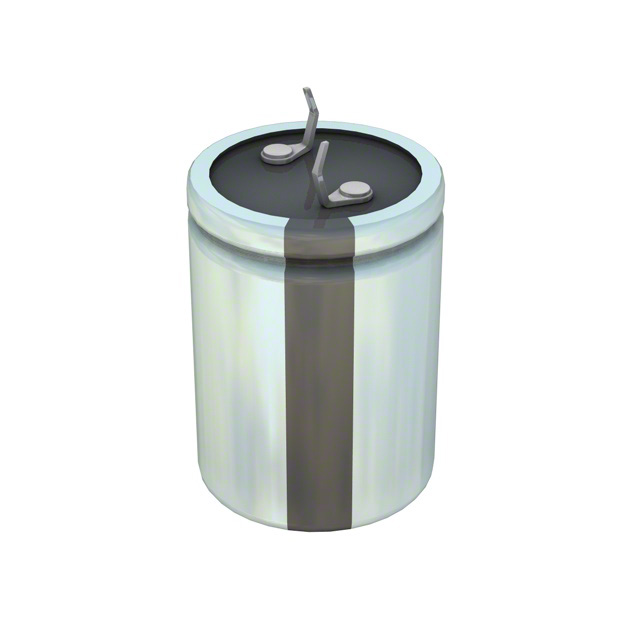

LPX271M250A3P3CAP ALUM 270UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LPX | Bulk | Active | 270 µF | ±20% | 250 V | 737mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 1.54 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|

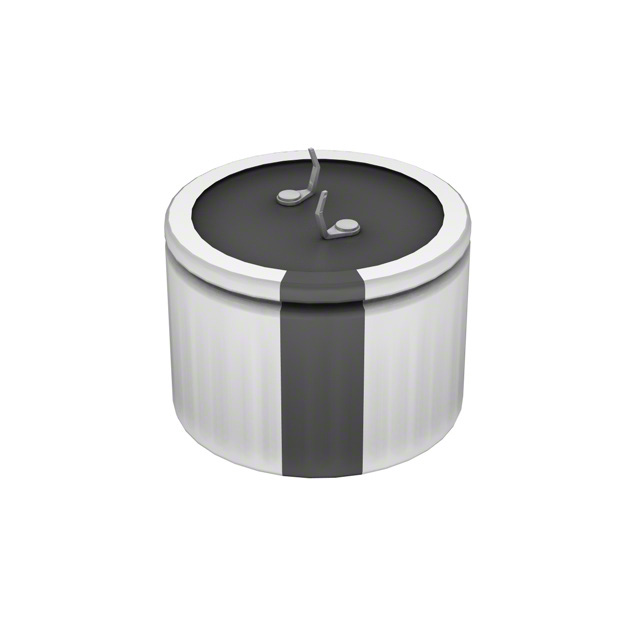

LPX271M350H1P3CAP ALUM 270UF 20% 350V SNAP TH |
0 |
|
Datasheet |
LPX | Bulk | Active | 270 µF | ±20% | 350 V | 737mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 1.56 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|

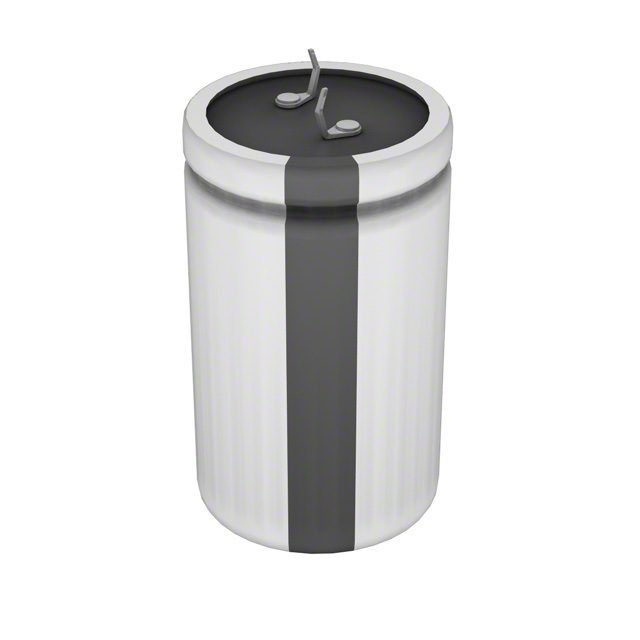

LPX331M450E9P3CAP ALUM 330UF 20% 450V SNAP TH |
0 |
|
Datasheet |
LPX | Bulk | Active | 330 µF | ±20% | 450 V | 603mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2 A @ 120 Hz | 2.4 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
LPX681M250H3P3CAP ALUM 680UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LPX | Bulk | Active | 680 µF | ±20% | 250 V | 293mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 2.75 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
