Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

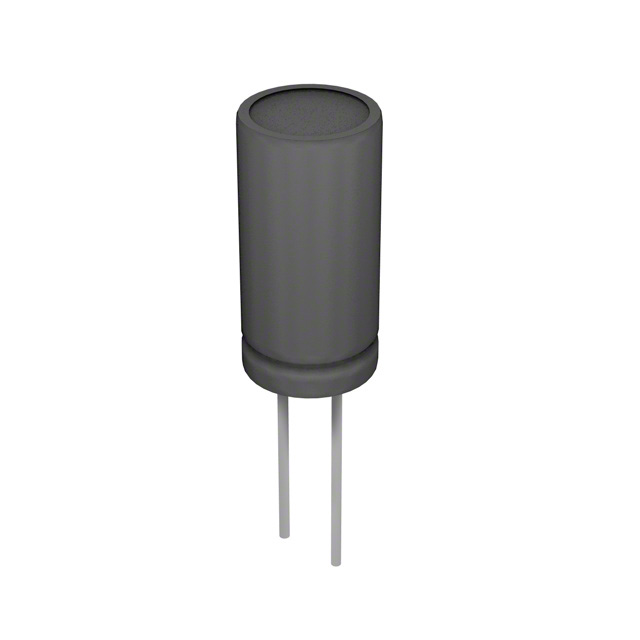

SH102M016STCAP ALUM 1000UF 20% 16V RADIAL |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 1000 µF | ±20% | 16 V | 240mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 700 mA @ 120 Hz | 840 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.787" (20.00mm) | - | Through Hole | |
|
SH102M025STCAP ALUM 1000UF 20% 25V RADIAL |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 1000 µF | ±20% | 25 V | 210mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 855 mA @ 120 Hz | 1.026 A @ 10 kHz | - | 0.197" (5.00mm) | 0.512" Dia (13.00mm) | 0.787" (20.00mm) | - | Through Hole | |
|
SH102M035STCAP ALUM 1000UF 20% 35V RADIAL |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 1000 µF | ±20% | 35 V | 190mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 995 mA @ 120 Hz | 1.393 A @ 10 kHz | - | 0.197" (5.00mm) | 0.512" Dia (13.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
SH102M050STCAP ALUM 1000UF 20% 50V RADIAL |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 1000 µF | ±20% | 50 V | 160mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.11 A @ 120 Hz | 1.554 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
SH102M063STCAP ALUM 1000UF 20% 63V RADIAL |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 1000 µF | ±20% | 63 V | 130mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.68 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
SH102M6R3STCAP ALUM 1000UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 1000 µF | ±20% | 6.3 V | 340mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 470 mA @ 120 Hz | 564 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.472" (12.00mm) | - | Through Hole | |
|
SH220M025STCAP ALUM 22UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 22 µF | ±20% | 25 V | 9.65Ohm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 60 mA @ 120 Hz | 72 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
SH220M035STCAP ALUM 22UF 20% 35V RADIAL TH |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 22 µF | ±20% | 35 V | 8.44Ohm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 65 mA @ 120 Hz | 91 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.236" Dia (6.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
|
SH220M050STCAP ALUM 22UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 22 µF | ±20% | 50 V | 7.23Ohm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 75 mA @ 120 Hz | 105 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
|
SH220M063STCAP ALUM 22UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 22 µF | ±20% | 63 V | 6.03Ohm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 90 mA @ 120 Hz | 126 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.236" Dia (6.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
SH220M100STCAP ALUM 22UF 20% 100V RADIAL TH |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 22 µF | ±20% | 100 V | 6.03Ohm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 115 mA @ 120 Hz | 161 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.453" (11.50mm) | - | Through Hole | |
|
|
SH220M160STCAP ALUM 22UF 20% 160V RADIAL TH |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 22 µF | ±20% | 160 V | 9.04Ohm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 130 mA @ 120 Hz | 208 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.787" (20.00mm) | - | Through Hole | |
|
|
SH220M200STCAP ALUM 22UF 20% 200V RADIAL TH |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 22 µF | ±20% | 200 V | 9.04Ohm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 140 mA @ 120 Hz | 224 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.787" (20.00mm) | - | Through Hole | |
|
|
SH220M250STCAP ALUM 22UF 20% 250V RADIAL TH |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 22 µF | ±20% | 250 V | 9.04Ohm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 155 mA @ 120 Hz | 248 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.512" Dia (13.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
SH220M400STCAP ALUM 22UF 20% 400V RADIAL TH |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 22 µF | ±20% | 400 V | 12.06Ohm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 110 mA @ 120 Hz | 176 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
SH221M010STCAP ALUM 220UF 20% 10V RADIAL TH |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 220 µF | ±20% | 10 V | 1.33Ohm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 180 mA @ 120 Hz | 216 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.236" Dia (6.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
|
SH221M016STCAP ALUM 220UF 20% 16V RADIAL TH |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 220 µF | ±20% | 16 V | 1.09Ohm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 232 mA @ 120 Hz | 278.4 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.453" (11.50mm) | - | Through Hole | |
|
|
SH221M025STCAP ALUM 220UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 220 µF | ±20% | 25 V | 960mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 250 mA @ 120 Hz | 300 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.472" (12.00mm) | - | Through Hole | |
|
|
SH221M035STCAP ALUM 220UF 20% 35V RADIAL TH |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 220 µF | ±20% | 35 V | 840mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 315 mA @ 120 Hz | 441 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.472" (12.00mm) | - | Through Hole | |
|
SH221M050STCAP ALUM 220UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
SH | Bulk | Obsolete | 220 µF | ±20% | 50 V | 720mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 700 mA @ 120 Hz | 980 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.630" (16.00mm) | - | Through Hole |
