Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LPW103M1EN45V-WCAP ALUM 10000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 10000 µF | ±20% | 25 V | 75mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.45 A @ 120 Hz | 3.795 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
LPW103M1EP30V-WCAP ALUM 10000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 10000 µF | ±20% | 25 V | 75mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.14 A @ 120 Hz | 3.454 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
LPW103M1HP45V-WCAP ALUM 10000UF 20% 50V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 10000 µF | ±20% | 50 V | 50mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.72 A @ 120 Hz | 4.464 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
LPW103M1VO45V-WCAP ALUM 10000UF 20% 35V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 10000 µF | ±20% | 35 V | 58mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.41 A @ 120 Hz | 3.751 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
LPW103M1VQ30V-WCAP ALUM 10000UF 20% 35V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 10000 µF | ±20% | 35 V | 58mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.51 A @ 120 Hz | 3.861 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
LPW123M1AN30V-WCAP ALUM 12000UF 20% 10V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 12000 µF | ±20% | 10 V | 83mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.81 A @ 120 Hz | 3.091 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
LPW123M1AP25V-WCAP ALUM 12000UF 20% 10V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 12000 µF | ±20% | 10 V | 83mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.84 A @ 120 Hz | 3.124 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
LPW123M1CN40V-WCAP ALUM 12000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 12000 µF | ±20% | 16 V | 69mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.3 A @ 120 Hz | 3.63 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
|
LPW123M1CP30V-WCAP ALUM 12000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 12000 µF | ±20% | 16 V | 69mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.16 A @ 120 Hz | 3.476 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|

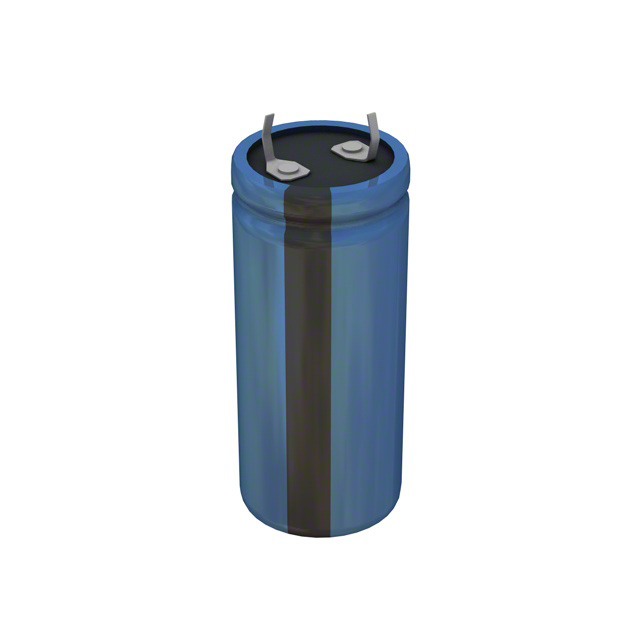

LPW123M1EN50V-WCAP ALUM 12000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 12000 µF | ±20% | 25 V | 62mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.74 A @ 120 Hz | 4.114 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
|
LPW123M1EQ30V-WCAP ALUM 12000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 12000 µF | ±20% | 25 V | 62mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.75 A @ 120 Hz | 4.125 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
LPW123M1VO50V-WCAP ALUM 12000UF 20% 35V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 12000 µF | ±20% | 35 V | 48mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.68 A @ 120 Hz | 4.048 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
LPW152M1JN25V-WCAP ALUM 1500UF 20% 63V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 1500 µF | ±20% | 63 V | 276mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.74 A @ 120 Hz | 2.088 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
LPW152M1JP25V-WCAP ALUM 1500UF 20% 63V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 1500 µF | ±20% | 63 V | 276mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.81 A @ 120 Hz | 2.172 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
LPW152M2AN40V-WCAP ALUM 1500UF 20% 100V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 1500 µF | ±20% | 100 V | 276mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.38 A @ 120 Hz | 2.856 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
|
LPW152M2AQ30V-WCAP ALUM 1500UF 20% 100V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 1500 µF | ±20% | 100 V | 276mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.54 A @ 120 Hz | 3.048 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
LPW153M1AN35V-WCAP ALUM 15000UF 20% 10V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 15000 µF | ±20% | 10 V | 66mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.14 A @ 120 Hz | 3.454 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
|
LPW153M1AP25V-WCAP ALUM 15000UF 20% 10V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 15000 µF | ±20% | 10 V | 66mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.97 A @ 120 Hz | 3.267 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
LPW153M1CN45V-WCAP ALUM 15000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 15000 µF | ±20% | 16 V | 55mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.62 A @ 120 Hz | 3.982 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
LPW153M1CQ25V-WCAP ALUM 15000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 15000 µF | ±20% | 16 V | 55mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.55 A @ 120 Hz | 3.905 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.984" (25.00mm) | - | Through Hole |
