Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LP103M035E9P3CAP ALUM 10000UF 20% 35V SNAP TH |
0 |
|
Datasheet |
LP | Bulk | Active | 10000 µF | ±20% | 35 V | 41mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
LP103M063H9P3CAP ALUM 10000UF 20% 63V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 10000 µF | ±20% | 63 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
|
LP122M200E9P3CAP ALUM 1200UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LP | Bulk | Active | 1200 µF | ±20% | 200 V | 165mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.81 A @ 120 Hz | 3.934 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|

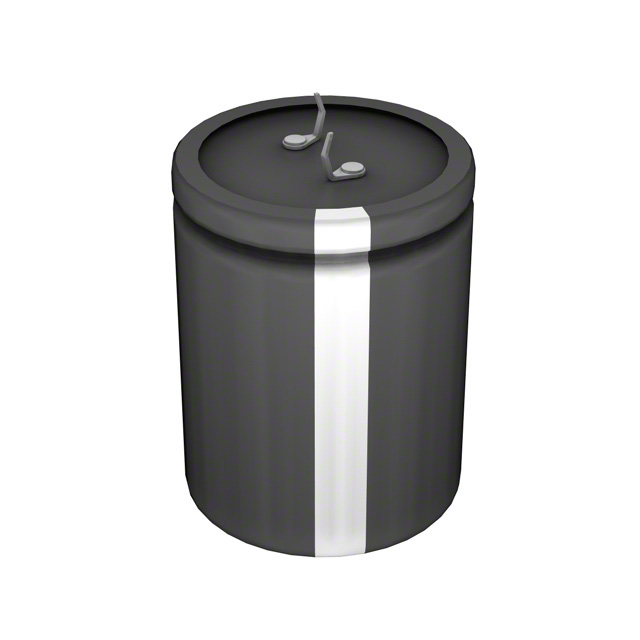

LP152M200H4P3CAP ALUM 1500UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LP | Bulk | Active | 1500 µF | ±20% | 200 V | 134mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.33 A @ 120 Hz | 4.662 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
LP153M016H3P3CAP ALUM 15000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
LP | Bulk | Active | 15000 µF | ±20% | 16 V | 46mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3 A @ 120 Hz | 3.3 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
LP331M200E3P3CAP ALUM 330UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LP | Bulk | Active | 330 µF | ±20% | 200 V | 750mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 886 mA @ 120 Hz | 1.2404 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
LP331M450H5P3CAP ALUM 330UF 20% 450V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 330 µF | ±20% | 450 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
LP470M450C1P3CAP ALUM 47UF 20% 450V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 47 µF | ±20% | 450 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|

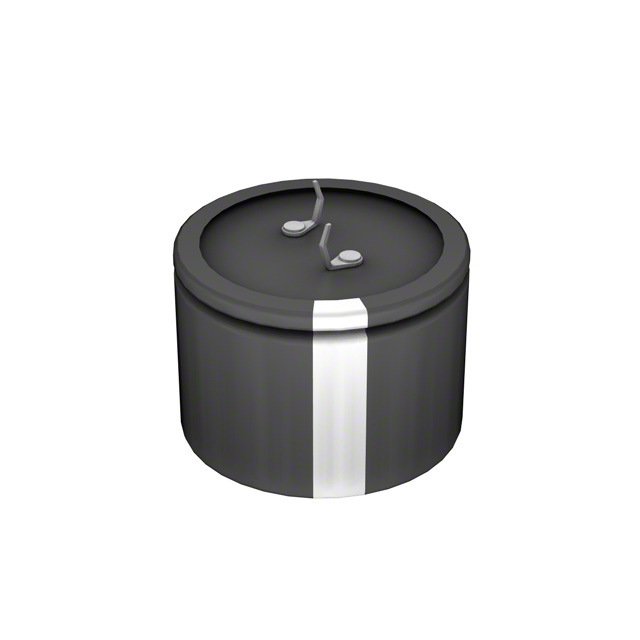

LP681M200H1P3CAP ALUM 680UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LP | Bulk | Active | 680 µF | ±20% | 200 V | 370mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.51 A @ 120 Hz | 2.114 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
LP681M250E9P3CAP ALUM 680UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LP | Bulk | Active | 680 µF | ±20% | 250 V | 370mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.92 A @ 120 Hz | 2.688 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
|
LP681M250H5P3CAP ALUM 680UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LP | Bulk | Active | 680 µF | ±20% | 250 V | 370mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.07 A @ 120 Hz | 2.898 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
LP682M050E7P3CAP ALUM 6800UF 20% 50V SNAP TH |
0 |
|
Datasheet |
LP | Bulk | Active | 6800 µF | ±20% | 50 V | 49mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.16 A @ 120 Hz | 3.476 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
LPW102M1JN25V-WCAP ALUM 1000UF 20% 63V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 1000 µF | ±20% | 63 V | 414mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.42 A @ 120 Hz | 1.704 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
LPW102M1JO25V-WCAP ALUM 1000UF 20% 63V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 1000 µF | ±20% | 63 V | 414mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.46 A @ 120 Hz | 1.752 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
LPW102M2AN30V-WCAP ALUM 1000UF 20% 100V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 1000 µF | ±20% | 100 V | 332mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.71 A @ 120 Hz | 2.052 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
LPW102M2AP25V-WCAP ALUM 1000UF 20% 100V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 1000 µF | ±20% | 100 V | 332mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.2 A @ 120 Hz | 2.64 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
LPW103M1AN30V-WCAP ALUM 10000UF 20% 10V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 10000 µF | ±20% | 10 V | 83mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.69 A @ 120 Hz | 2.959 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
|
LPW103M1AO25V-WCAP ALUM 10000UF 20% 10V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 10000 µF | ±20% | 10 V | 83mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.57 A @ 120 Hz | 2.827 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
LPW103M1CN35V-WCAP ALUM 10000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 10000 µF | ±20% | 16 V | 83mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3 A @ 120 Hz | 3.3 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
|
LPW103M1CP25V-WCAP ALUM 10000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 10000 µF | ±20% | 16 V | 83mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.84 A @ 120 Hz | 3.124 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.984" (25.00mm) | - | Through Hole |
