Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LPW332M1VO25V-WCAP ALUM 3300UF 20% 35V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 3300 µF | ±20% | 35 V | 176mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.04 A @ 120 Hz | 2.244 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|

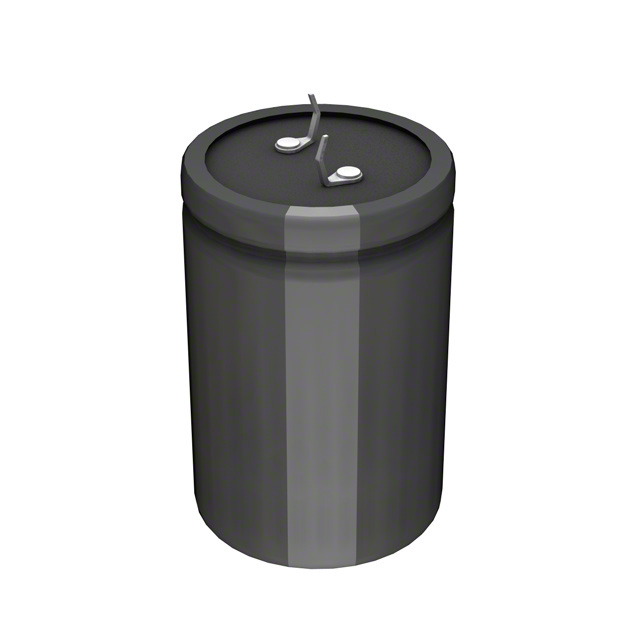

LPW332M2AP45V-WCAP ALUM 3300UF 20% 100V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 3300 µF | ±20% | 100 V | 126mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.27 A @ 120 Hz | 3.924 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
LPW472M1CN25V-WCAP ALUM 4700UF 20% 16V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 4700 µF | ±20% | 16 V | 141mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.81 A @ 120 Hz | 1.991 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
LPW472M1CO25V-WCAP ALUM 4700UF 20% 16V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 4700 µF | ±20% | 16 V | 141mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.21 A @ 120 Hz | 2.431 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
LPW472M1EN30V-WCAP ALUM 4700UF 20% 25V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 4700 µF | ±20% | 25 V | 159mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.49 A @ 120 Hz | 2.739 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
|
LPW472M1EO25V-WCAP ALUM 4700UF 20% 25V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 4700 µF | ±20% | 25 V | 159mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.31 A @ 120 Hz | 2.541 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
LPW472M1HN40V-WCAP ALUM 4700UF 20% 50V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 4700 µF | ±20% | 50 V | 106mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.89 A @ 120 Hz | 3.468 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|

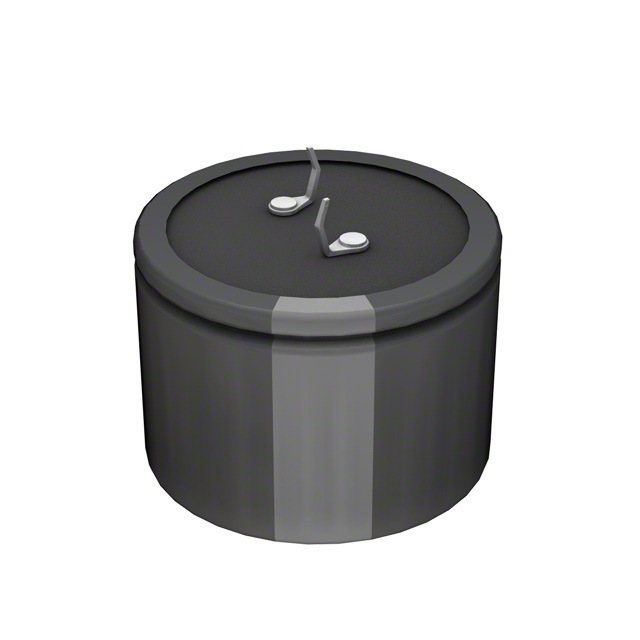

LPW472M1HQ25V-WCAP ALUM 4700UF 20% 50V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 4700 µF | ±20% | 50 V | 106mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.99 A @ 120 Hz | 3.588 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|

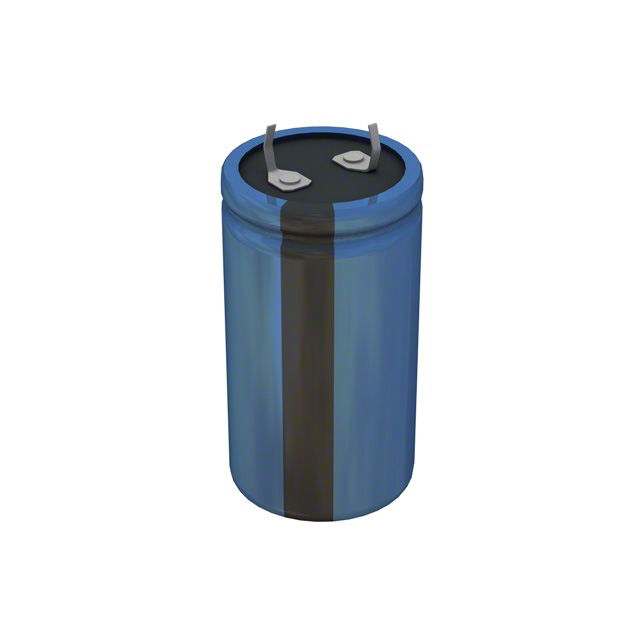

LPW472M1JO45V-WCAP ALUM 4700UF 20% 63V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 4700 µF | ±20% | 63 V | 106mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.11 A @ 120 Hz | 3.732 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
LPW472M1JQ30V-WCAP ALUM 4700UF 20% 63V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 4700 µF | ±20% | 63 V | 106mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.2 A @ 120 Hz | 3.84 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
|
LPW472M1VN30V-WCAP ALUM 4700UF 20% 35V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 4700 µF | ±20% | 35 V | 123mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.41 A @ 120 Hz | 2.651 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
LPW472M1VP25V-WCAP ALUM 4700UF 20% 35V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 4700 µF | ±20% | 35 V | 123mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.44 A @ 120 Hz | 2.684 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
LPW682M1CN25V-WCAP ALUM 6800UF 20% 16V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 6800 µF | ±20% | 16 V | 122mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.4 A @ 120 Hz | 2.64 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
LPW682M1CO25V-WCAP ALUM 6800UF 20% 16V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 6800 µF | ±20% | 16 V | 122mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.47 A @ 120 Hz | 2.717 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|

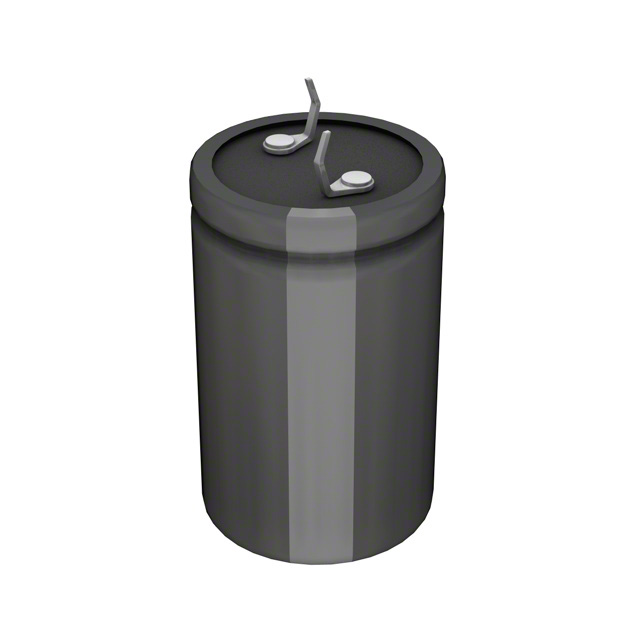

LPW682M1EN35V-WCAP ALUM 6800UF 20% 25V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 6800 µF | ±20% | 25 V | 110mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.87 A @ 120 Hz | 3.157 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
|
LPW682M1EP25V-WCAP ALUM 6800UF 20% 25V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 6800 µF | ±20% | 25 V | 110mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.72 A @ 120 Hz | 2.992 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
LPW682M1HO45V-WCAP ALUM 6800UF 20% 50V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 6800 µF | ±20% | 50 V | 73mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.37 A @ 120 Hz | 4.044 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
|
LPW682M1HQ30V-WCAP ALUM 6800UF 20% 50V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 6800 µF | ±20% | 50 V | 73mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.46 A @ 120 Hz | 4.152 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
|
LPW682M1JP45V-WCAP ALUM 6800UF 20% 63V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 6800 µF | ±20% | 63 V | 73mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.54 A @ 120 Hz | 4.248 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
|
LPW682M1VN40V-WCAP ALUM 6800UF 20% 35V SNAP TH |
0 |
|
Datasheet |
LPW | Bulk | Obsolete | 6800 µF | ±20% | 35 V | 85mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.98 A @ 120 Hz | 3.278 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.575" (40.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
