Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LXZ63VB471M12X30LLCAP ALUM 470UF 20% 63V RADIAL TH |
0 |
|
- |
LXZ | Bulk | Obsolete | 470 µF | ±20% | 63 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.045 A @ 120 Hz | 2.09 A @ 100 kHz | 55 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.181" (30.00mm) | - | Through Hole | |
|
LXZ63VB471M16X20LLCAP ALUM 470UF 20% 63V RADIAL TH |
0 |
|
- |
LXZ | Bulk | Obsolete | 470 µF | ±20% | 63 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 885 mA @ 120 Hz | 1.77 A @ 100 kHz | 59 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.787" (20.00mm) | - | Through Hole | |
|
LXZ63VB681M12X35LLCAP ALUM 680UF 20% 63V RADIAL TH |
0 |
|
- |
LXZ | Bulk | Obsolete | 680 µF | ±20% | 63 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.362 A @ 120 Hz | 2.27 A @ 100 kHz | 47 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.378" (35.00mm) | - | Through Hole | |
|
|
LXZ63VB681M16X25LLCAP ALUM 680UF 20% 63V RADIAL TH |
0 |
|
- |
LXZ | Bulk | Obsolete | 680 µF | ±20% | 63 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.296 A @ 120 Hz | 2.16 A @ 100 kHz | 50 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
LXZ63VB681M18X20LLCAP ALUM 680UF 20% 63V RADIAL TH |
0 |
|
- |
LXZ | Bulk | Obsolete | 680 µF | ±20% | 63 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.374 A @ 120 Hz | 2.29 A @ 100 kHz | 55 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.787" (20.00mm) | - | Through Hole | |
|
LXZ63VB68RM8X12LLCAP ALUM 68UF 20% 63V RADIAL TH |
0 |
|
- |
LXZ | Bulk | Obsolete | 68 µF | ±20% | 63 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 162 mA @ 120 Hz | 405 mA @ 100 kHz | 342 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole | |
|
LXZ63VB821M12X40LLCAP ALUM 820UF 20% 63V RADIAL TH |
0 |
|
- |
LXZ | Bulk | Obsolete | 820 µF | ±20% | 63 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.536 A @ 120 Hz | 2.56 A @ 100 kHz | 42 mOhms | 0.197" (5.00mm) | 0.472" Dia (12.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
|
LXZ63VB821M16X30LLCAP ALUM 820UF 20% 63V RADIAL TH |
0 |
|
- |
LXZ | Bulk | Obsolete | 820 µF | ±20% | 63 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.602 A @ 120 Hz | 2.67 A @ 100 kHz | 43 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
|
LXZ63VB821M18X25LLCAP ALUM 820UF 20% 63V RADIAL TH |
0 |
|
- |
LXZ | Bulk | Obsolete | 820 µF | ±20% | 63 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.554 A @ 120 Hz | 2.59 A @ 100 kHz | 43 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
EEU-ED2V101CAP ALUM 100UF 20% 350V RADIAL |
0 |
|
Datasheet |
ED-A | Bulk | Obsolete | 100 µF | ±20% | 350 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 540 mA @ 120 Hz | 1.2 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.240" (31.50mm) | - | Through Hole | |
|

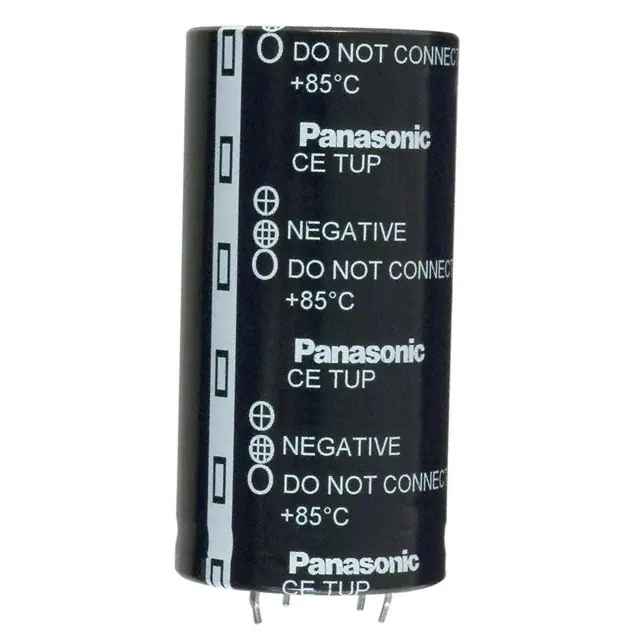

ECE-T2WP561FACAP ALUM 560UF 20% 450V SNAP TH |
0 |
|
Datasheet |
T-UP | Bulk | Obsolete | 560 µF | ±20% | 450 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.886" (22.50mm) | - | - | - | Through Hole | |
|
PSU10865ACAP ALUM 108UF 165V QC CHAS MT |
0 |
|
Datasheet |
PSU | Bulk | Active | 108 µF | 0%, +20% | 165 V | - | - | -40°C ~ 65°C | Bi-Polar | - | Motor Start | - | - | - | - | 1.438" Dia (36.53mm) | 2.750" (69.85mm) | - | Chassis Mount | |
|
PSU46065CAP ALUM 460UF 165V QC CHAS MT |
0 |
|
Datasheet |
PSU | Bulk | Active | 460 µF | 0%, +20% | 165 V | - | - | -40°C ~ 65°C | Bi-Polar | - | Motor Start | - | - | - | - | 1.813" Dia (46.05mm) | 4.375" (111.13mm) | - | Chassis Mount | |
|

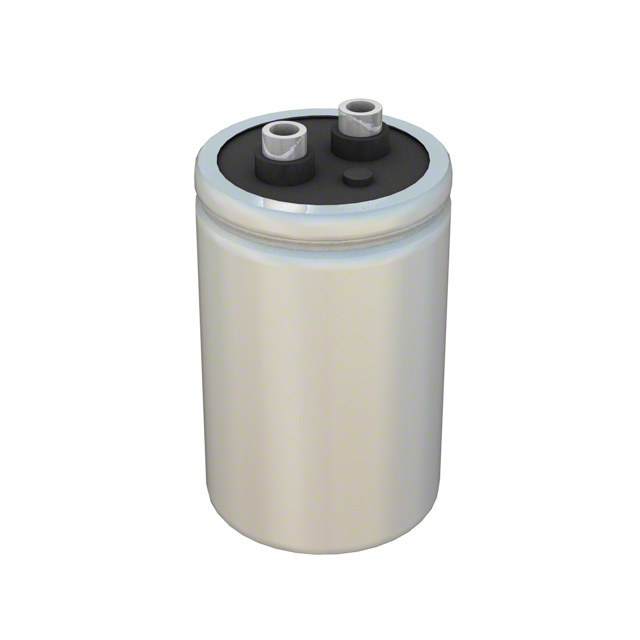

CGO153M7R5LCAP ALUM 15000UF 20% 7.5V SCREW |
0 |
|
Datasheet |
CGO | Bulk | Obsolete | 15000 µF | ±20% | 7.5 V | 15.8mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.896 A @ 120 Hz | 9.4 A @ 20 kHz | - | - | 1.375" Dia (34.93mm) | 2.125" (53.98mm) | - | Chassis Mount | |
|
|
CGO282M055LCAP ALUM 2800UF 20% 55V SCREW CH |
0 |
|
Datasheet |
CGO | Bulk | Obsolete | 2800 µF | ±20% | 55 V | 30.2mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.3 A @ 120 Hz | 7.5 A @ 20 kHz | - | - | 1.375" Dia (34.93mm) | 2.125" (53.98mm) | - | Chassis Mount | |
|
|
CGO632M028LCAP ALUM 6300UF 20% 28V SCREW CH |
0 |
|
Datasheet |
CGO | Bulk | Obsolete | 6300 µF | ±20% | 28 V | 21mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.972 A @ 120 Hz | 8.3 A @ 20 kHz | - | - | 1.375" Dia (34.93mm) | 2.125" (53.98mm) | - | Chassis Mount | |
|

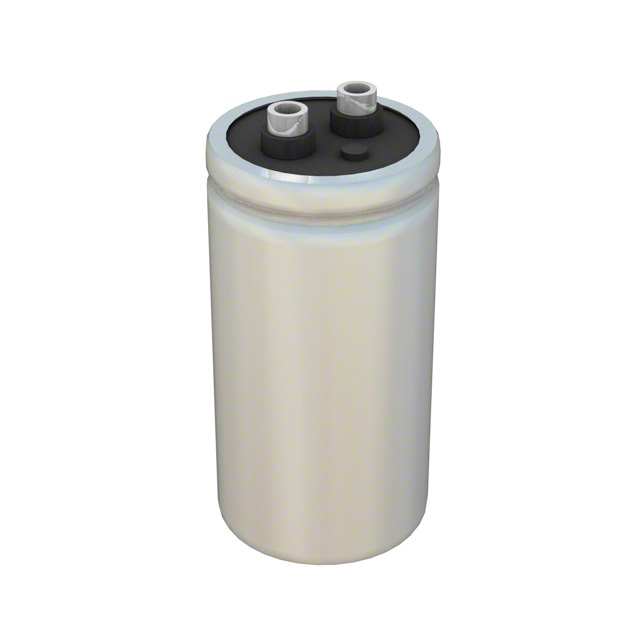

CGO882M028LCAP ALUM 8800UF 20% 28V SCREW CH |
0 |
|
Datasheet |
CGO | Bulk | Obsolete | 8800 µF | ±20% | 28 V | 17mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.316 A @ 120 Hz | 9.9 A @ 20 kHz | - | - | 1.375" Dia (34.93mm) | 2.625" (66.68mm) | - | Chassis Mount | |
|
LP101M250A1P3CAP ALUM 100UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LP | Bulk | Active | 100 µF | ±20% | 250 V | 2.5Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 410 mA @ 120 Hz | 574 mA @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|

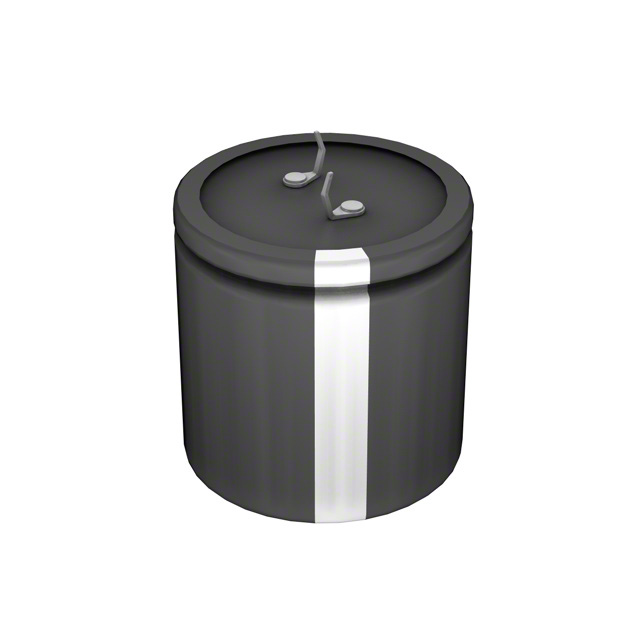

LP102M200H5P3CAP ALUM 1000UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LP | Bulk | Active | 1000 µF | ±20% | 200 V | 250mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.114 A @ 120 Hz | 2.9596 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|

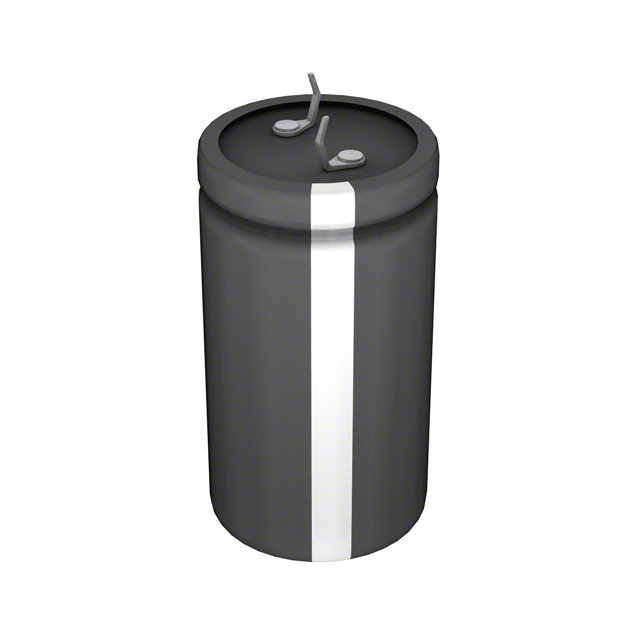

LP103M035C4P3CAP ALUM 10000UF 20% 35V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 10000 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.772" (45.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
