Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EGVD101ELL511MM30HCAP ALUM 510UF 20% 100V RADIAL |
190 |
|
Datasheet |
GVD | Bulk | Active | 510 µF | ±20% | 100 V | 38mOhm @ 100kHz | 2000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 1.9 A @ 120 Hz | 3.8 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.240" (31.50mm) | - | Through Hole | |
|
LGU1C393MELBCAP ALUM 39000UF 20% 16V SNAP TH |
656 |
|
Datasheet |
LGU | Bulk | Active | 39000 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.81 A @ 120 Hz | 5.5315 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ESMQ401VSN471MR40SCAP ALUM 470UF 20% 400V SNAP TH |
155 |
|
Datasheet |
SMQ | Bulk | Active | 470 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.39 A @ 120 Hz | 3.418 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
EKMQ451VSN331MR45SCAP ALUM 330UF 20% 450V SNAP TH |
113 |
|
Datasheet |
KMQ | Bulk | Active | 330 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.38 A @ 120 Hz | 1.9734 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ALC70A181BD450CAP ALUM 180UF 20% 450V SNAP TH |
786 |
|
Datasheet |
ALC70 | Bulk | Active | 180 µF | ±20% | 450 V | 777.7mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.22 A @ 100 Hz | 2.94 A @ 10 kHz | 437 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LAQ2D471MELB25CAP ALUM 470UF 20% 200V SNAP TH |
163 |
|
Datasheet |
LAQ | Bulk | Active | 470 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.45 A @ 120 Hz | 1.74 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|

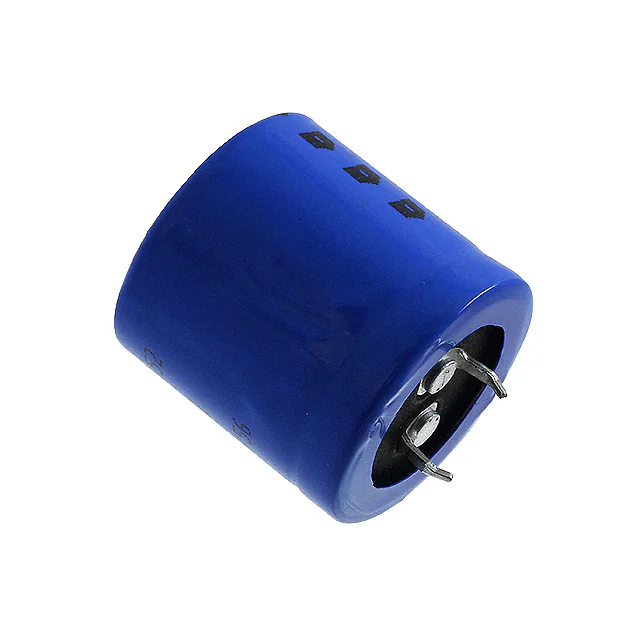

MAL205659222E3CAP ALUM 2200UF 20% 100V SNAP TH |
126 |
|
Datasheet |
056 PSM-SI | Bulk | Active | 2200 µF | ±20% | 100 V | 130mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.27 A @ 100 Hz | - | 120 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
EKMS401VSN331MP50SCAP ALUM 330UF 20% 400V SNAP TH |
603 |
|
Datasheet |
KMS | Bulk | Active | 330 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.47 A @ 120 Hz | 2.1021 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.067" (52.50mm) | - | Through Hole | |
|
SLPX181M450E1P3CAP ALUM 180UF 20% 450V SNAP TH |
1,757 |
|
Datasheet |
SLPX | Bulk | Active | 180 µF | ±20% | 450 V | 1.474Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.35 A @ 120 Hz | 1.98 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
ESMQ251VSN102MR35SCAP ALUM 1000UF 20% 250V SNAP TH |
954 |
|
Datasheet |
SMQ | Bulk | Active | 1000 µF | ±20% | 250 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.32 A @ 120 Hz | 4.98 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
|
ALC70A221CB400CAP ALUM 220UF 20% 400V SNAP TH |
592 |
|
Datasheet |
ALC70 | Bulk | Active | 220 µF | ±20% | 400 V | 615.7mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.38 A @ 100 Hz | 3.55 A @ 10 kHz | 321 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LGX2E102MELB40CAP ALUM 1000UF 20% 250V SNAP TH |
310 |
|
Datasheet |
LGX | Bulk | Active | 1000 µF | ±20% | 250 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.33 A @ 120 Hz | 3.495 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
PSU13015CAP ALUM 130UF 125V QC CHAS MT |
221 |
|
Datasheet |
PSU | Bulk | Active | 130 µF | 0%, +20% | 125 V | - | - | -40°C ~ 65°C | Bi-Polar | - | Motor Start | - | - | - | - | 1.438" Dia (36.53mm) | 2.810" (71.37mm) | - | Chassis Mount | |
|
LGN2E821MELA45CAP ALUM 820UF 20% 250V SNAP TH |
161 |
|
Datasheet |
LGN | Bulk | Active | 820 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 3 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|

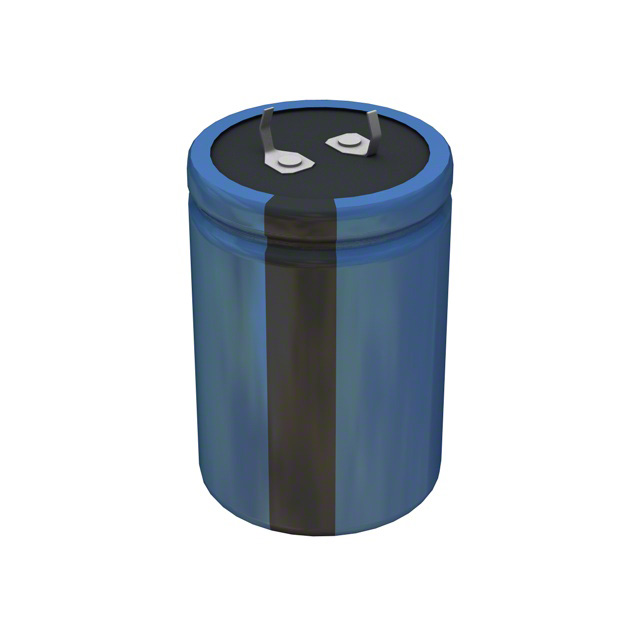

380LX822M080A052CAP ALUM 8200UF 20% 80V SNAP TH |
3,150 |
|
Datasheet |
380LX | Bulk | Active | 8200 µF | ±20% | 80 V | 40mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.8 A @ 120 Hz | 6.7 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
381LX123M035A022CAP ALUM 12000UF 20% 35V SNAP TH |
1,256 |
|
Datasheet |
381LX | Bulk | Active | 12000 µF | ±20% | 35 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.5 A @ 120 Hz | 4 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
380LX123M063A052CAP ALUM 12000UF 20% 63V SNAP TH |
434 |
|
Datasheet |
380LX | Bulk | Active | 12000 µF | ±20% | 63 V | 28mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.2 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
400VXH270MEFCSN22X45CAP ALUM 270UF 20% 400V SNAP TH |
260 |
|
Datasheet |
VXH | Bulk | Active | 270 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.56 A @ 120 Hz | 2.184 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ESMQ451VSN561MA45SCAP ALUM 560UF 20% 450V SNAP TH |
176 |
|
Datasheet |
SMQ | Bulk | Active | 560 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.82 A @ 120 Hz | 4.033 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
LLS1K562MELCCAP ALUM 5600UF 20% 80V SNAP TH |
2,372 |
|
Datasheet |
LLS | Bulk | Active | 5600 µF | ±20% | 80 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.64 A @ 120 Hz | 5.336 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole |
