Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SLPX332M100E7P3CAP ALUM 3300UF 20% 100V SNAP TH |
1,314 |
|
Datasheet |
SLPX | Bulk | Active | 3300 µF | ±20% | 100 V | 80mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.18 A @ 120 Hz | 5.23 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
LGG2D152MELC30CAP ALUM 1500UF 20% 200V SNAP TH |
891 |
|
Datasheet |
LGG | Bulk | Active | 1500 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.57 A @ 120 Hz | 3.855 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
450MXC390MEFCSN35X40CAP ALUM 390UF 20% 450V SNAP TH |
766 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 390 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.65 A @ 120 Hz | 2.31 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

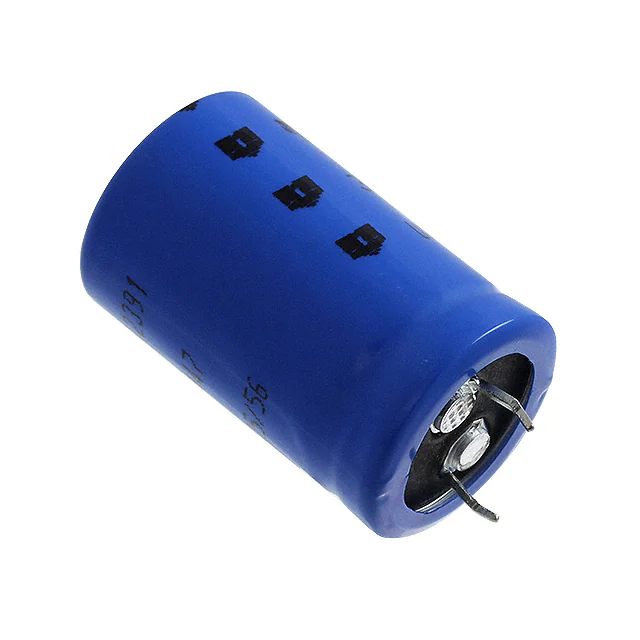

MAL215947689E3CAP ALUM 68UF 20% 450V SNAP TH |
758 |
|
Datasheet |
159 PUL-SI | Bulk | Active | 68 µF | ±20% | 450 V | 2.4Ohm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 560 mA @ 120 Hz | - | 1.53 Ohms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ESMR451VSN331MQ40SCAP ALUM 330UF 20% 450V SNAP TH |
221 |
|
Datasheet |
SMR | Bulk | Active | 330 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.11 A @ 120 Hz | 3.0173 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.673" (42.50mm) | - | Through Hole | |
|
381LR561M250K022CAP ALUM 560UF 20% 250V SNAP TH |
1,864 |
|
Datasheet |
381LR | Bulk | Active | 560 µF | ±20% | 250 V | 266mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.14 A @ 120 Hz | 3.05 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ESMQ451VSN391MR40SCAP ALUM 390UF 20% 450V SNAP TH |
249 |
|
Datasheet |
SMQ | Bulk | Active | 390 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.24 A @ 120 Hz | 3.203 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
LGY1E183MELC35CAP ALUM 18000UF 20% 25V SNAP TH |
107 |
|
Datasheet |
LGY | Bulk | Active | 18000 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.1 A @ 120 Hz | 3.565 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
B43634F2128M000CAP ALUM 1200UF 20% 250V SNAP TH |
469 |
|
Datasheet |
B43634 | Bulk | Active | 1200 µF | ±20% | 250 V | 85mOhm @ 100Hz | 8000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.42 A @ 100 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LAR2W221MELB30CAP ALUM 220UF 20% 450V SNAP TH |
200 |
|
Datasheet |
LAR | Bulk | Active | 220 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.05 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
LGG2G271MELB25CAP ALUM 270UF 20% 400V SNAP TH |
150 |
|
Datasheet |
LGG | Bulk | Active | 270 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.43 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
ALA7DA301DD550CAP ALUM 300UF 20% 550V SNAP TH |
155 |
|
Datasheet |
ALA7D | Bulk | Active | 300 µF | ±20% | 550 V | 572mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 2.1 A @ 100 Hz | 4.2 A @ 10 kHz | 396 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
450MXK180MEFCSN22X30CAP ALUM 180UF 20% 450V SNAP TH |
135 |
|
Datasheet |
MXK | Bulk | Active | 180 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.17 A @ 120 Hz | 1.638 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LGU2F681MELCCAP ALUM 680UF 20% 315V SNAP TH |
114 |
|
Datasheet |
LGU | Bulk | Active | 680 µF | ±20% | 315 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.17 A @ 120 Hz | 3.1031 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL202119681E3CAP ALUM 680UF 20% 100V AXIAL TH |
741 |
|
Datasheet |
021 ASM | Bulk | Active | 680 µF | ±20% | 100 V | 195mOhm | 8000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 1.764 A @ 10 kHz | 180 mOhms | - | 0.709" Dia x 1.496" L (18.00mm x 38.00mm) | - | - | Through Hole | |
|
ELHS501VSN221MR40SCAP ALUM 220UF 20% 500V SNAP TH |
287 |
|
Datasheet |
LHS | Bulk | Active | 220 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 1.859 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.673" (42.50mm) | - | Through Hole | |
|
ESMQ251VSN152MR50SCAP ALUM 1500UF 20% 250V SNAP TH |
213 |
|
Datasheet |
SMQ | Bulk | Active | 1500 µF | ±20% | 250 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 4.04 A @ 120 Hz | 6.06 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
LGR2D152MELC50CAP ALUM 1500UF 20% 200V SNAP TH |
186 |
|
Datasheet |
LGR | Bulk | Active | 1500 µF | ±20% | 200 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 3.75 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LGW2W271MELC30CAP ALUM 270UF 20% 450V SNAP TH |
522 |
|
Datasheet |
LGW | Bulk | Active | 270 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.9 A @ 120 Hz | 2.717 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
16MXG22000MEFCSN22X45CAP ALUM 22000UF 20% 16V SNAP TH |
179 |
|
Datasheet |
MXG | Bulk | Active | 22000 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.36 A @ 120 Hz | 3.864 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole |
