Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
400MXH330MEFCSN30X30CAP ALUM 330UF 20% 400V SNAP TH |
145 |
|
Datasheet |
MXH | Bulk | Active | 330 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | 2.17 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LGX2W181MELZ45CAP ALUM 180UF 20% 450V SNAP TH |
224 |
|
Datasheet |
LGX | Bulk | Active | 180 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 900 mA @ 120 Hz | 1.287 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LGX2W271MELC30CAP ALUM 270UF 20% 450V SNAP TH |
163 |
|
Datasheet |
LGX | Bulk | Active | 270 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.24 A @ 120 Hz | 1.7732 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LGU2W221MELACAP ALUM 220UF 20% 450V SNAP TH |
399 |
|
Datasheet |
LGU | Bulk | Active | 220 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.12 A @ 120 Hz | 1.6016 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|

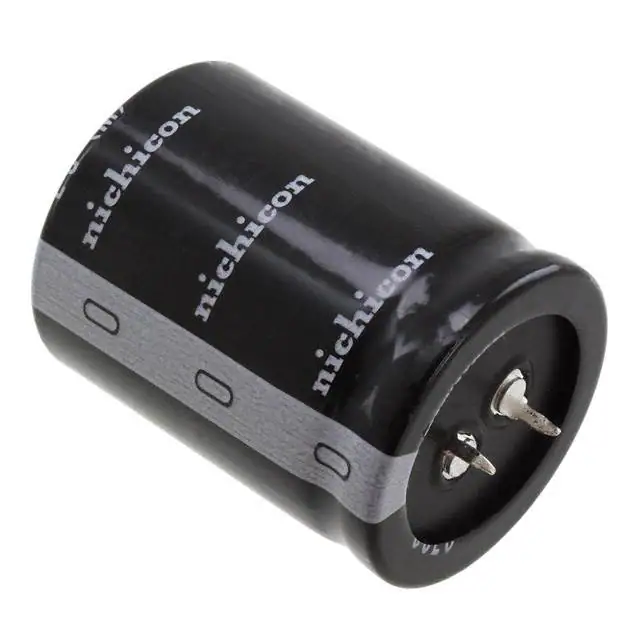

LLG2E182MELC45CAP ALUM 1800UF 20% 250V SNAP TH |
193 |
|
Datasheet |
LLG | Bulk | Active | 1800 µF | ±20% | 250 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.55 A @ 120 Hz | 6.825 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LQS2V471MELA50CAP ALUM 470UF 20% 350V SNAP TH |
134 |
|
Datasheet |
LQS | Bulk | Active | 470 µF | ±20% | 350 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 2.002 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ESMQ251VSN182MA45SCAP ALUM 1800UF 20% 250V SNAP TH |
199 |
|
Datasheet |
SMQ | Bulk | Active | 1800 µF | ±20% | 250 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 4.55 A @ 120 Hz | 6.825 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
MAL212018331E3CAP ALUM 330UF 20% 63V AXIAL TH |
310 |
|
Datasheet |
120 ATC | Bulk | Active | 330 µF | ±20% | 63 V | 105mOhm | 8000 Hrs @ 125°C | -40°C ~ 125°C | - | AEC-Q200 | Automotive | - | 2.51 A @ 10 kHz | 91 mOhms | - | 0.591" Dia x 1.181" L (15.00mm x 30.00mm) | - | - | Through Hole | |
|
LGW2D152MELB45CAP ALUM 1500UF 20% 200V SNAP TH |
186 |
|
Datasheet |
LGW | Bulk | Active | 1500 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.62 A @ 120 Hz | 6.93 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
380LQ471M400K042CAP ALUM 470UF 20% 400V SNAP TH |
2,132 |
|
Datasheet |
380LQ | Bulk | Active | 470 µF | ±20% | 400 V | 423mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.39 A @ 120 Hz | 3.35 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LAR2W221MELC25CAP ALUM 220UF 20% 450V SNAP TH |
399 |
|
Datasheet |
LAR | Bulk | Active | 220 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.05 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
PEG227MKP4110QE4CAP ALUM 1100UF 63V AXIAL TH |
165 |
|
Datasheet |
PEG227 | Tray | Active | 1100 µF | -10%, +30% | 63 V | 76mOhm @ 100Hz | 1500 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 1.995 A @ 100 Hz | 5.7 A @ 5 kHz | - | - | 0.638" Dia x 1.366" L (16.20mm x 34.70mm) | - | - | Through Hole | |
|

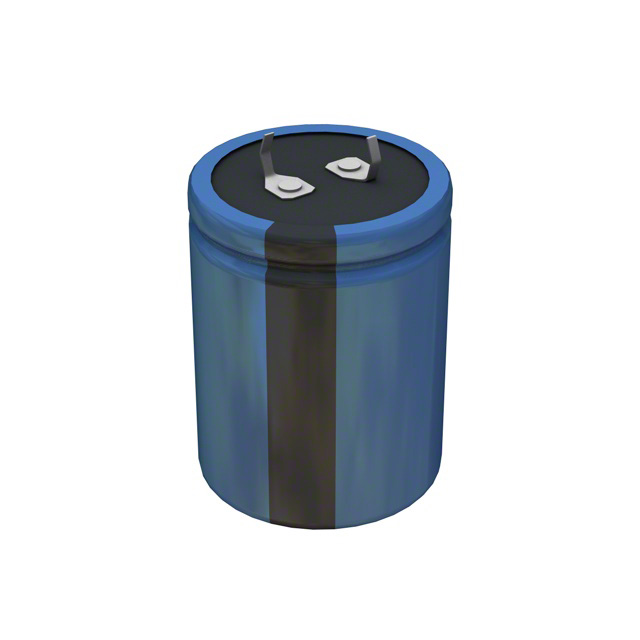

380LX562M100A452CAP ALUM 5600UF 20% 100V SNAP TH |
1,168 |
|
Datasheet |
380LX | Bulk | Active | 5600 µF | ±20% | 100 V | 60mOhm | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.8 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LLS2W271MELBCAP ALUM 270UF 20% 450V SNAP TH |
746 |
|
Datasheet |
LLS | Bulk | Active | 270 µF | ±20% | 450 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.89 A @ 120 Hz | 2.7027 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
LKX2G181MESA35CAP ALUM 180UF 20% 400V SNAP TH |
310 |
|
Datasheet |
LKX | Bulk | Active | 180 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | Audio | 950 mA @ 120 Hz | 1.3585 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LGG2E681MELZ45CAP ALUM 680UF 20% 250V SNAP TH |
309 |
|
Datasheet |
LGG | Bulk | Active | 680 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.25 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
LKX2W151MESZ45CAP ALUM 150UF 20% 450V SNAP TH |
304 |
|
Datasheet |
LKX | Bulk | Active | 150 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | Audio | 790 mA @ 120 Hz | 1.1297 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LKX2D681MESA40CAP ALUM 680UF 20% 200V SNAP TH |
191 |
|
Datasheet |
LKX | Bulk | Active | 680 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Audio | 1.75 A @ 120 Hz | 2.625 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LAR2W331MELB40CAP ALUM 330UF 20% 450V SNAP TH |
152 |
|
Datasheet |
LAR | Bulk | Active | 330 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.38 A @ 120 Hz | 1.587 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
LGL2W221MELB25CAP ALUM 220UF 20% 450V SNAP TH |
134 |
|
Datasheet |
LGL | Bulk | Active | 220 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 820 mA @ 120 Hz | 1.1726 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole |
