Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEH227KKL4150ME4CAP ALUM 1500UF 20% 40V SLD LUG |
528 |
|
Datasheet |
PEH227 | Bulk | Active | 1500 µF | ±20% | 40 V | 67mOhm @ 100Hz | 1500 Hrs @ 150°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 2.1 A @ 100 Hz | 6.24 A @ 100 kHz | - | 0.600" (15.24mm) | 0.638" Dia (16.20mm) | 1.130" (28.70mm) | - | Through Hole | |
|
|
PEH227HKL4320ME4CAP ALUM 3200UF 20% 25V SLD LUG |
518 |
|
Datasheet |
PEH227 | Bulk | Active | 3200 µF | ±20% | 25 V | 49mOhm @ 100Hz | 1500 Hrs @ 150°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 2.17 A @ 100 Hz | 6.448 A @ 100 kHz | - | 0.600" (15.24mm) | 0.638" Dia (16.20mm) | 1.130" (28.70mm) | - | Through Hole | |
|
B43501C5227M000CAP ALUM 220UF 20% 450V SNAP TH |
330 |
|
Datasheet |
B43501 | Bulk | Not For New Designs | 220 µF | ±20% | 450 V | 600mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.46 A @ 100 Hz | - | 730 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
PEH227MKL3780QE4CAP ALUM 780UF 63V SOLDER LUG TH |
528 |
|
Datasheet |
PEH227 | Bulk | Active | 780 µF | -10%, +30% | 63 V | 107mOhm @ 100Hz | 1500 Hrs @ 150°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.61 A @ 100 Hz | 4.784 A @ 100 kHz | - | 0.600" (15.24mm) | 0.638" Dia (16.20mm) | 1.130" (28.70mm) | - | Through Hole | |
|
TE1162-E3CAP ALUM 100UF 16V AXIAL TH |
420 |
|
Datasheet |
TE | Bulk | Active | 100 µF | -10%, +75% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.354" Dia x 0.807" L (9.00mm x 20.50mm) | - | - | Through Hole | |
|
LGU2F331MELCCAP ALUM 330UF 20% 315V SNAP TH |
179 |
|
Datasheet |
LGU | Bulk | Active | 330 µF | ±20% | 315 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.33 A @ 120 Hz | 1.5295 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|

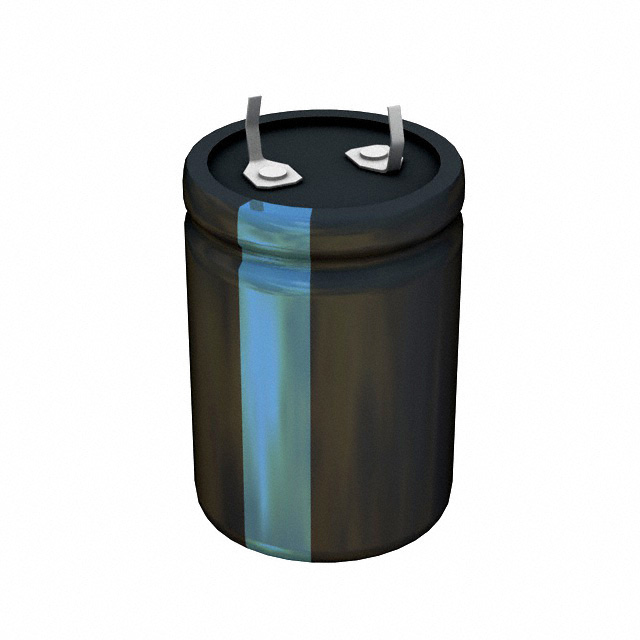

381LQ223M025J452CAP ALUM 22000UF 20% 25V SNAP TH |
3,181 |
|
Datasheet |
381LQ | Bulk | Active | 22000 µF | ±20% | 25 V | 26mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.3 A @ 120 Hz | 4.95 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
380LX392M080J452CAP ALUM 3900UF 20% 80V SNAP TH |
2,898 |
|
Datasheet |
380LX | Bulk | Active | 3900 µF | ±20% | 80 V | 80mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.6 A @ 120 Hz | 4.1 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
250MXG470MEFCSN22X40CAP ALUM 470UF 20% 250V SNAP TH |
267 |
|
Datasheet |
MXG | Bulk | Active | 470 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.94 A @ 120 Hz | 2.91 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
109LBA035M2DDCAP ALUM 10000UF 20% 35V SNAP TH |
124 |
|
Datasheet |
LBA | Bulk | Active | 10000 µF | ±20% | 35 V | 66.31mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4 A @ 120 Hz | 5 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LLG2W221MELA35CAP ALUM 220UF 20% 450V SNAP TH |
224 |
|
Datasheet |
LLG | Bulk | Active | 220 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.145 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
381LX221M400A022CAP ALUM 220UF 20% 400V SNAP TH |
225 |
|
Datasheet |
381LX | Bulk | Active | 220 µF | ±20% | 400 V | 904mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.4 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
B43508B9227M000CAP ALUM 220UF 20% 400V SNAP TH |
218 |
|
Datasheet |
B43508 | Bulk | Not For New Designs | 220 µF | ±20% | 400 V | 560mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.01 A @ 100 Hz | - | 790 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LGN2W181MELA35CAP ALUM 180UF 20% 450V SNAP TH |
355 |
|
Datasheet |
LGN | Bulk | Active | 180 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 870 mA @ 120 Hz | 1.2441 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LGN2V471MELB40CAP ALUM 470UF 20% 350V SNAP TH |
198 |
|
Datasheet |
LGN | Bulk | Active | 470 µF | ±20% | 350 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 2.002 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LGW2G271MELC25CAP ALUM 270UF 20% 400V SNAP TH |
149 |
|
Datasheet |
LGW | Bulk | Active | 270 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.12 A @ 120 Hz | 3.0316 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
LKX2W121MESA30CAP ALUM 120UF 20% 450V SNAP TH |
251 |
|
Datasheet |
LKX | Bulk | Active | 120 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | Audio | 720 mA @ 120 Hz | 1.0296 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LQS2G271MELB30CAP ALUM 270UF 20% 400V SNAP TH |
200 |
|
Datasheet |
LQS | Bulk | Active | 270 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.22 A @ 120 Hz | 1.573 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LGZ2W121MELB35CAP ALUM 120UF 20% 450V SNAP TH |
350 |
|
Datasheet |
LGZ | Bulk | Active | 120 µF | ±20% | 450 V | - | 20000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 720 mA @ 120 Hz | 1.0296 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
861111484018CAP ALUM 180UF 20% 450V SNAP TH |
183 |
|
Datasheet |
WCAP-AIL5 | Tray | Active | 180 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 930 mA @ 120 Hz | 1.2834 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.299" (33.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
