Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LGN2G391MELA50CAP ALUM 390UF 20% 400V SNAP TH |
154 |
|
Datasheet |
LGN | Bulk | Active | 390 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | 2.2165 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
B43642A2687M000CAP ALUM 680UF 20% 200V SNAP TH |
480 |
|
Datasheet |
B43642 | Bulk | Active | 680 µF | ±20% | 200 V | 120mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.86 A @ 100 Hz | - | 160 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
B43634C9277M000CAP ALUM 270UF 20% 400V SNAP TH |
330 |
|
Datasheet |
B43634 | Bulk | Active | 270 µF | ±20% | 400 V | 410mOhm @ 100Hz | 8000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.69 A @ 100 Hz | - | 620 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
B43640B5277M000CAP ALUM 270UF 20% 450V SNAP TH |
108 |
|
Datasheet |
B43640 | Bulk | Active | 270 µF | ±20% | 450 V | 360mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.23 A @ 100 Hz | - | 550 mOhms | 0.394" (10.00mm) | - | - | - | Through Hole | |
|

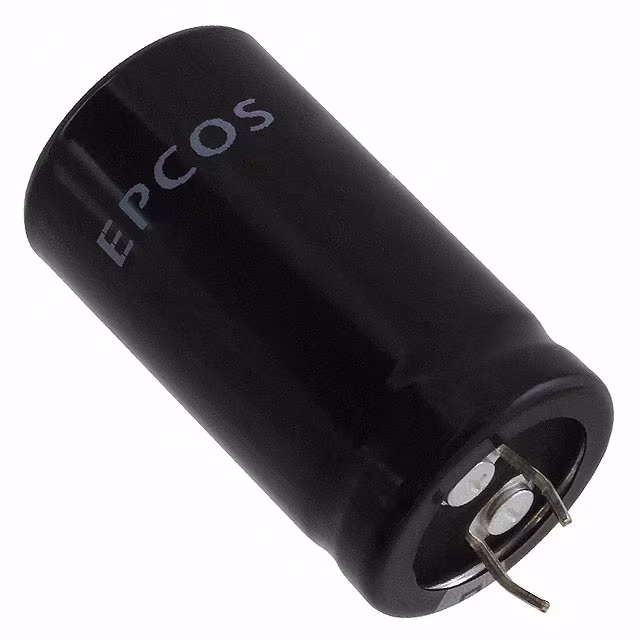

B43508E2477M000CAP ALUM 470UF 20% 250V SNAP TH |
246 |
|
Datasheet |
B43508 | Bulk | Not For New Designs | 470 µF | ±20% | 250 V | 250mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.49 A @ 100 Hz | - | 340 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
B43508A5157M000CAP ALUM 150UF 20% 450V SNAP TH |
536 |
|
Datasheet |
B43508 | Bulk | Not For New Designs | 150 µF | ±20% | 450 V | 820mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 880 mA @ 100 Hz | - | 1.15 Ohms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LAR2W271MELB35CAP ALUM 270UF 20% 450V SNAP TH |
159 |
|
Datasheet |
LAR | Bulk | Active | 270 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.23 A @ 120 Hz | 1.4145 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
B43254C9337M000CAP ALUM 330UF 20% 400V SNAP TH |
256 |
|
Datasheet |
B43254 | Bulk | Not For New Designs | 330 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.33 A @ 120 Hz | 2.062 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
450LXW150MEFR16X45CAP ALUM 150UF 20% 450V RADIAL |
207 |
|
Datasheet |
LXW | Bulk | Active | 150 µF | ±20% | 450 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 980 mA @ 120 Hz | 1.96 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
EKMR401VSN271MR25SCAP ALUM 270UF 20% 400V SNAP TH |
102 |
|
Datasheet |
KMR | Bulk | Active | 270 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.16 A @ 120 Hz | 1.6588 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.083" (27.50mm) | - | Through Hole | |
|
|
LGN2D122MELA50CAP ALUM 1200UF 20% 200V SNAP TH |
178 |
|
Datasheet |
LGN | Bulk | Active | 1200 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.65 A @ 120 Hz | 3.975 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
381LX822M050K452CAP ALUM 8200UF 20% 50V SNAP TH |
940 |
|
Datasheet |
381LX | Bulk | Active | 8200 µF | ±20% | 50 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.6 A @ 120 Hz | 4.1 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
400MXG330MEFCSN25X45CAP ALUM 330UF 20% 400V SNAP TH |
354 |
|
Datasheet |
MXG | Bulk | Active | 330 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.76 A @ 120 Hz | 2.464 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
B43509A9477M000CAP ALUM 470UF 20% 400V SNAP TH |
303 |
|
Datasheet |
B43509 | Bulk | Active | 470 µF | ±20% | 400 V | 180mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.13 A @ 100 Hz | - | 260 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.244" (57.00mm) | - | Through Hole | |
|
TE1105-E3CAP ALUM 250UF 6V AXIAL TH |
296 |
|
Datasheet |
TE | Bulk | Active | 250 µF | -10%, +75% | 6 V | - | 2000 Hrs @ 85°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.354" Dia x 0.945" L (9.00mm x 24.00mm) | - | - | Through Hole | |
|
LGU2W181MELZCAP ALUM 180UF 20% 450V SNAP TH |
223 |
|
Datasheet |
LGU | Bulk | Active | 180 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.43 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
LLG2E122MELB40CAP ALUM 1200UF 20% 250V SNAP TH |
191 |
|
Datasheet |
LLG | Bulk | Active | 1200 µF | ±20% | 250 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.84 A @ 120 Hz | 5.76 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LGN2W271MELC30CAP ALUM 270UF 20% 450V SNAP TH |
195 |
|
Datasheet |
LGN | Bulk | Active | 270 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.23 A @ 120 Hz | 1.7589 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
381LX222M100A022CAP ALUM 2200UF 20% 100V SNAP TH |
1,180 |
|
Datasheet |
381LX | Bulk | Active | 2200 µF | ±20% | 100 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.6 A @ 120 Hz | 3.9 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

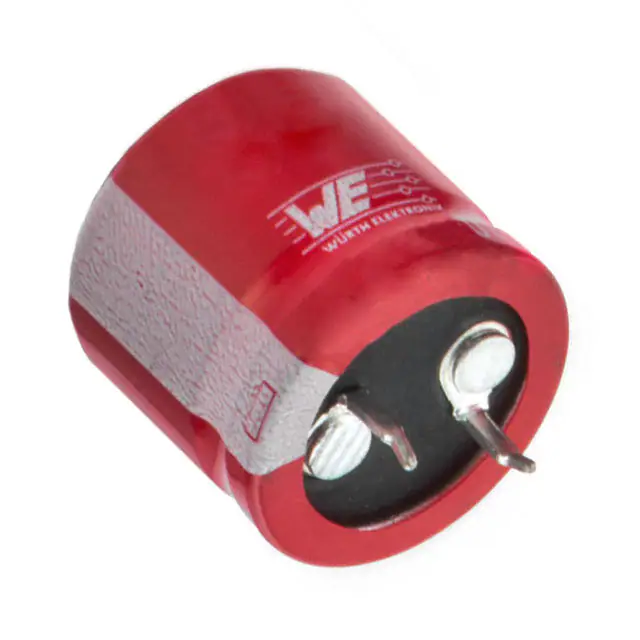

861021486028CAP ALUM 180UF 20% 450V SNAP TH |
130 |
|
Datasheet |
WCAP-AIG5 | Tray | Active | 180 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.14 A @ 120 Hz | 1.5732 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.339" (34.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
